E34 524td M21 Sedan / Engine/ Cylinder Head
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

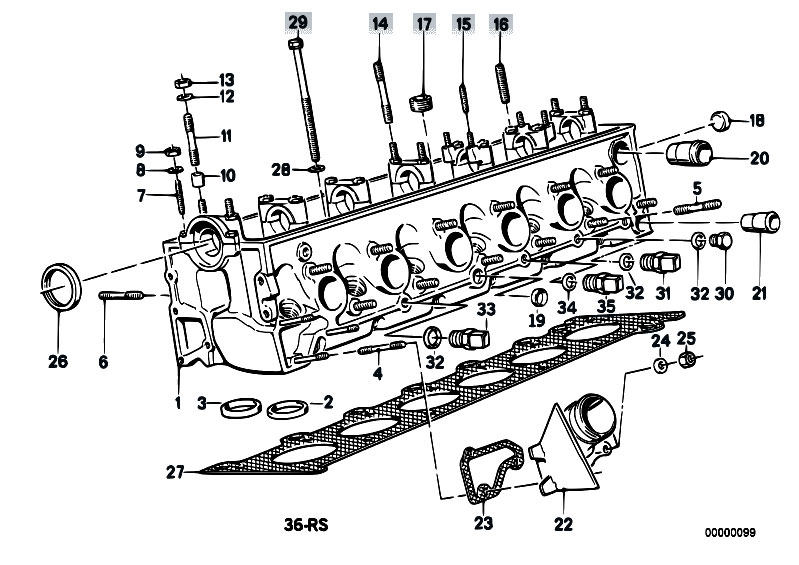

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11121275553 | Original OEM part | 0.100 kg | 2,420.57 €2,420.57 $ | ||||
| 1 | 11121766568 | Original OEM part | 0.100 kg | 3,065.33 €3,065.33 $ | ||||
| 2 | 11121275874 | Original OEM part | 0.100 kg | 13.80 €13.80 $ | ||||
| 3 | 11121275877 | Original OEM part | 0.100 kg | 22.88 €22.88 $ | ||||
| 4 | 07129908104 | Stud bolt | M6X40 | 0.007 kg | 8.85 €8.85 $ | |||
| 5 | 07129901790 | Stud bolt | M8X45-ZNS | 0.014 kg | 0.43 €0.43 $ | |||
| 5 | 07129903965 | Stud bolt | M8X45-8.8-ZNS3 | 0.013 kg | 3.65 €3.65 $ | |||
| 6 | 11127791553 | Stud bolt | M8X55 | 0.020 kg | 1.72 €1.72 $ | |||
| 7 | 07129908104 | Stud bolt | M6X40 | 0.007 kg | 8.85 €8.85 $ | |||
| 8 | 07119932099 | WAVE WASHER | B6 | 0.000 kg | 0.41 €0.41 $ | |||
| 9 | 07119905543 | Hex nut | M6 | 0.000 kg | 0.20 €0.20 $ | |||
| 10 | 11121726238 | Dowel | D=10,5MM | 0.000 kg | 1.01 €1.01 $ | |||
| 11 | 11121285815 | Original OEM part | 0.100 kg | 9.12 €9.12 $ | ||||
| 12 | 07119932095 | WAVE WASHER | B8 | 0.001 kg | 0.04 €0.04 $ | |||
| 13 | 07119922856 | Hex nut | M8-ZNS | 0.005 kg | 0.33 €0.33 $ | |||
| 14 | 11121285816 | Original OEM part | 0.100 kg | 1.43 €1.43 $ | ||||
| 15 | 07129908103 | Stud bolt | M6X35-ZN | 0.006 kg | 4.01 €4.01 $ | |||
| 16 | 07129908137 | Original OEM part | 0.100 kg | 0.72 €0.72 $ | ||||
| 17 | 07119919025 | Screw plug | M20X1,5 | 0.018 kg | 0.53 €0.53 $ | |||
| 18 | 07119937275 | Original OEM part | 0.100 kg | 0.82 €0.82 $ | ||||
| 19 | 07119937293 | Cover lid | D=28MM | 0.012 kg | 0.52 €0.52 $ | |||
| 20 | 11121279423 | Original OEM part | 0.100 kg | 9.03 €9.03 $ | ||||
| 21 | 11121279997 | Original OEM part | 0.100 kg | 8.18 €8.18 $ | ||||
| 22 | 11122241452 | Original OEM part | 0.100 kg | 81.45 €81.45 $ | ||||
| 23 | 11121279082 | Original OEM part | 0.100 kg | 4.81 €4.81 $ | ||||
| 24 | 07119932099 | WAVE WASHER | B6 | 0.000 kg | 0.41 €0.41 $ | |||
| 25 | 07119905543 | Hex nut | M6 | 0.000 kg | 0.20 €0.20 $ | |||
| 26 | 11121285609 | Shaft seal | 38X50X7 | 0.002 kg | 24.30 €24.30 $ | |||
| 27 | 11122244727 | Original OEM part | 0.100 kg | 175.92 €175.92 $ | ||||
| 27 | 11122244728 | Original OEM part | 0.100 kg | 175.92 €175.92 $ | ||||
| 27 | 11122244729 | Original OEM part | 0.100 kg | 175.92 €175.92 $ | ||||
| 28 | 11121275801 | Original OEM part | 0.100 kg | 1.54 €1.54 $ | ||||
| 29 | 11122243143 | Original OEM part | 0.100 kg | 6.41 €6.41 $ | ||||
| 30 | 07119919228 | Screw plug | AM14X1,5 | 0.028 kg | 1.13 €1.13 $ | |||
| 31 | 12632241342 | Original OEM part | 0.100 kg | 45.60 €45.60 $ | ||||
| 32 | 07119963201 | Gasket ring | A14X18-CU | 0.001 kg | 0.47 €0.47 $ | |||
| 33 | 12622242630 | Original OEM part | 0.100 kg | 29.75 €29.75 $ | ||||
| 34 | 07119963129 | Gasket ring | A12X15-CU | 0.000 kg | 0.47 €0.47 $ | |||
| 35 | 12621288158 | Temperature sensor, water | M14X1,5 | 0.035 kg | 49.77 €49.77 $ | |||
| 35 | 13622242184 | Temperature sensor, water | M12X1,5 | 0.029 kg | 51.87 €51.87 $ | |||
| 36 | 11122243879 | Original OEM part | 0.100 kg | 212.23 €212.23 $ |
