E46 330Cd M57N Coupe / Rear Axle/ Differential Drive Output
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

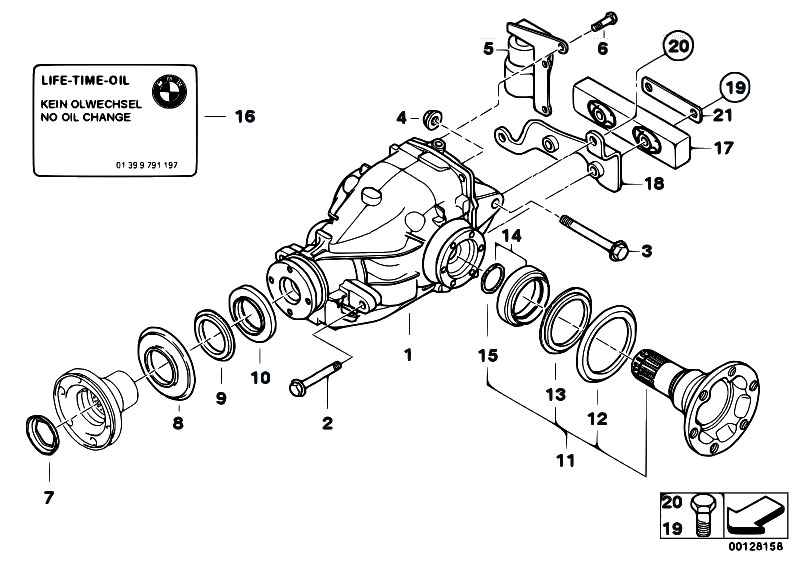

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 33107526154 | Rmfd final drive | I=2,47 | 41.080 kg | 2,579.18 €2,579.18 $ | |||
| 1 | 33101428918 | Rmfd final drive | I=2,81 | 38.222 kg | 2,579.18 €2,579.18 $ | |||
| 2 | 33176750780 | Hex Bolt with washer | M12X1,5X80 ZNS | 0.090 kg | 1.27 €1.27 $ | |||
| 2 | 33176760337 | Hex Bolt with washer | M12X1,5X80 ZNS3 | 0.080 kg | 7.20 €7.20 $ | |||
| 3 | 33171094392 | Hex Bolt with washer | M14X1,5X133 ZNS | 0.210 kg | 15.81 €15.81 $ | |||
| 3 | 33176760336 | Hex Bolt with washer | M14X1,5X133ZNS3 | 0.210 kg | 14.07 €14.07 $ | |||
| 4 | 31121092110 | Original OEM part | 0.100 kg | 0.82 €0.82 $ | ||||
| 4 | 33306760349 | Self-locking collar nut | M14X1,5-10 ZNS3 | 0.040 kg | 3.69 €3.69 $ | |||
| 7 | 33121205138 | Securing plate | 0.010 kg | 3.27 €3.27 $ | ||||
| 8 | 33127518511 | dustcover plate, large | 0.050 kg | 6.24 €6.24 $ | ||||
| 9 | 33121214064 | dustcover plate, small | 0.020 kg | 12.04 €12.04 $ | ||||
| 10 | 33101213412 | Shaft seal | 50X78X10/15 | 0.041 kg | 24.31 €24.31 $ | |||
| 10 | 33121214443 | Shaft seal | 50X78X10/15 | 0.040 kg | 25.46 €25.46 $ | |||
| 11 | 33137501525 | Drive flange output | LK=94MM/M10 | 1.602 kg | 74.91 €74.91 $ | |||
| 12 | 33131214445 | dustcover plate, large | 0.060 kg | 12.04 €12.04 $ | ||||
| 13 | 33131214446 | dustcover plate, small | 0.040 kg | 13.18 €13.18 $ | ||||
| 14 | 33107505605 | Shaft seal with lock ring | 100X50X10 | 0.077 kg | 19.23 €19.23 $ | |||
| 15 | 33131213997 | Lock Ring | TYP 215K/220K | 0.000 kg | 1.24 €1.24 $ | |||
| 16 | 01399791197 | Stick-on label | DE, EN | 0.009 kg | 3.62 €3.62 $ | |||
| 17 | 33107527830 | Vibration absorber | 0.762 kg | 136.05 €136.05 $ | ||||
| 18 | 33117527828 | Bracket, vibration absorber | 0.297 kg | 29.59 €29.59 $ | ||||
| 19 | 07119903184 | Hex Bolt with washer | M10X45-Z1-ZNS | 0.037 kg | 1.60 €1.60 $ | |||
| 19 | 07119903230 | Original OEM part | 0.100 kg | 1.44 €1.44 $ | ||||
| 20 | 07119902902 | Hex Bolt | M10X30-8.8-ZNS3 | 0.025 kg | 1.03 €1.03 $ | |||
| 21 | 33107530704 | Securing plate | 0.026 kg | 9.80 €9.80 $ |
