E36 M3 S50 Sedan / Engine/ Intake Manifold System
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

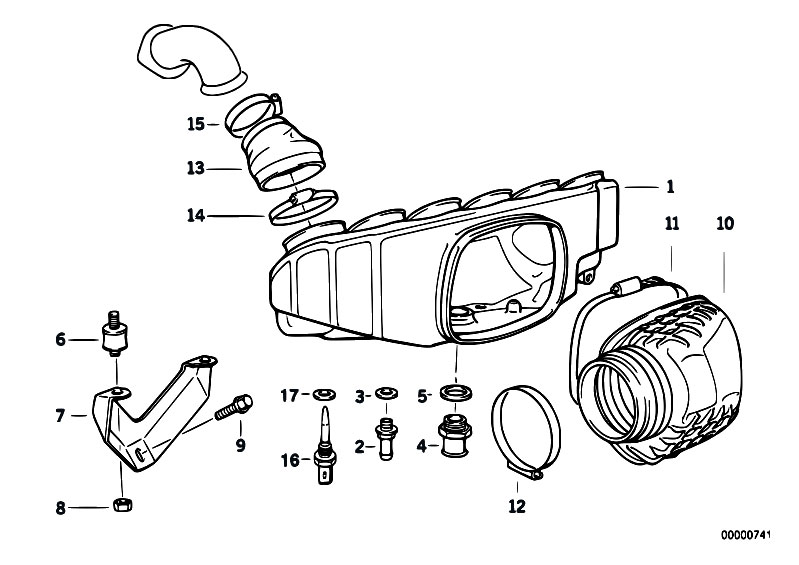

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11611401116 | AIR COLLECTOR | 2.258 kg | 867.78 €867.78 $ | ||||
| 2 | 11121307249 | Connector | 0.014 kg | 22.57 €22.57 $ | ||||
| 3 | 07119963072 | Gasket ring | A10X13,5-CU | 0.000 kg | 0.32 €0.32 $ | |||
| 4 | 11611401101 | Connector | 27X1 | 0.069 kg | 22.57 €22.57 $ | |||
| 5 | 07119963441 | Gasket ring | A27X32-AL | 0.001 kg | 0.71 €0.71 $ | |||
| 6 | 13711272495 | Rubber mounting | 0.050 kg | 19.52 €19.52 $ | ||||
| 7 | 11611401583 | Bracket | 0.254 kg | 45.18 €45.18 $ | ||||
| 8 | 07129900644 | Hex nut with plate | AM8-ZNS | 0.007 kg | 0.31 €0.31 $ | |||
| 8 | 07129904862 | Hex nut with plate | M8-ZNS3 | 0.010 kg | 1.56 €1.56 $ | |||
| 9 | 07119915071 | Hex Bolt with washer | M8X16-Z3-2 | 0.018 kg | 2.95 €2.95 $ | |||
| 10 | 11611401996 | Air duct | 0.618 kg | 190.86 €190.86 $ | ||||
| 11 | 11611318378 | Hose clamp | L190-210 | 0.043 kg | 8.74 €8.74 $ | |||
| 12 | 07129952137 | Hose clamp | L95-102 | 0.030 kg | 3.18 €3.18 $ | |||
| 13 | 11611317167 | Hose | 0.073 kg | 18.31 €18.31 $ | ||||
| 14 | 07129952133 | Hose clamp | L83-90 | 0.021 kg | 2.92 €2.92 $ | |||
| 15 | 07129952127 | Hose clamp | L65-72 | 0.020 kg | 2.54 €2.54 $ | |||
| 16 | 13621725323 | Temperature sensor air | 2500-OHM | 0.027 kg | 32.40 €32.40 $ | |||
| 17 | 07119963130 | Gasket ring | A12X15,5 CU | 0.000 kg | 0.36 €0.36 $ |
