E38 L7 M73 Sedan / Engine/ Oil Pan Oil Level Indicator
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

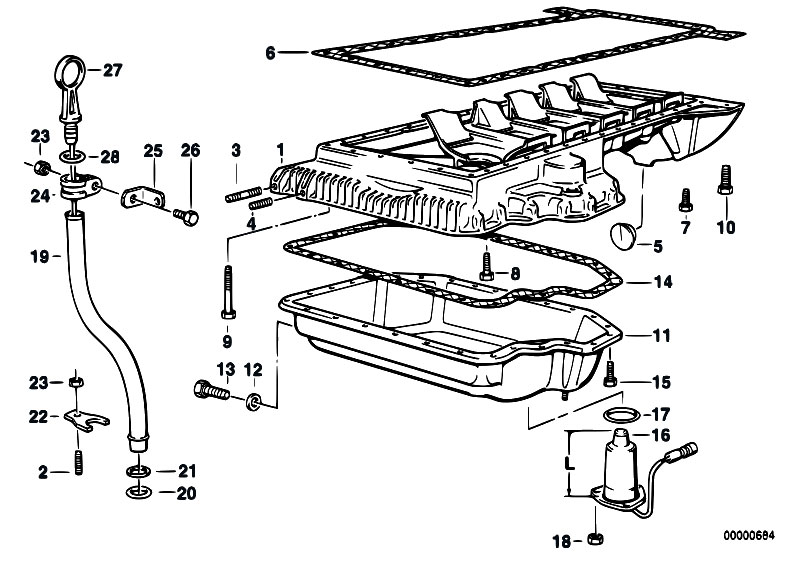

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11131742897 | Oil pan upper part | 5.688 kg | 1,148.60 €1,148.60 $ | ||||
| 1 | 11131742897 | Oil pan upper part | 5.688 kg | 1,148.60 €1,148.60 $ | ||||
| 2 | 07129908100 | Stud bolt | M6X25-ZN | 0.000 kg | 1.68 €1.68 $ | |||
| 3 | 07129908133 | Stud bolt | M8X40-ZN | 0.012 kg | 0.92 €0.92 $ | |||
| 4 | 07129908147 | Stud bolt | M8X28 | 0.008 kg | 1.61 €1.61 $ | |||
| 5 | 11131731178 | Cover | 0.018 kg | 30.17 €30.17 $ | ||||
| 6 | 11131702047 | Gasket Asbestos Free | 0.045 kg | 28.30 €28.30 $ | ||||
| 7 | 07119901685 | Hex Bolt with washer | M6X20-Z1 | 0.007 kg | 0.43 €0.43 $ | |||
| 8 | 07119912327 | Hex Bolt | M6X45 | 0.011 kg | 0.43 €0.43 $ | |||
| 9 | 07119913001 | Hex Bolt with washer | M6X60-Z3 | 0.014 kg | 0.35 €0.35 $ | |||
| 9 | 07119912351 | Hex Bolt | M6X60 | 0.014 kg | 0.58 €0.58 $ | |||
| 10 | 07119915082 | Hex Bolt with washer | M8X25-Z3 | 0.014 kg | 0.99 €0.99 $ | |||
| 11 | 11131704393 | Oil pan | 2.418 kg | 375.39 €375.39 $ | ||||
| 12 | 07119963151 | Gasket ring | A12X17-CU | 0.000 kg | 0.53 €0.53 $ | |||
| 13 | 11131742994 | Screw plug | M12X1,5 | 0.010 kg | 2.61 €2.61 $ | |||
| 14 | 11131741117 | Gasket Asbestos Free | 0.190 kg | 79.64 €79.64 $ | ||||
| 15 | 11131439736 | Hex Bolt with washer | M6X20 | 0.007 kg | 2.57 €2.57 $ | |||
| 16 | 12611406609 | Oil levelling sensor | 0.113 kg | 230.72 €230.72 $ | ||||
| 16 | 12617508003 | Oil levelling sensor | 0.091 kg | 215.36 €215.36 $ | ||||
| 17 | 12611744292 | Gasket ring | 0.000 kg | 6.19 €6.19 $ | ||||
| 18 | 07119900398 | Hex nut | M6-ZNS | 0.004 kg | 0.17 €0.17 $ | |||
| 18 | 07119905544 | Hex nut | M6-8-ZNNIV SI | 0.000 kg | 0.40 €0.40 $ | |||
| 19 | 11431742901 | Guide tube | 0.216 kg | 76.91 €76.91 $ | ||||
| 20 | 11431707164 | O-ring | 15,0X5,0 | 0.002 kg | 5.10 €5.10 $ | |||
| 21 | 11431715614 | Washer | 0.003 kg | 4.55 €4.55 $ | ||||
| 22 | 11437500374 | Bracket | 0.025 kg | 1.66 €1.66 $ | ||||
| 23 | 07129900681 | Hex nut with plate | AM6-ZNS | 0.003 kg | 0.22 €0.22 $ | |||
| 23 | 07129904553 | Hex nut with plate | AM6-8-ZNNIV SI | 0.000 kg | 0.74 €0.74 $ | |||
| 24 | 61131355966 | Clamp | D=16/6,4 | 0.010 kg | 1.41 €1.41 $ | |||
| 25 | 11431715631 | Shackle | 0.010 kg | 0.92 €0.92 $ | ||||
| 26 | 07119913410 | Hex Bolt | M6X14 | 0.004 kg | 1.86 €1.86 $ | |||
| 27 | 11431741615 | Dipstick | 0.035 kg | 29.03 €29.03 $ | ||||
| 28 | 11431717666 | O-ring | 9X2,2 | 0.000 kg | 1.00 €1.00 $ |
