E46 M3 S54 Coupe / Engine/ Lubrication System Oil Pump With Drive
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

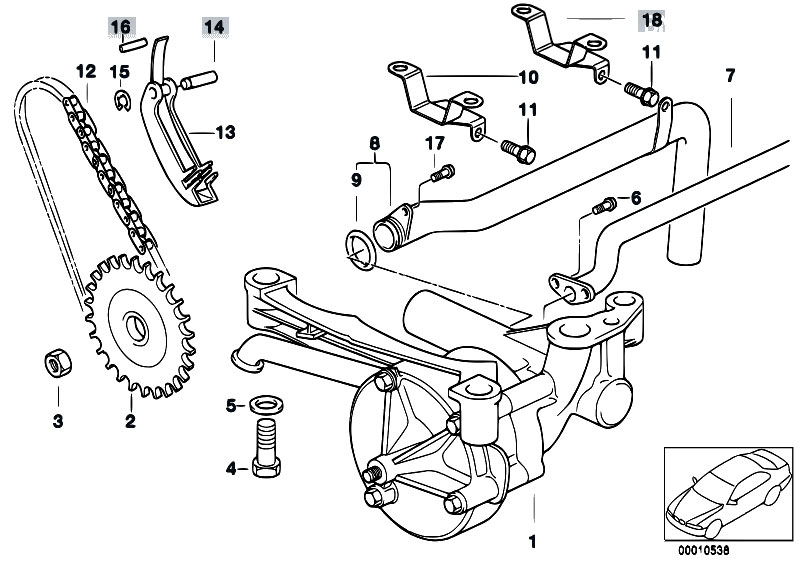

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11417834308 | Oil pump | 1.553 kg | 486.04 €486.04 $ | ||||
| 1 | 11417835324 | Oil pump | 1.534 kg | 498.44 €498.44 $ | ||||
| 1 | 11417836993 | Oil pump | 1.534 kg | 504.63 €504.63 $ | ||||
| 1 | 11417838123 | Oil pump | 1.530 kg | 666.87 €666.87 $ | ||||
| 2 | 11411317284 | Sprocket | 0.182 kg | 52.28 €52.28 $ | ||||
| 3 | 11411735137 | Hex nut | M10X1-LH | 0.010 kg | 0.31 €0.31 $ | |||
| 3 | 07119905857 | Hex nut | M10X1-LH | 0.010 kg | 0.43 €0.43 $ | |||
| 4 | 07119901519 | Fillister head screw | M8X45-Z0 | 0.022 kg | 3.93 €3.93 $ | |||
| 4 | 07129905540 | Fillister head screw | M8X45 | 0.022 kg | 4.83 €4.83 $ | |||
| 6 | 07119900452 | Fillister head with washer | M5X16-Z1 | 0.000 kg | 0.24 €0.24 $ | |||
| 6 | 07129903041 | Fillister head with washer | M5X16 | 0.000 kg | 3.60 €3.60 $ | |||
| 7 | 11411405215 | Return pipe | 0.165 kg | 101.23 €101.23 $ | ||||
| 7 | 11417834889 | Return pipe | 0.160 kg | 101.23 €101.23 $ | ||||
| 8 | 11411406405 | Suction pipe | 0.251 kg | 91.62 €91.62 $ | ||||
| 8 | 11417834887 | Suction pipe | 0.251 kg | 299.62 €299.62 $ | ||||
| 9 | 11411401769 | O-ring | 0.000 kg | 6.24 €6.24 $ | ||||
| 10 | 11411405847 | Bracket Oil Pipe | 0.070 kg | 34.64 €34.64 $ | ||||
| 11 | 07119900250 | Hex Bolt with washer | M6X16-Z1-ZNS | 0.004 kg | 0.13 €0.13 $ | |||
| 12 | 11411401399 | Chain | 0.200 kg | 68.61 €68.61 $ | ||||
| 13 | 11411317650 | CHAIN TENSIONER | 0.030 kg | 21.81 €21.81 $ | ||||
| 14 | 11111706500 | Bearing bolt | 0.010 kg | 11.50 €11.50 $ | ||||
| 15 | 07119932842 | Circlip | 6,0 | 0.001 kg | 0.04 €0.04 $ | |||
| 15 | 07119905695 | Circlip | 6,0-ZNS3 | 0.000 kg | 1.07 €1.07 $ | |||
| 16 | 07119942169 | Dowel pin | 6X32 | 0.000 kg | 1.07 €1.07 $ | |||
| 17 | 07119900452 | Fillister head with washer | M5X16-Z1 | 0.000 kg | 0.24 €0.24 $ | |||
| 17 | 07129903041 | Fillister head with washer | M5X16 | 0.000 kg | 3.60 €3.60 $ | |||
| 18 | 11411404645 | Bracket Oil Pipe | 0.070 kg | 34.64 €34.64 $ |
