OB
E46 M3 S54 Coupe / Engine/ Timing And Valve Train Timing Chain 2
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

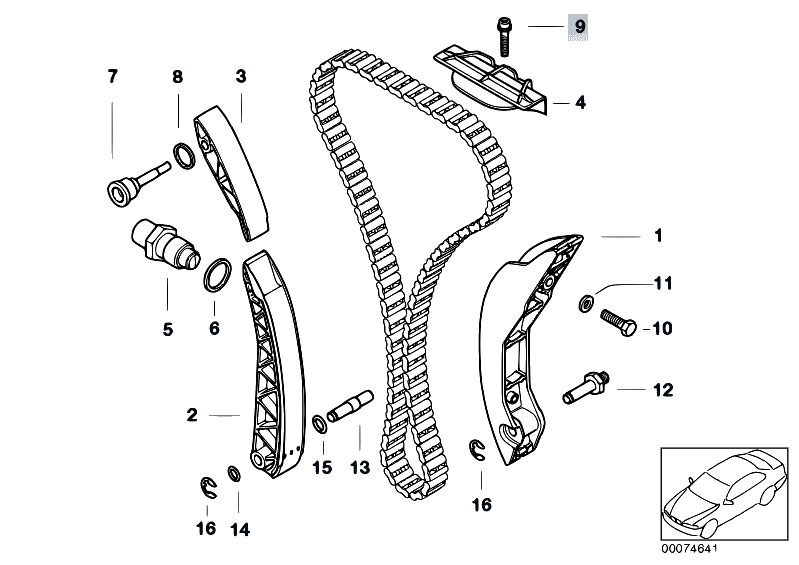

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11317830569 | SLIDE RAIL-TWIN CHAIN | 0.339 kg | 51.64 €51.64 $ | ||||
| 2 | 11317830557 | CHAIN TENSIONER-TWIN CHAIN | 0.089 kg | 23.27 €23.27 $ | ||||
| 2 | 11317836441 | CHAIN TENSIONER-TWIN CHAIN | 0.100 kg | 37.84 €37.84 $ | ||||
| 3 | 11317830159 | CHAIN TENSIONER | 0.030 kg | 37.84 €37.84 $ | ||||
| 4 | 11317830867 | SLIDE RAIL-TWIN CHAIN | 0.043 kg | 12.58 €12.58 $ | ||||
| 4 | 11317836344 | SLIDE RAIL-TWIN CHAIN | 0.040 kg | 51.64 €51.64 $ | ||||
| 5 | 11311404438 | CHAIN TENSIONER | 0.205 kg | 99.07 €99.07 $ | ||||
| 5 | 11317838675 | CHAIN TENSIONER | 0.210 kg | 214.22 €214.22 $ | ||||
| 6 | 07119963418 | Gasket ring | A26X31-AL | 0.000 kg | 0.73 €0.73 $ | |||
| 7 | 11317830377 | Bearing bolt | 0.053 kg | 36.66 €36.66 $ | ||||
| 8 | 07119963342 | Gasket ring | A20X24-CU | 0.000 kg | 0.67 €0.67 $ | |||
| 9 | 07119900847 | Fillister head screw | M6X30-8.8-ZNS | 0.008 kg | 0.27 €0.27 $ | |||
| 9 | 07129905386 | Fillister head screw | M6X30 | 0.008 kg | 1.00 €1.00 $ | |||
| 10 | 11111736005 | Collar screw | M8X31 | 0.020 kg | 3.11 €3.11 $ | |||
| 11 | 07119903546 | Gasket ring | A8X13 | 0.000 kg | 0.46 €0.46 $ | |||
| 12 | 11317830763 | Bearing bolt | 0.040 kg | 28.94 €28.94 $ | ||||
| 13 | 11317830727 | Bearing bolt | 0.053 kg | 36.66 €36.66 $ | ||||
| 14 | 11317830765 | O-ring | 6,7X1,78MM | 0.001 kg | 5.30 €5.30 $ | |||
| 15 | 07119906328 | O-ring | 10X2 | 0.001 kg | 0.35 €0.35 $ | |||
| 16 | 07119932852 | Circlip | 7,0 | 0.001 kg | 0.04 €0.04 $ | |||
| 16 | 07119905858 | Circlip | 7,0 | 0.001 kg | 1.83 €1.83 $ |
