E30 316i M40 Touring / Engine/ Wheel Casing
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

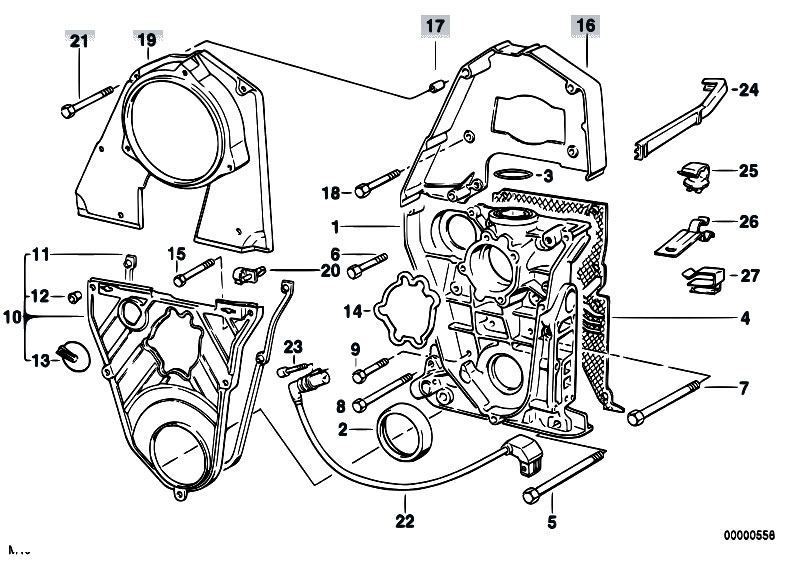

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11141714616 | Original OEM part | 0.100 kg | 332.49 €332.49 $ | ||||
| 2 | 11141714617 | Shaft seal | 42X52X8 | 0.010 kg | 23.59 €23.59 $ | |||
| 3 | 11141714554 | O-ring | 35,0X5,0 | 0.005 kg | 9.27 €9.27 $ | |||
| 3 | 11141721904 | O-ring | +0,30 | 0.005 kg | 8.30 €8.30 $ | |||
| 4 | 11141734342 | Gasket Asbestos Free | 0.118 kg | 10.69 €10.69 $ | ||||
| 5 | 07119902176 | Hex Bolt with washer | M8X60-Z1-ZNS | 0.030 kg | 5.10 €5.10 $ | |||
| 6 | 07119915093 | Hex Bolt with washer | M8X20-Z1 | 0.010 kg | 0.60 €0.60 $ | |||
| 7 | 07119913339 | Hex Bolt with washer | M6X50-Z1-ZN | 0.012 kg | 0.58 €0.58 $ | |||
| 8 | 07119901943 | Hex Bolt with washer | M6X30-Z1-ZNS | 0.009 kg | 0.29 €0.29 $ | |||
| 9 | 07119913215 | Hex Bolt with washer | M6X18-Z1 | 0.007 kg | 0.35 €0.35 $ | |||
| 10 | 11141739360 | Cover | 0.355 kg | 102.78 €102.78 $ | ||||
| 11 | 11141715329 | Profile-gasket | 0.014 kg | 14.79 €14.79 $ | ||||
| 12 | 11141715330 | Bush | 0.002 kg | 0.84 €0.84 $ | ||||
| 13 | 11141715316 | Cover lid | 0.004 kg | 9.58 €9.58 $ | ||||
| 14 | 11141715334 | Profile-gasket | 0.000 kg | 19.54 €19.54 $ | ||||
| 15 | 07119913477 | Hex Bolt | M6X20 | 0.005 kg | 0.32 €0.32 $ | |||
| 16 | 11141734293 | TIMING CASE UPPER PART | 0.350 kg | 83.06 €83.06 $ | ||||
| 17 | 11121726242 | Dowel | D=8,5X9MM | 0.000 kg | 1.04 €1.04 $ | |||
| 18 | 07119915046 | Hex Bolt with washer | M6X25-Z3 | 0.006 kg | 0.82 €0.82 $ | |||
| 19 | 11141715436 | COVER F.DISTRIBUTOR | 0.276 kg | 59.40 €59.40 $ | ||||
| 20 | 11141717656 | Cable holder | 0.000 kg | 5.31 €5.31 $ | ||||
| 21 | 07119915046 | Hex Bolt with washer | M6X25-Z3 | 0.006 kg | 0.82 €0.82 $ | |||
| 22 | 12141720854 | Original OEM part | 0.100 kg | 116.55 €116.55 $ | ||||
| 23 | 07119920067 | Fillister head with washer | M6X16-Z1 | 0.004 kg | 1.26 €1.26 $ | |||
| 24 | 12141717574 | Bracket | 0.008 kg | 10.64 €10.64 $ | ||||
| 25 | 12141715092 | Bracket | 0.001 kg | 3.66 €3.66 $ | ||||
| 26 | 12141717663 | Cable holder | 0.001 kg | 8.45 €8.45 $ | ||||
| 27 | 12511717908 | Cable holder | 0.000 kg | 1.37 €1.37 $ |
