E30 M3 S14 Cabrio / Engine/ Timing And Valve Train Timing Chain
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

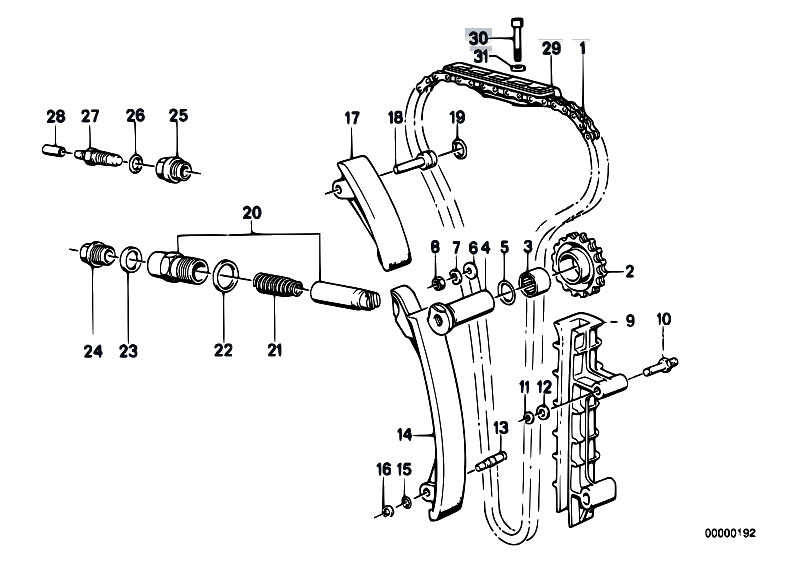

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11311403081 | TIMING CHAIN | 0.936 kg | 136.09 €136.09 $ | ||||
| 2 | 11311304324 | Original OEM part | 0.100 kg | 36.39 €36.39 $ | ||||
| 2 | 11311304255 | Original OEM part | 0.100 kg | 72.45 €72.45 $ | ||||
| 3 | 11311304258 | NEEDLE SLEEVE | 0.024 kg | 8.06 €8.06 $ | ||||
| 4 | 11311304256 | Original OEM part | 0.100 kg | 53.54 €53.54 $ | ||||
| 5 | 11311304257 | O-ring | 16X2 | 0.001 kg | 4.04 €4.04 $ | |||
| 6 | 07119936425 | Washer | 6,4 | 0.002 kg | 0.32 €0.32 $ | |||
| 7 | 07119932099 | WAVE WASHER | B6 | 0.000 kg | 0.41 €0.41 $ | |||
| 7 | 07119904496 | WAVE WASHER | B6-ZNS3 | 0.001 kg | 1.18 €1.18 $ | |||
| 8 | 07119922832 | Hex nut | M6-8-ZNS | 0.002 kg | 0.21 €0.21 $ | |||
| 8 | 07119905543 | Hex nut | M6 | 0.000 kg | 0.20 €0.20 $ | |||
| 9 | 11311308495 | Original OEM part | 0.100 kg | 25.56 €25.56 $ | ||||
| 10 | 11311744351 | Original OEM part | 0.100 kg | 14.53 €14.53 $ | ||||
| 11 | 07119932832 | Circlip | 5,0 | 0.001 kg | 0.24 €0.24 $ | |||
| 12 | 07119900052 | Washer | A8,4 | 0.002 kg | 0.30 €0.30 $ | |||
| 13 | 11111308657 | Original OEM part | 0.100 kg | 68.73 €68.73 $ | ||||
| 14 | 11311308639 | Original OEM part | 0.100 kg | 492.92 €492.92 $ | ||||
| 15 | 07119906328 | O-ring | 10X2 | 0.001 kg | 0.35 €0.35 $ | |||
| 16 | 07119932852 | Circlip | 7,0 | 0.001 kg | 0.04 €0.04 $ | |||
| 16 | 07119905858 | Circlip | 7,0 | 0.001 kg | 1.83 €1.83 $ | |||
| 17 | 11311317335 | CHAIN TENSIONER | 0.073 kg | 291.35 €291.35 $ | ||||
| 18 | 11311307399 | Bearing bolt | 0.038 kg | 25.13 €25.13 $ | ||||
| 19 | 11311307408 | O-ring | 14X2,5 | 0.001 kg | 2.09 €2.09 $ | |||
| 20 | 11311307782 | CHAIN TENSIONER | 0.200 kg | 141.70 €141.70 $ | ||||
| 21 | 11311307053 | Compression spring | 0.018 kg | 18.26 €18.26 $ | ||||
| 22 | 07119963418 | Gasket ring | A26X31-AL | 0.000 kg | 0.73 €0.73 $ | |||
| 23 | 07119963355 | Gasket ring | A22X27-AL | 0.000 kg | 0.43 €0.43 $ | |||
| 25 | 11311310752 | THREADED PIPE JOINT | 0.060 kg | 27.76 €27.76 $ | ||||
| 26 | 13641360378 | O-ring | 0.001 kg | 3.53 €3.53 $ | ||||
| 27 | 11311310753 | Vent screw | 0.013 kg | 12.79 €12.79 $ | ||||
| 28 | 11611437560 | Cap | D=3,5MM | 0.000 kg | 4.19 €4.19 $ | |||
| 29 | 11311308550 | Original OEM part | 0.100 kg | 205.12 €205.12 $ | ||||
| 30 | 07119901027 | Fillister head screw | M8X35 ZNS | 0.017 kg | 1.62 €1.62 $ | |||
| 31 | 07119931697 | Washer | 8,4 | 0.001 kg | 1.07 €1.07 $ |
