E32 750iLS M70 Sedan / Engine/ Upper Timing Case
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

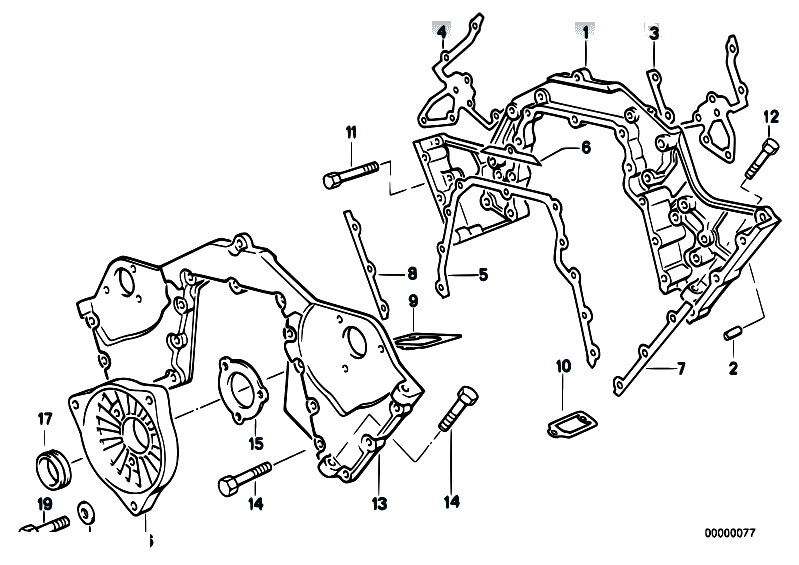

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11141741318 | Original OEM part | 0.100 kg | 268.10 €268.10 $ | ||||
| 2 | 11121726242 | Dowel | D=8,5X9MM | 0.000 kg | 1.04 €1.04 $ | |||
| 3 | 11141725767 | Gasket Asbestos Free | ZYL.1-6 | 0.004 kg | 64.93 €64.93 $ | |||
| 4 | 11141725768 | Gasket Asbestos Free | ZYL.7-12 | 0.000 kg | 64.93 €64.93 $ | |||
| 5 | 11141725770 | Gasket Asbestos Free | 0.002 kg | 34.07 €34.07 $ | ||||
| 6 | 11141725778 | Gasket Asbestos Free | 0.001 kg | 10.68 €10.68 $ | ||||
| 7 | 11141725772 | Gasket Asbestos Free | ZYL.7-12 | 0.000 kg | 10.68 €10.68 $ | |||
| 8 | 11141725776 | Gasket Asbestos Free | ZYL.1-6 | 0.001 kg | 8.05 €8.05 $ | |||
| 9 | 11141725700 | GASKET F ASBESTOS-FREE TIMING CASE | 1-LOCH | 0.015 kg | 18.58 €18.58 $ | |||
| 9 | 11141725701 | GASKET F ASBESTOS-FREE TIMING CASE | 2-LOCH | 0.017 kg | 13.43 €13.43 $ | |||
| 10 | 11141725703 | GASKET F ASBESTOS-FREE TIMING CASE | 1-LOCH | 0.015 kg | 13.24 €13.24 $ | |||
| 10 | 11141725704 | GASKET F ASBESTOS-FREE TIMING CASE | 2-LOCH | 0.015 kg | 13.43 €13.43 $ | |||
| 11 | 07119913956 | Hex Bolt with washer | M6X18-Z3 | 0.006 kg | 0.40 €0.40 $ | |||
| 11 | 07119913484 | Hex Bolt | M6X28 | 0.006 kg | 0.38 €0.38 $ | |||
| 12 | 11141720091 | Hex Bolt | M6X28-Z3 | 0.008 kg | 2.64 €2.64 $ | |||
| 12 | 11141720092 | Hex Bolt | M6X45-Z3 | 0.011 kg | 4.76 €4.76 $ | |||
| 13 | 11141725711 | Original OEM part | 0.100 kg | 163.98 €163.98 $ | ||||
| 14 | 07119913484 | Hex Bolt | M6X28 | 0.006 kg | 0.38 €0.38 $ | |||
| 15 | 11141725780 | Gasket | 0.001 kg | 18.58 €18.58 $ | ||||
| 16 | 11141715722 | COVER F.DISTRIBUTOR | 0.279 kg | 74.22 €74.22 $ | ||||
| 17 | 11141271415 | Shaft seal | 28X40X7 | 0.011 kg | 25.73 €25.73 $ | |||
| 18 | 07119963044 | Gasket ring | A6,5X11-CU | 0.001 kg | 0.57 €0.57 $ | |||
| 19 | 07119919712 | Fillister head screw | M6X16 | 0.004 kg | 0.76 €0.76 $ | |||
| 19 | 07119919713 | Fillister head screw | M6X16-ZNS | 0.005 kg | 1.47 €1.47 $ |
