E34 518i M43 Touring / Engine/ Timing Case
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

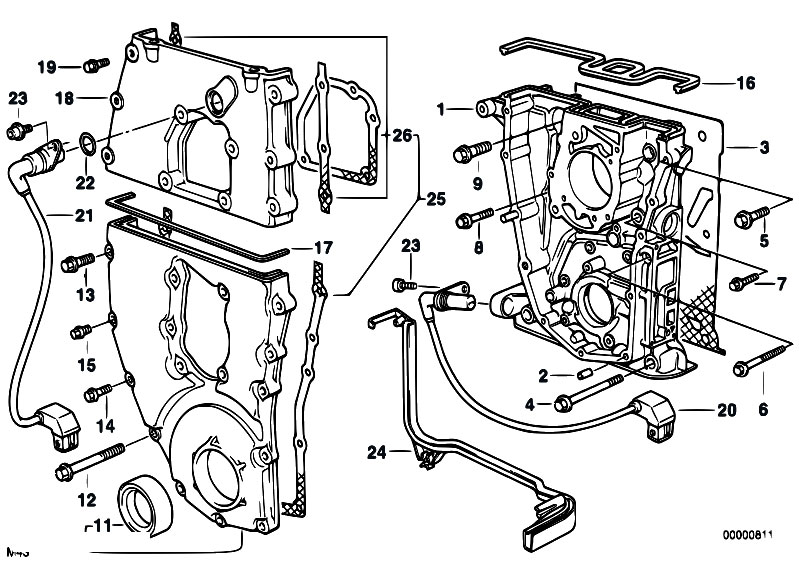

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11141739526 | LOWER TIMING CASE | 2.260 kg | 338.14 €338.14 $ | ||||
| 2 | 11121726242 | Dowel | D=8,5X9MM | 0.000 kg | 1.04 €1.04 $ | |||
| 3 | 11141743032 | Gasket Steel | 0.053 kg | 8.26 €8.26 $ | ||||
| 4 | 07119902176 | Hex Bolt with washer | M8X60-Z1-ZNS | 0.030 kg | 5.10 €5.10 $ | |||
| 5 | 07119920078 | Fillister head screw | M8X20-Z1-8.8-ZN | 0.016 kg | 0.34 €0.34 $ | |||
| 6 | 07119903862 | Hex Bolt with washer | M6X50-U1-ZNS3 | 0.012 kg | 0.63 €0.63 $ | |||
| 7 | 07119901943 | Hex Bolt with washer | M6X30-Z1-ZNS | 0.009 kg | 0.29 €0.29 $ | |||
| 8 | 07119900251 | Hex Bolt with washer | M6X18-Z1-ZNS | 0.006 kg | 0.20 €0.20 $ | |||
| 9 | 07119900497 | Hex Bolt with washer | M10X25-8.8-ZNS | 0.027 kg | 1.10 €1.10 $ | |||
| 10 | 11141439645 | Timing case cover, bottom | 0.630 kg | 137.05 €137.05 $ | ||||
| 11 | 11141439570 | Shaft seal | 44X60X10 | 0.024 kg | 34.38 €34.38 $ | |||
| 12 | 07119901675 | Hex Bolt with washer | M8X80-Z1 | 0.030 kg | 1.25 €1.25 $ | |||
| 12 | 07119906270 | Hex Bolt with washer | M8X80-U1-8.8 | 0.030 kg | 5.20 €5.20 $ | |||
| 13 | 07119901137 | Hex Bolt with washer | M8X30-Z1-ZNS | 0.018 kg | 0.48 €0.48 $ | |||
| 13 | 07119905532 | Hex Bolt with washer | M8X30-ZNNIV SI | 0.020 kg | 0.82 €0.82 $ | |||
| 14 | 07119901943 | Hex Bolt with washer | M6X30-Z1-ZNS | 0.009 kg | 0.29 €0.29 $ | |||
| 15 | 07119901787 | Hex Bolt with washer | M6X20-Z1-ZNS | 0.007 kg | 0.24 €0.24 $ | |||
| 16 | 11141709593 | Profile-gasket | 0.019 kg | 21.99 €21.99 $ | ||||
| 17 | 11141709594 | Profile-gasket | 0.011 kg | 13.71 €13.71 $ | ||||
| 18 | 11141734820 | Timing case cover, top | 0.485 kg | 108.83 €108.83 $ | ||||
| 19 | 07119901973 | Hex Bolt with washer | M6X35-Z1-ZNS | 0.009 kg | 1.02 €1.02 $ | |||
| 20 | 12141247218 | Pulse generator | 0.109 kg | 170.72 €170.72 $ | ||||
| 21 | 12141247219 | TRIGGER CONTACT | 0.063 kg | 170.72 €170.72 $ | ||||
| 22 | 12141727220 | O-ring | 18X2 | 0.001 kg | 1.38 €1.38 $ | |||
| 23 | 11421740488 | Fillister head screw | M6X16 | 0.010 kg | 12.83 €12.83 $ | |||
| 24 | 12141739569 | Guide | 0.017 kg | 20.99 €20.99 $ | ||||
| 25 | 11141743033 | Gasket Steel | 0.026 kg | 20.88 €20.88 $ | ||||
| 26 | 11141743191 | Gasket Steel | 0.016 kg | 20.73 €20.73 $ |
