E34 525i M50 Sedan / Engine Electrical System/ Alternator Individual Parts 105a 3
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

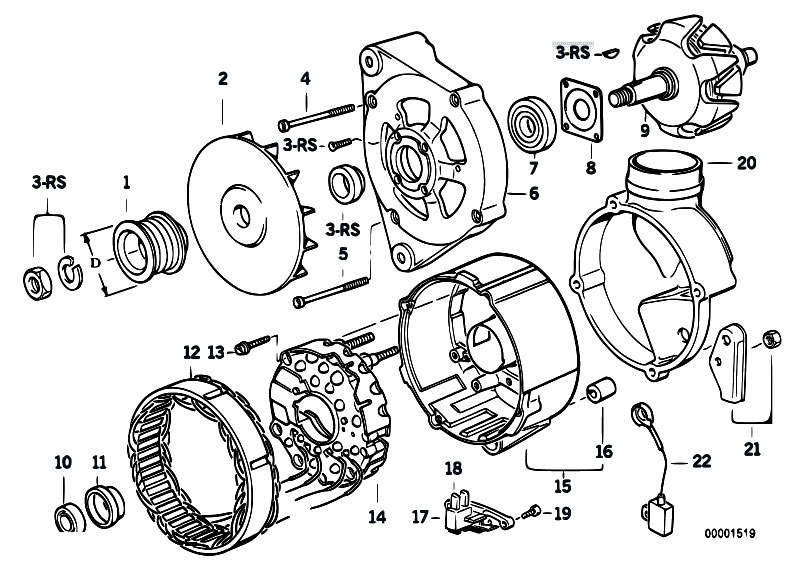

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 12311735027 | Original OEM part | 0.100 kg | 29.48 €29.48 $ | ||||
| 2 | 12311726934 | Fan wheel | BOSCH/D=146MM | 0.172 kg | 51.35 €51.35 $ | |||
| 3 | 11411713218 | Original OEM part | 0.100 kg | 73.01 €73.01 $ | ||||
| 4 | 12311738099 | Fillister head screw | 0.015 kg | 9.19 €9.19 $ | ||||
| 5 | 12311738101 | Fillister head screw | 0.012 kg | 4.43 €4.43 $ | ||||
| 6 | 12311738093 | HOUSING ASSY FRONT | 0.618 kg | 0.00 €0.00 $ | ||||
| 7 | 12311747246 | GROOVED BALL BEARING | 52X17X17 | 0.170 kg | 42.09 €42.09 $ | |||
| 8 | 12311747247 | Supporting plate | 0.045 kg | 7.84 €7.84 $ | ||||
| 9 | 12311738094 | Rotor | 2.446 kg | 0.00 €0.00 $ | ||||
| 10 | 12311739203 | GROOVED BALL BEARING | 32X12X10 | 0.036 kg | 22.00 €22.00 $ | |||
| 11 | 12311735305 | Ring | 0.006 kg | 11.10 €11.10 $ | ||||
| 12 | 12311738104 | STATOR ASSY | 1.290 kg | 0.00 €0.00 $ | ||||
| 13 | 12311727753 | Screw | 0.003 kg | 4.14 €4.14 $ | ||||
| 14 | 12311735307 | DIODE ASSY | 0.250 kg | 75.08 €75.08 $ | ||||
| 15 | 12311738098 | HOUSING ASSY REAR | 0.568 kg | 50.39 €50.39 $ | ||||
| 16 | 12311738103 | Bush | 0.044 kg | 9.76 €9.76 $ | ||||
| 17 | 12311726022 | Voltage regulator | 0.058 kg | 174.21 €174.21 $ | ||||
| 18 | 12311727756 | CARBON BRUSH SET | 0.006 kg | 18.91 €18.91 $ | ||||
| 19 | 12311747251 | Fillister head screw | 0.003 kg | 2.64 €2.64 $ | ||||
| 20 | 12311730143 | Original OEM part | 0.100 kg | 19.79 €19.79 $ | ||||
| 21 | 12311747252 | Set mounting parts | B+/D* | 0.048 kg | 31.84 €31.84 $ | |||
| 22 | 12311356564 | SUPPRESSION CAPACITOR ALTERNATOR | BOSCH | 0.012 kg | 22.10 €22.10 $ |
