E34 525i M50 Touring / Automatic Transmission/ Gearbox Suspension
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

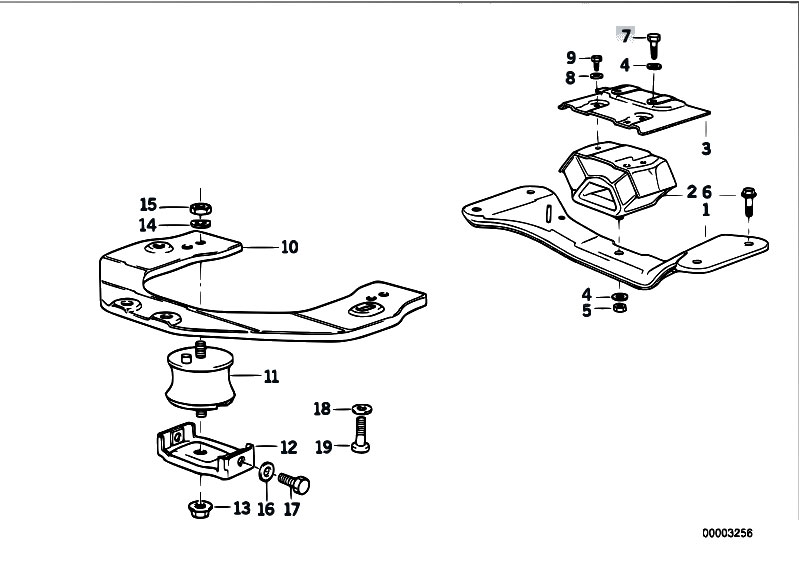

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 24701139602 | Original OEM part | 0.100 kg | 69.20 €69.20 $ | ||||
| 2 | 24701139601 | Rubber mounting | 0.644 kg | 127.39 €127.39 $ | ||||
| 3 | 24701139603 | Original OEM part | 0.100 kg | 7.70 €7.70 $ | ||||
| 4 | 07119931096 | Washer | A10,5 | 0.004 kg | 2.68 €2.68 $ | |||
| 5 | 07119922857 | Hex nut | M10 | 0.009 kg | 0.44 €0.44 $ | |||
| 6 | 22311091785 | Hex Bolt with washer | M8 | 0.020 kg | 0.69 €0.69 $ | |||
| 7 | 07119901039 | Fillister head screw | M10X20 | 0.020 kg | 4.33 €4.33 $ | |||
| 8 | 07119900052 | Washer | A8,4 | 0.002 kg | 0.30 €0.30 $ | |||
| 9 | 07119913616 | Hex Bolt | M8X12 | 0.010 kg | 0.40 €0.40 $ | |||
| 10 | 24701138520 | Original OEM part | 0.100 kg | 28.67 €28.67 $ | ||||
| 11 | 24701138435 | Rubber mounting | 0.090 kg | 32.01 €32.01 $ | ||||
| 12 | 24701141633 | Supporting bracket | 0.130 kg | 11.77 €11.77 $ | ||||
| 13 | 07129946400 | Self-locking hex nut | M8 | 0.007 kg | 0.22 €0.22 $ | |||
| 13 | 07129906196 | Self-locking hex nut | M8-8-ZNNI SI | 0.010 kg | 1.81 €1.81 $ | |||
| 14 | 07119932095 | WAVE WASHER | B8 | 0.001 kg | 0.04 €0.04 $ | |||
| 15 | 07119922856 | Hex nut | M8-ZNS | 0.005 kg | 0.33 €0.33 $ | |||
| 16 | 33311108205 | Washer | A8,4 | 0.006 kg | 1.82 €1.82 $ | |||
| 17 | 07119913612 | Hex Bolt | M8X16 | 0.011 kg | 0.84 €0.84 $ | |||
| 18 | 33311108204 | Washer | 8,4 | 0.002 kg | 1.51 €1.51 $ | |||
| 19 | 07119919969 | Fillister head screw | M8X20-8.8 ZN | 0.012 kg | 0.72 €0.72 $ |
