E34 M5 S38 Touring / Engine/ Timing And Valve Train Timing Chain 2
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

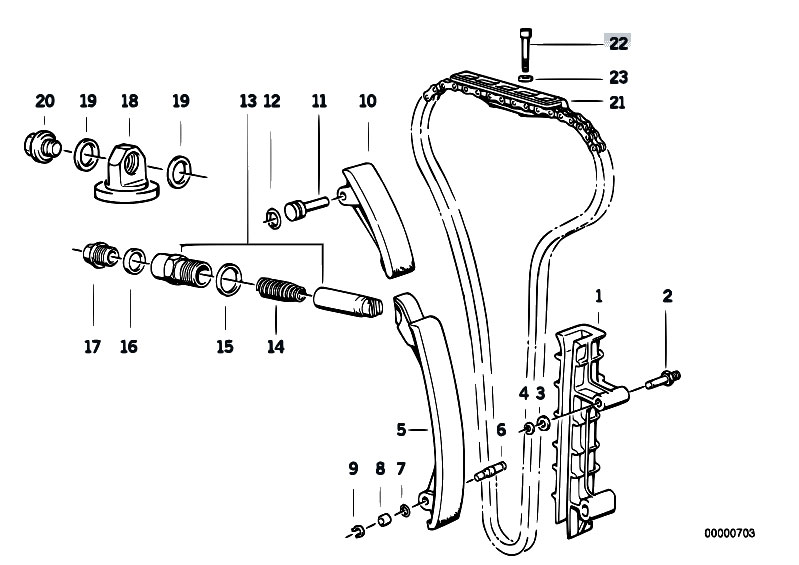

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11311308495 | Original OEM part | 0.100 kg | 25.56 €25.56 $ | ||||
| 2 | 11311744351 | Original OEM part | 0.100 kg | 14.53 €14.53 $ | ||||
| 3 | 07119900052 | Washer | A8,4 | 0.002 kg | 0.30 €0.30 $ | |||
| 4 | 07119932832 | Circlip | 5,0 | 0.001 kg | 0.24 €0.24 $ | |||
| 5 | 11311309945 | CHAIN TENSIONER-TWIN CHAIN | 0.187 kg | 302.03 €302.03 $ | ||||
| 6 | 11111308657 | Original OEM part | 0.100 kg | 68.73 €68.73 $ | ||||
| 7 | 07119906328 | O-ring | 10X2 | 0.001 kg | 0.35 €0.35 $ | |||
| 8 | 11311706503 | Original OEM part | 0.100 kg | 6.46 €6.46 $ | ||||
| 9 | 07119932852 | Circlip | 7,0 | 0.001 kg | 0.04 €0.04 $ | |||
| 9 | 07119905858 | Circlip | 7,0 | 0.001 kg | 1.83 €1.83 $ | |||
| 10 | 11311317335 | CHAIN TENSIONER | 0.073 kg | 291.35 €291.35 $ | ||||
| 11 | 11311307399 | Bearing bolt | 0.038 kg | 25.13 €25.13 $ | ||||
| 12 | 11311307408 | O-ring | 14X2,5 | 0.001 kg | 2.09 €2.09 $ | |||
| 13 | 11311307782 | CHAIN TENSIONER | 0.200 kg | 141.70 €141.70 $ | ||||
| 14 | 11311307053 | Compression spring | 0.018 kg | 18.26 €18.26 $ | ||||
| 15 | 07119963418 | Gasket ring | A26X31-AL | 0.000 kg | 0.73 €0.73 $ | |||
| 16 | 07119963355 | Gasket ring | A22X27-AL | 0.000 kg | 0.43 €0.43 $ | |||
| 17 | 11311308450 | Original OEM part | 0.100 kg | 15.31 €15.31 $ | ||||
| 18 | 11311308309 | Original OEM part | 0.100 kg | 163.96 €163.96 $ | ||||
| 19 | 07119963355 | Gasket ring | A22X27-AL | 0.000 kg | 0.43 €0.43 $ | |||
| 20 | 11311308451 | Original OEM part | 0.100 kg | 17.77 €17.77 $ | ||||
| 21 | 11311308550 | Original OEM part | 0.100 kg | 205.12 €205.12 $ | ||||
| 22 | 07119920059 | Original OEM part | 0.100 kg | 1.41 €1.41 $ | ||||
| 23 | 07119931697 | Washer | 8,4 | 0.001 kg | 1.07 €1.07 $ |
