E36 318i M40 Sedan / Engine Electrical System/ Alternator Parts 90a
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

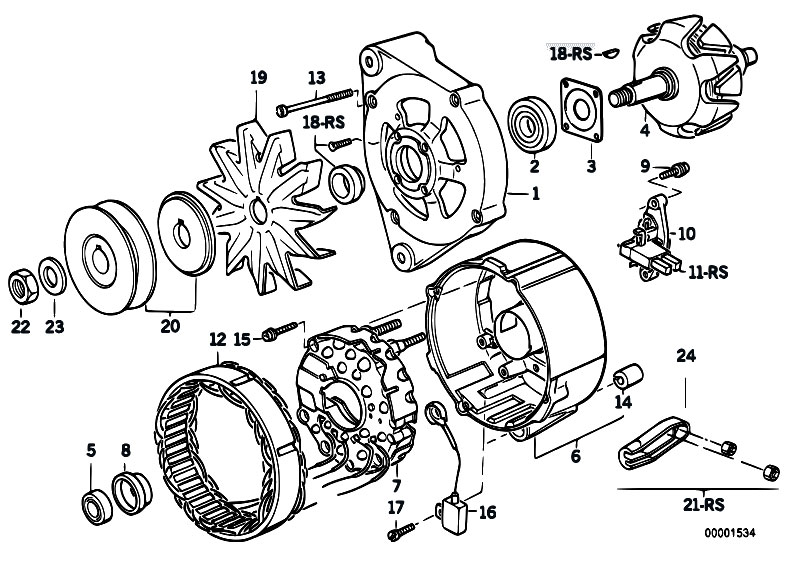

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 12311727739 | HOUSING ASSY FRONT | 0.625 kg | 54.32 €54.32 $ | ||||
| 2 | 12311722979 | GROOVED BALL BEARING | 47X17X14 | 0.110 kg | 27.64 €27.64 $ | |||
| 3 | 12311727740 | Supporting plate | 0.031 kg | 6.95 €6.95 $ | ||||
| 4 | 12311727742 | Rotor | 2.460 kg | 229.53 €229.53 $ | ||||
| 5 | 12311739203 | GROOVED BALL BEARING | 32X12X10 | 0.036 kg | 22.00 €22.00 $ | |||
| 6 | 12311727747 | HOUSING ASSY REAR | 0.497 kg | 47.25 €47.25 $ | ||||
| 7 | 12311727750 | DIODE ASSY | 0.236 kg | 94.83 €94.83 $ | ||||
| 8 | 12311727751 | Ring | 0.003 kg | 6.07 €6.07 $ | ||||
| 9 | 12311747251 | Fillister head screw | 0.003 kg | 2.64 €2.64 $ | ||||
| 10 | 12311726022 | Voltage regulator | 0.058 kg | 174.21 €174.21 $ | ||||
| 11 | 12311727756 | CARBON BRUSH SET | 0.006 kg | 18.91 €18.91 $ | ||||
| 12 | 12311727759 | STATOR ASSY | 1.254 kg | 218.08 €218.08 $ | ||||
| 13 | 12311727760 | Fillister head screw | 0.013 kg | 7.81 €7.81 $ | ||||
| 14 | 12311727761 | Bush | 0.030 kg | 24.69 €24.69 $ | ||||
| 15 | 12311727753 | Screw | 0.003 kg | 4.14 €4.14 $ | ||||
| 16 | 12311356564 | SUPPRESSION CAPACITOR ALTERNATOR | BOSCH | 0.012 kg | 22.10 €22.10 $ | |||
| 17 | 07119919412 | Fillister head screw | AM5X10 | 0.002 kg | 0.00 €0.00 $ | |||
| 18 | 12311727762 | REPAIR KIT ROTOR | 0.110 kg | 28.53 €28.53 $ | ||||
| 19 | 12311735306 | Fan wheel | 0.198 kg | 31.59 €31.59 $ | ||||
| 20 | 12311721776 | Pulley | 0.502 kg | 54.37 €54.37 $ | ||||
| 21 | 12311727764 | PARTS SET | B+/D+ | 0.050 kg | 18.49 €18.49 $ | |||
| 22 | 07119901307 | Hex nut | M16X1,5 | 0.018 kg | 1.97 €1.97 $ | |||
| 23 | 07119932162 | WAVE WASHER | B16 | 0.005 kg | 1.06 €1.06 $ | |||
| 24 | 12311727383 | INSULATING COVER | BOSCH | 0.020 kg | 17.41 €17.41 $ |
