E36 318is M42 Sedan / Engine Electrical System/ Alternator Parts 90a
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

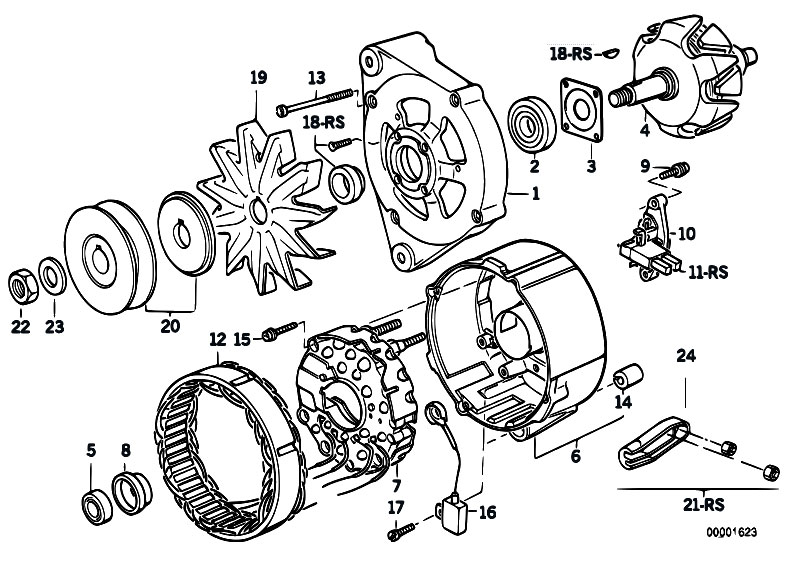

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 12311727739 | HOUSING ASSY FRONT | 0.625 kg | 55.42 €55.42 $ | ||||
| 2 | 12311722979 | GROOVED BALL BEARING | 47X17X14 | 0.110 kg | 27.64 €27.64 $ | |||
| 3 | 12311727740 | Supporting plate | 0.031 kg | 6.95 €6.95 $ | ||||
| 4 | 12311727742 | Rotor | 2.460 kg | 234.14 €234.14 $ | ||||
| 5 | 12311739203 | GROOVED BALL BEARING | 32X12X10 | 0.036 kg | 22.44 €22.44 $ | |||
| 6 | 12311727747 | HOUSING ASSY REAR | 0.497 kg | 48.18 €48.18 $ | ||||
| 7 | 12311727750 | DIODE ASSY | 0.236 kg | 96.73 €96.73 $ | ||||
| 8 | 12311727751 | Ring | 0.003 kg | 6.19 €6.19 $ | ||||
| 9 | 12311747251 | Fillister head screw | 0.003 kg | 2.69 €2.69 $ | ||||
| 10 | 12311726022 | Voltage regulator | 0.058 kg | 177.68 €177.68 $ | ||||
| 11 | 12311727756 | CARBON BRUSH SET | 0.006 kg | 19.29 €19.29 $ | ||||
| 12 | 12311727759 | STATOR ASSY | 1.254 kg | 222.45 €222.45 $ | ||||
| 13 | 12311727760 | Fillister head screw | 0.013 kg | 7.95 €7.95 $ | ||||
| 14 | 12311727761 | Bush | 0.030 kg | 25.18 €25.18 $ | ||||
| 15 | 12311727753 | Screw | 0.003 kg | 4.22 €4.22 $ | ||||
| 16 | 12311356564 | SUPPRESSION CAPACITOR ALTERNATOR | BOSCH | 0.012 kg | 22.56 €22.56 $ | |||
| 17 | 07119919412 | Fillister head screw | AM5X10 | 0.002 kg | 0.00 €0.00 $ | |||
| 18 | 12311727762 | REPAIR KIT ROTOR | 0.110 kg | 29.10 €29.10 $ | ||||
| 19 | 12311735306 | Fan wheel | 0.198 kg | 32.21 €32.21 $ | ||||
| 20 | 12311721776 | Pulley | 0.502 kg | 54.37 €54.37 $ | ||||
| 21 | 12311727764 | PARTS SET | B+/D+ | 0.050 kg | 18.85 €18.85 $ | |||
| 22 | 07119901307 | Hex nut | M16X1,5 | 0.018 kg | 1.97 €1.97 $ | |||
| 23 | 07119932162 | WAVE WASHER | B16 | 0.005 kg | 1.06 €1.06 $ | |||
| 24 | 12311727383 | INSULATING COVER | BOSCH | 0.020 kg | 17.41 €17.41 $ |
