E36 318tds M41 Touring / Engine/ Oil Pan Oil Level Indicator
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

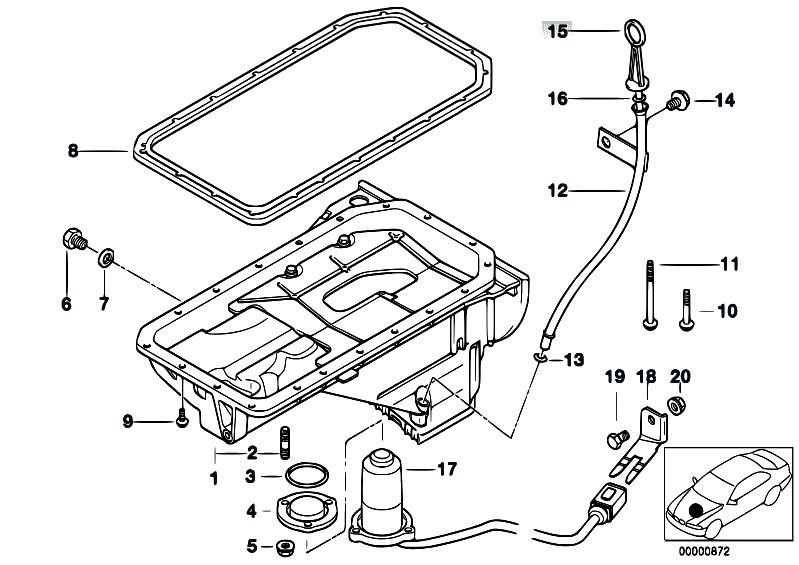

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11132246677 | Oil pan | 3.058 kg | 389.95 €389.95 $ | ||||
| 2 | 07129908102 | Stud bolt | M6X30-ZN | 0.004 kg | 0.51 €0.51 $ | |||
| 3 | 12611277129 | Gasket ring | 40X4 | 0.003 kg | 7.33 €7.33 $ | |||
| 4 | 11131726357 | Cover lid | 0.032 kg | 12.48 €12.48 $ | ||||
| 5 | 07129905411 | Hex nut | BM6-8-ZNNIV SI | 0.000 kg | 0.82 €0.82 $ | |||
| 6 | 11137535106 | Screw plug | M12X16 | 0.020 kg | 5.22 €5.22 $ | |||
| 7 | 07119963151 | Gasket ring | A12X17-CU | 0.000 kg | 0.53 €0.53 $ | |||
| 8 | 11139067655 | Gasket Asbestos Free | 0.117 kg | 34.07 €34.07 $ | ||||
| 9 | 07119915190 | Hex Bolt with washer | M6X20-Z1 | 0.007 kg | 0.13 €0.13 $ | |||
| 9 | 11132246986 | Original OEM part | 0.100 kg | 0.51 €0.51 $ | ||||
| 9 | 11137800619 | Torx bolt | M6X22 | 0.010 kg | 1.19 €1.19 $ | |||
| 10 | 07119913001 | Hex Bolt with washer | M6X60-Z3 | 0.014 kg | 0.35 €0.35 $ | |||
| 10 | 11132246987 | Original OEM part | 0.100 kg | 0.80 €0.80 $ | ||||
| 10 | 11137800622 | Torx bolt | M6X60 | 0.020 kg | 1.89 €1.89 $ | |||
| 11 | 11122245529 | Hex Bolt with washer | M6X100-Z1 | 0.021 kg | 8.39 €8.39 $ | |||
| 11 | 11137800623 | Torx bolt | M6X100 | 0.020 kg | 2.54 €2.54 $ | |||
| 12 | 11432247035 | Guide tube | 0.230 kg | 65.21 €65.21 $ | ||||
| 13 | 11437794698 | O-ring | 14X3 | 0.000 kg | 2.35 €2.35 $ | |||
| 14 | 07119915190 | Hex Bolt with washer | M6X20-Z1 | 0.007 kg | 0.13 €0.13 $ | |||
| 15 | 11432246521 | Dipstick | 0.024 kg | 29.92 €29.92 $ | ||||
| 16 | 11431717666 | O-ring | 9X2,2 | 0.000 kg | 1.04 €1.04 $ | |||
| 17 | 12612246608 | OIL LEVELLING SWITCH | 0.166 kg | 256.40 €256.40 $ | ||||
| 18 | 12612246609 | Bracket | 0.014 kg | 13.64 €13.64 $ | ||||
| 19 | 07119913410 | Hex Bolt | M6X14 | 0.004 kg | 1.86 €1.86 $ | |||
| 20 | 07129905411 | Hex nut | BM6-8-ZNNIV SI | 0.000 kg | 0.82 €0.82 $ |
