E36 318ti M44 Compact / Heater And Air Conditioning/ Coolant Lines 2
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

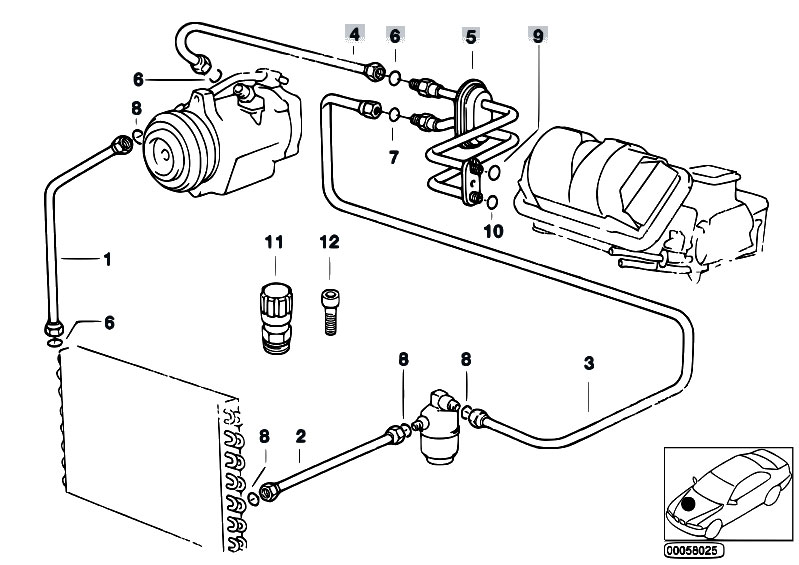

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 64536902230 | Pressure hose, compressor-condenser | R12/R134A | 0.514 kg | 219.49 €219.49 $ | |||
| 2 | 64538391323 | CONDENSER-DRYER PRESSURE HOSE ASSY | R12/R134A | 0.232 kg | 190.36 €190.36 $ | |||
| 2 | 64538375753 | CONDENSER-DRYER PRESSURE HOSE ASSY | 0.238 kg | 190.36 €190.36 $ | ||||
| 3 | 64538364097 | PIPE-DRYER PRESSURE HOSE | R134A | 0.316 kg | 237.06 €237.06 $ | |||
| 3 | 64538391338 | PIPE-DRYER PRESSURE HOSE | R134A | 0.305 kg | 243.56 €243.56 $ | |||
| 3 | 64538375751 | PIPE-DRYER PRESSURE HOSE | 0.332 kg | 252.67 €252.67 $ | ||||
| 4 | 64538391730 | SUCTION PIPE EVAPORATOR-COMPRESSOR | R134A | 0.602 kg | 294.00 €294.00 $ | |||
| 4 | 64538377633 | SUCTION PIPE EVAPORATOR-COMPRESSOR | 1.130 kg | 210.73 €210.73 $ | ||||
| 5 | 64538390557 | Double pipe | 0.255 kg | 208.94 €208.94 $ | ||||
| 5 | 64538375747 | Double pipe | 0.257 kg | 125.08 €125.08 $ | ||||
| 6 | 64508390603 | Gasket ring | D=14MM | 0.000 kg | 1.76 €1.76 $ | |||
| 7 | 64508390602 | Gasket ring | D=11.1MM | 0.000 kg | 2.00 €2.00 $ | |||
| 8 | 64508390602 | Gasket ring | D=11.1MM | 0.000 kg | 2.00 €2.00 $ | |||
| 9 | 64508369240 | Gasket ring | D=7 MM | 0.001 kg | 5.95 €5.95 $ | |||
| 10 | 64508369241 | Gasket ring | D=15,54 MM | 0.001 kg | 5.56 €5.56 $ | |||
| 11 | 64538391214 | Valve | R134A | 0.030 kg | 10.14 €10.14 $ | |||
| 11 | 64536940460 | Valve | R134A | 0.013 kg | 9.50 €9.50 $ | |||
| 11 | 64509177579 | Valve | R134A | 0.010 kg | 8.85 €8.85 $ | |||
| 11 | 64538391215 | Valve | R134A | 0.014 kg | 10.14 €10.14 $ | |||
| 11 | 64536940461 | Valve | R134A. | 0.020 kg | 9.50 €9.50 $ | |||
| 11 | 64509177577 | Valve | R134A. | 0.020 kg | 8.85 €8.85 $ | |||
| 12 | 07119901024 | Fillister head screw | M8X25 | 0.010 kg | 0.27 €0.27 $ | |||
| 12 | 07119904102 | Fillister head screw | M8X25-8.8-ZNS3 | 0.014 kg | 0.63 €0.63 $ |
