E36 325td M51 Sedan / Engine/ Intake Manifold System
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

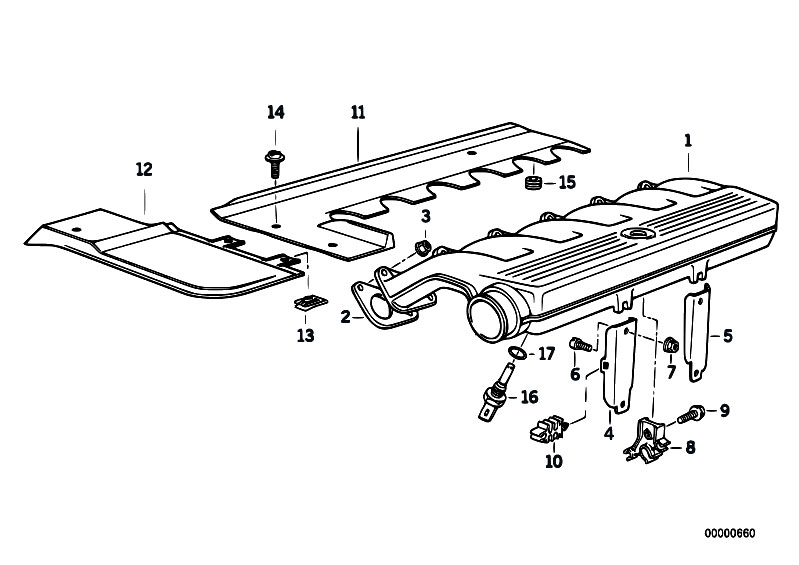

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11612243152 | Intake manifold | 3.440 kg | 617.90 €617.90 $ | ||||
| 1 | 11612243152 | Intake manifold | 3.440 kg | 617.90 €617.90 $ | ||||
| 2 | 11612244391 | Gasket Asbestos Free | 0.003 kg | 2.41 €2.41 $ | ||||
| 2 | 11612244391 | Gasket Asbestos Free | 0.003 kg | 2.41 €2.41 $ | ||||
| 3 | 11611713432 | Hex nut with flange | M8 | 0.006 kg | 0.96 €0.96 $ | |||
| 3 | 11611713432 | Hex nut with flange | M8 | 0.006 kg | 0.96 €0.96 $ | |||
| 4 | 11612243643 | ROD LEFT | 0.086 kg | 8.80 €8.80 $ | ||||
| 4 | 11612243643 | ROD LEFT | 0.086 kg | 8.80 €8.80 $ | ||||
| 5 | 11612243642 | ROD RIGHT | 0.086 kg | 8.80 €8.80 $ | ||||
| 5 | 11612243642 | ROD RIGHT | 0.086 kg | 8.80 €8.80 $ | ||||
| 6 | 07119900438 | Saucer-head screw | M8X22 | 0.014 kg | 1.18 €1.18 $ | |||
| 6 | 07119900438 | Saucer-head screw | M8X22 | 0.014 kg | 1.18 €1.18 $ | |||
| 7 | 11611713432 | Hex nut with flange | M8 | 0.006 kg | 0.96 €0.96 $ | |||
| 7 | 11611713432 | Hex nut with flange | M8 | 0.006 kg | 0.96 €0.96 $ | |||
| 8 | 11612243626 | Hose clamp | 0.022 kg | 27.67 €27.67 $ | ||||
| 8 | 11612243626 | Hose clamp | 0.022 kg | 27.67 €27.67 $ | ||||
| 9 | 07129902609 | Screw | M5X8-Z3 | 0.003 kg | 1.59 €1.59 $ | |||
| 9 | 07119902906 | Hex Bolt with washer | M8X18-Z1-ZNS3 | 0.013 kg | 1.11 €1.11 $ | |||
| 10 | 11612243914 | Hose clamp | 0.003 kg | 1.87 €1.87 $ | ||||
| 10 | 11612243914 | Hose clamp | 0.003 kg | 1.87 €1.87 $ | ||||
| 11 | 11142244103 | Cover | 0.202 kg | 118.04 €118.04 $ | ||||
| 11 | 11142244103 | Cover | 0.202 kg | 118.04 €118.04 $ | ||||
| 12 | 11142244054 | Air duct | 0.112 kg | 35.63 €35.63 $ | ||||
| 12 | 11142244054 | Air duct | 0.112 kg | 35.63 €35.63 $ | ||||
| 13 | 51127070202 | Clip nut | M6-ZNS3 | 0.000 kg | 1.49 €1.49 $ | |||
| 13 | 51127070202 | Clip nut | M6-ZNS3 | 0.000 kg | 1.49 €1.49 $ | |||
| 14 | 11142244595 | Fillister head screw | M6X16 | 0.005 kg | 1.85 €1.85 $ | |||
| 14 | 11142244595 | Fillister head screw | M6X16 | 0.005 kg | 1.85 €1.85 $ | |||
| 15 | 31421236240 | Rubber grommet | 0.000 kg | 2.24 €2.24 $ | ||||
| 15 | 31421236240 | Rubber grommet | 0.000 kg | 2.24 €2.24 $ | ||||
| 16 | 11613449116 | Temperature sensor air | 0.020 kg | 87.92 €87.92 $ | ||||
| 16 | 11613449116 | Temperature sensor air | 0.020 kg | 87.92 €87.92 $ | ||||
| 17 | 07119963130 | Gasket ring | A12X15,5 CU | 0.000 kg | 0.36 €0.36 $ | |||
| 17 | 07119963130 | Gasket ring | A12X15,5 CU | 0.000 kg | 0.36 €0.36 $ |
