E36 328i M52 Touring / Seats/ Through Loading Facility Single Parts
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

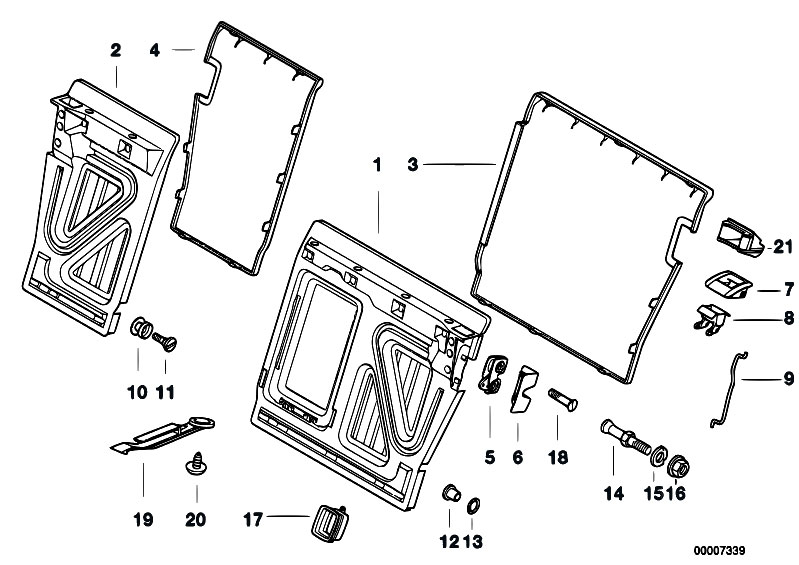

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 52208173915 | Frame, backrest left | 6.090 kg | 109.56 €109.56 $ | ||||
| 1 | 52208204629 | Frame, backrest left | 5.343 kg | 136.03 €136.03 $ | ||||
| 2 | 52208173916 | Frame, backrest right | 3.011 kg | 74.07 €74.07 $ | ||||
| 3 | 52208192207 | Trim backrest, left | SCHWARZ | 1.113 kg | 47.64 €47.64 $ | |||
| 3 | 52208192211 | Trim backrest, left | BEIGE | 1.113 kg | 0.00 €0.00 $ | |||
| 3 | 52208192213 | Trim backrest, left | KLASS.ROT | 1.113 kg | 0.00 €0.00 $ | |||
| 3 | 52208192215 | Trim backrest, left | TUERKIS | 1.113 kg | 0.00 €0.00 $ | |||
| 3 | 52208192217 | Trim backrest, left | BLAUVIOLET | 1.113 kg | 0.00 €0.00 $ | |||
| 3 | 52208192219 | Trim backrest, left | SAFRANGELB | 1.113 kg | 0.00 €0.00 $ | |||
| 3 | 52208202259 | Trim backrest, left | SCHWARZ | 1.313 kg | 168.56 €168.56 $ | |||
| 3 | 52208202261 | Trim backrest, left | GRAU | 1.313 kg | 150.31 €150.31 $ | |||
| 3 | 52208202263 | Trim backrest, left | BEIGE | 1.313 kg | 0.00 €0.00 $ | |||
| 3 | 52208202265 | Trim backrest, left | KLASSISCHROT | 1.313 kg | 0.00 €0.00 $ | |||
| 3 | 52208202267 | Trim backrest, left | TUERKIS | 1.313 kg | 0.00 €0.00 $ | |||
| 3 | 52208202269 | Trim backrest, left | BLAUVIOLETT | 1.313 kg | 0.00 €0.00 $ | |||
| 3 | 52208202271 | Trim backrest, left | SAFRANGELB | 1.313 kg | 0.00 €0.00 $ | |||
| 4 | 52208192208 | Trim backrest, right | SCHWARZ | 0.701 kg | 44.25 €44.25 $ | |||
| 4 | 52208192210 | Trim backrest, right | GRAU | 0.701 kg | 0.00 €0.00 $ | |||
| 4 | 52208192212 | Trim backrest, right | BEIGE | 0.701 kg | 0.00 €0.00 $ | |||
| 4 | 52208192214 | Trim backrest, right | KLASS.ROT | 0.701 kg | 0.00 €0.00 $ | |||
| 4 | 52208192216 | Trim backrest, right | TUERKIS | 0.701 kg | 0.00 €0.00 $ | |||
| 4 | 52208192218 | Trim backrest, right | BLAUVIOLET | 0.701 kg | 0.00 €0.00 $ | |||
| 4 | 52208192220 | Trim backrest, right | SAFRANGELB | 0.701 kg | 0.00 €0.00 $ | |||
| 5 | 52208146355 | CATCH REAR LEFT | 0.234 kg | 19.80 €19.80 $ | ||||
| 5 | 52208146356 | CATCH REAR RIGHT | 0.233 kg | 17.60 €17.60 $ | ||||
| 6 | 52208192241 | Covering left | SCHWARZ | 0.028 kg | 3.37 €3.37 $ | |||
| 6 | 52208192242 | Covering right | SCHWARZ | 0.028 kg | 6.27 €6.27 $ | |||
| 6 | 52208192243 | Covering left | DUNKELBEIGE | 0.028 kg | 0.00 €0.00 $ | |||
| 6 | 52208192244 | Covering right | DUNKELBEIGE | 0.028 kg | 0.00 €0.00 $ | |||
| 6 | 52208192245 | Covering left | DUNKELGRAU | 0.028 kg | 2.54 €2.54 $ | |||
| 6 | 52208192246 | Covering right | DUNKELGRAU | 0.028 kg | 3.23 €3.23 $ | |||
| 7 | 52208192766 | Cover | SCHWARZ | 0.019 kg | 2.08 €2.08 $ | |||
| 7 | 52208196407 | Cover | BEIGE | 0.019 kg | 0.00 €0.00 $ | |||
| 7 | 52208196408 | Cover | GRAU | 0.019 kg | 2.64 €2.64 $ | |||
| 8 | 52208196420 | Recessed handle | 0.047 kg | 17.29 €17.29 $ | ||||
| 9 | 52208196421 | LEFT OPERATING ROD | 0.015 kg | 0.97 €0.97 $ | ||||
| 9 | 52208196422 | RIGHT OPERATING ROD | 0.015 kg | 0.97 €0.97 $ | ||||
| 10 | 52208196418 | Bush | 0.002 kg | 3.08 €3.08 $ | ||||
| 11 | 52208192606 | Bearing pin centre | M6 | 0.011 kg | 2.18 €2.18 $ | |||
| 11 | 52208196417 | Bearing bolt | M10 | 0.016 kg | 0.00 €0.00 $ | |||
| 12 | 52208171104 | Bush | 0.001 kg | 2.38 €2.38 $ | ||||
| 13 | 07119932881 | Circlip | 10,0 | 0.002 kg | 0.28 €0.28 $ | |||
| 14 | 52208173760 | Pin | 0.245 kg | 9.42 €9.42 $ | ||||
| 15 | 51718184155 | Washer | 0.018 kg | 2.64 €2.64 $ | ||||
| 16 | 07119900036 | Hex nut | M10 | 0.009 kg | 0.10 €0.10 $ | |||
| 17 | 52208173777 | BUCKLE SHELL | 0.033 kg | 5.93 €5.93 $ | ||||
| 18 | 52208196419 | Countersunk screw | M8X40 | 0.015 kg | 0.00 €0.00 $ | |||
| 19 | 72608120781 | Lock | 0.004 kg | 3.81 €3.81 $ | ||||
| 20 | 52208133466 | Plug | SCHWARZ | 0.001 kg | 0.65 €0.65 $ | |||
| 21 | 52208202260 | Clamp | 0.024 kg | 4.30 €4.30 $ |
