E36 M3 S50 Coupe / Engine/ Oil Pan And Dip Stick 2
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

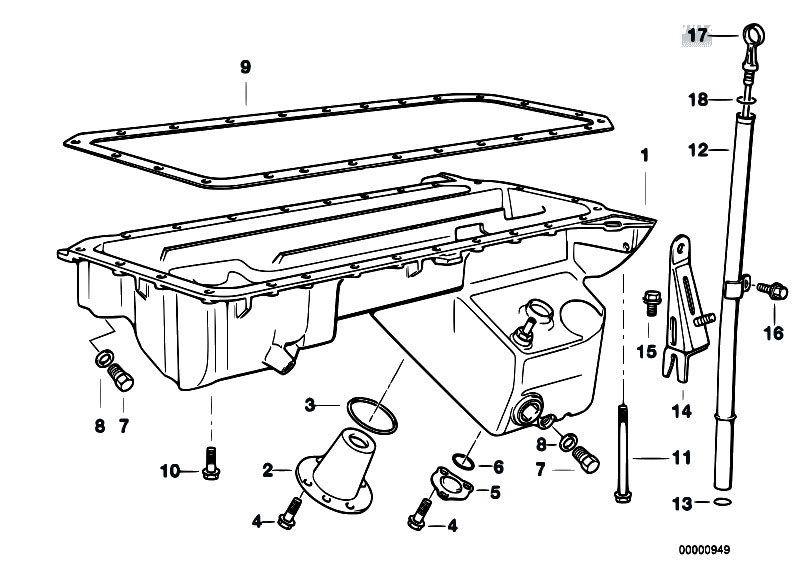

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11131404656 | Oil pan | 5.732 kg | 3,213.96 €3,213.96 $ | ||||
| 2 | 11131404657 | Cover | 0.245 kg | 261.03 €261.03 $ | ||||
| 3 | 33111214144 | O-ring | D=90MM/3MM | 0.000 kg | 3.85 €3.85 $ | |||
| 4 | 07119900250 | Hex Bolt with washer | M6X16-Z1-ZNS | 0.004 kg | 0.13 €0.13 $ | |||
| 5 | 11131726357 | Cover lid | 0.032 kg | 12.48 €12.48 $ | ||||
| 6 | 12611277129 | Gasket ring | 40X4 | 0.003 kg | 7.33 €7.33 $ | |||
| 7 | 11131273093 | Screw plug | M12X1,5 | 0.020 kg | 2.77 €2.77 $ | |||
| 8 | 07119963151 | Gasket ring | A12X17-CU | 0.000 kg | 0.53 €0.53 $ | |||
| 9 | 11131437237 | Gasket Steel | 0.139 kg | 42.59 €42.59 $ | ||||
| 10 | 07119913110 | Hex Bolt with washer | M6X25-Z1 | 0.010 kg | 0.38 €0.38 $ | |||
| 10 | 07119905400 | Hex Bolt with washer | M6X25-ZNNIV SI | 0.008 kg | 0.67 €0.67 $ | |||
| 10 | 07119915190 | Hex Bolt with washer | M6X20-Z1 | 0.007 kg | 0.13 €0.13 $ | |||
| 11 | 07119912701 | Hex Bolt with washer | M6X95-Z1 | 0.020 kg | 0.73 €0.73 $ | |||
| 11 | 07119905433 | Hex Bolt with washer | M6X95-U1 | 0.018 kg | 1.84 €1.84 $ | |||
| 12 | 11431404746 | Guide tube | 0.219 kg | 104.19 €104.19 $ | ||||
| 13 | 11431287541 | O-ring | 14,5X3 | 0.000 kg | 1.91 €1.91 $ | |||
| 14 | 11431405235 | Bracket | 0.068 kg | 10.96 €10.96 $ | ||||
| 15 | 07119913011 | Hex Bolt with washer | M8X12-Z3-1 | 0.010 kg | 1.00 €1.00 $ | |||
| 16 | 07119915017 | Hex Bolt with washer | M6X12-Z1 | 0.006 kg | 1.24 €1.24 $ | |||
| 17 | 11431404836 | Dipstick | 0.026 kg | 37.86 €37.86 $ | ||||
| 18 | 11431717666 | O-ring | 9X2,2 | 0.000 kg | 1.04 €1.04 $ |
