E36 M3 S50 Sedan / Engine/ Lubrication System Oil Pump With Drive
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

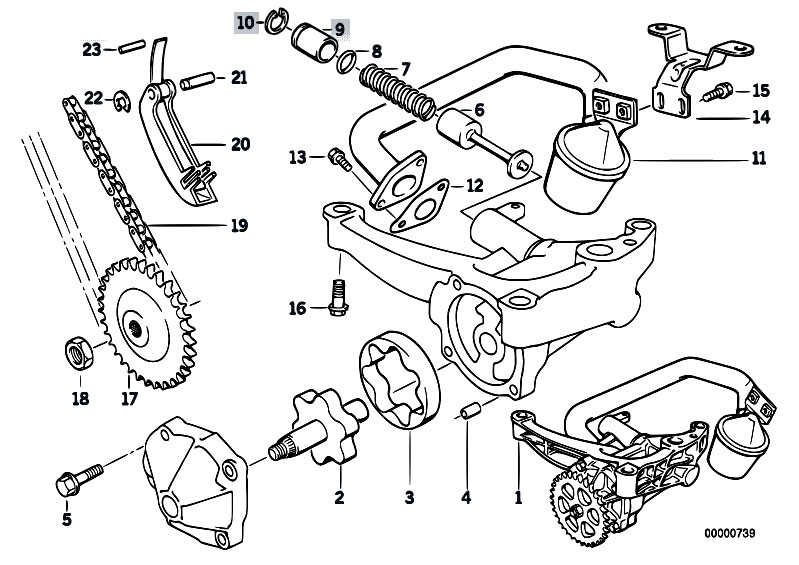

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11411740154 | Oil pump | 1.565 kg | 697.64 €697.64 $ | ||||
| 2 | 11411722905 | ROTOR INNER | 0.200 kg | 99.68 €99.68 $ | ||||
| 3 | 11411722907 | ROTOR,OUTER | 0.130 kg | 15.16 €15.16 $ | ||||
| 4 | 11411722839 | Dowel | 0.000 kg | 3.24 €3.24 $ | ||||
| 5 | 07119915046 | Hex Bolt with washer | M6X25-Z3 | 0.006 kg | 0.82 €0.82 $ | |||
| 6 | 11411719937 | CONTROL VALVE | 0.054 kg | 57.38 €57.38 $ | ||||
| 7 | 11411706809 | COIL SPRING | 0.020 kg | 4.04 €4.04 $ | ||||
| 8 | 11411722837 | O-ring | 17,0X1,8MM | 0.000 kg | 2.99 €2.99 $ | |||
| 9 | 11411722836 | Spacer bush | 0.038 kg | 6.47 €6.47 $ | ||||
| 10 | 07119934625 | Lock Ring | 21X1 | 0.000 kg | 0.99 €0.99 $ | |||
| 11 | 11411730465 | Suction pipe | 0.364 kg | 162.34 €162.34 $ | ||||
| 12 | 11411703947 | Gasket Asbestos Free | 0.001 kg | 13.95 €13.95 $ | ||||
| 13 | 07119901787 | Hex Bolt with washer | M6X20-Z1-ZNS | 0.007 kg | 0.24 €0.24 $ | |||
| 14 | 11411735260 | Bracket | 0.061 kg | 7.45 €7.45 $ | ||||
| 15 | 07119915017 | Hex Bolt with washer | M6X12-Z1 | 0.006 kg | 1.24 €1.24 $ | |||
| 16 | 07119912970 | Hex Bolt with washer | M8X45-Z3 | 0.018 kg | 2.73 €2.73 $ | |||
| 17 | 11411317284 | Sprocket | 0.182 kg | 77.80 €77.80 $ | ||||
| 18 | 11411735137 | Hex nut | M10X1-LH | 0.010 kg | 0.31 €0.31 $ | |||
| 18 | 07119905857 | Hex nut | M10X1-LH | 0.010 kg | 0.43 €0.43 $ | |||
| 19 | 11411401399 | Chain | 0.200 kg | 88.45 €88.45 $ | ||||
| 20 | 11411317650 | CHAIN TENSIONER | 0.030 kg | 24.13 €24.13 $ | ||||
| 21 | 11111706500 | Bearing bolt | 0.010 kg | 8.68 €8.68 $ | ||||
| 22 | 07119932842 | Circlip | 6,0 | 0.001 kg | 0.04 €0.04 $ | |||
| 22 | 07119905695 | Circlip | 6,0-ZNS3 | 0.000 kg | 1.07 €1.07 $ | |||
| 22 | 07119905695 | Circlip | 6,0-ZNS3 | 0.000 kg | 1.07 €1.07 $ | |||
| 23 | 07119942169 | Dowel pin | 6X32 | 0.000 kg | 1.07 €1.07 $ |
