E36 M3 S50 Sedan / Engine/ Timing And Valve Train Timing Chain
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

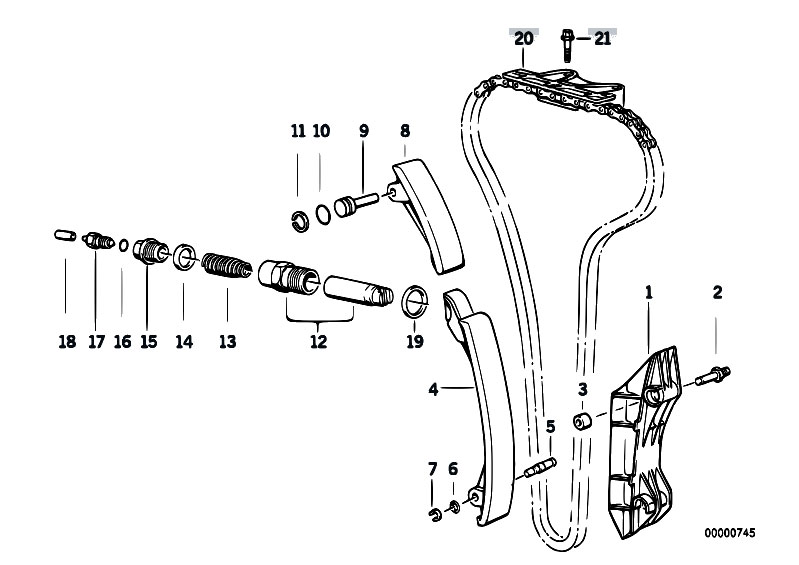

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11311317338 | SLIDE RAIL-TWIN CHAIN | 0.094 kg | 44.09 €44.09 $ | ||||
| 2 | 11311317668 | Bearing bolt | 0.020 kg | 19.81 €19.81 $ | ||||
| 3 | 11311317669 | Bush | 0.002 kg | 6.47 €6.47 $ | ||||
| 4 | 11311309945 | CHAIN TENSIONER-TWIN CHAIN | 0.187 kg | 308.07 €308.07 $ | ||||
| 5 | 11111317548 | Bearing bolt | 0.045 kg | 32.78 €32.78 $ | ||||
| 6 | 07119906328 | O-ring | 10X2 | 0.001 kg | 0.35 €0.35 $ | |||
| 7 | 07119932852 | Circlip | 7,0 | 0.001 kg | 0.04 €0.04 $ | |||
| 7 | 07119905858 | Circlip | 7,0 | 0.001 kg | 1.83 €1.83 $ | |||
| 8 | 11311317335 | CHAIN TENSIONER | 0.073 kg | 298.81 €298.81 $ | ||||
| 9 | 11311307399 | Bearing bolt | 0.038 kg | 26.15 €26.15 $ | ||||
| 10 | 11311307408 | O-ring | 14X2,5 | 0.001 kg | 2.46 €2.46 $ | |||
| 11 | 07119934628 | Lock Ring | 19X1 | 0.001 kg | 1.02 €1.02 $ | |||
| 12 | 11311307782 | CHAIN TENSIONER | 0.200 kg | 145.49 €145.49 $ | ||||
| 13 | 11311307053 | Compression spring | 0.018 kg | 20.88 €20.88 $ | ||||
| 14 | 07119963355 | Gasket ring | A22X27-AL | 0.000 kg | 0.43 €0.43 $ | |||
| 15 | 11311310752 | THREADED PIPE JOINT | 0.060 kg | 36.40 €36.40 $ | ||||
| 16 | 13641360378 | O-ring | 0.001 kg | 3.60 €3.60 $ | ||||
| 17 | 11311310753 | Vent screw | 0.013 kg | 13.04 €13.04 $ | ||||
| 18 | 11611437560 | Cap | D=3,5MM | 0.000 kg | 4.19 €4.19 $ | |||
| 19 | 07119963418 | Gasket ring | A26X31-AL | 0.000 kg | 0.73 €0.73 $ | |||
| 20 | 11311317339 | SLIDE RAIL-TWIN CHAIN | 0.087 kg | 44.09 €44.09 $ | ||||
| 21 | 07119912379 | Hex Bolt with washer | M7X35-Z1 | 0.014 kg | 1.44 €1.44 $ |
