E36 M3 S50 Sedan / Fuel Preparation System/ Throttle Housing Assembly
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

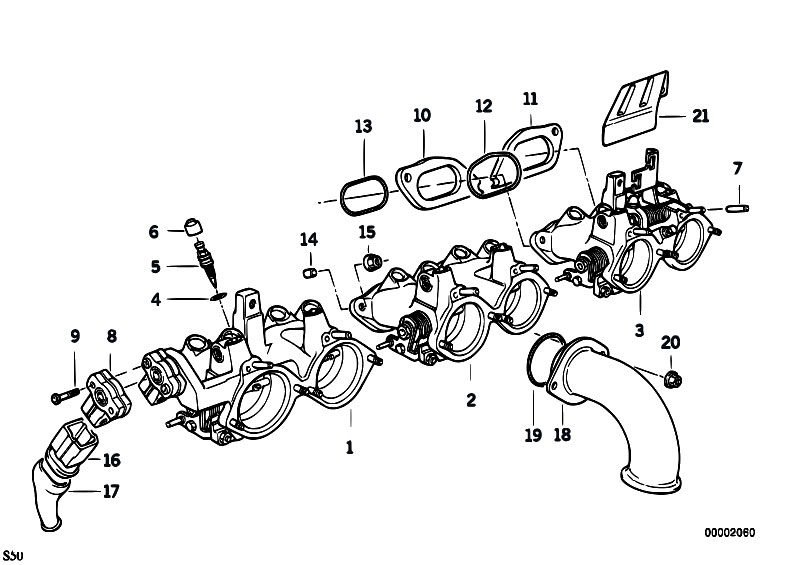

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 13541401257 | Throttle housing Assy | ZYL.1+2 | 1.063 kg | 830.49 €830.49 $ | |||
| 2 | 13541401258 | Throttle housing Assy | ZYL.3+4 | 0.891 kg | 388.77 €388.77 $ | |||
| 3 | 13541401259 | Throttle housing Assy | ZYL.5+6 | 1.210 kg | 641.42 €641.42 $ | |||
| 4 | 17211742635 | O-ring | 9,25X1,78/FPM | 0.001 kg | 4.50 €4.50 $ | |||
| 5 | 13541402567 | THROTTLE SCREW | 0.012 kg | 31.97 €31.97 $ | ||||
| 6 | 13541317831 | Cap | 0.001 kg | 4.51 €4.51 $ | ||||
| 7 | 11611437560 | Cap | D=3,5MM | 0.000 kg | 4.19 €4.19 $ | |||
| 8 | 13631402143 | THROTTLE VALVE SWITCH | 4 KOHM | 0.030 kg | 92.42 €92.42 $ | |||
| 8 | 13637840383 | THROTTLE VALVE SWITCH | 4 KOHM | 0.030 kg | 122.21 €122.21 $ | |||
| 9 | 13541726918 | Fillister head screw | M4X2,5 | 0.003 kg | 6.19 €6.19 $ | |||
| 10 | 13541403289 | FLANGE | PAAR | 0.204 kg | 196.60 €196.60 $ | |||
| 12 | 13541401297 | O-ring | 0.001 kg | 5.74 €5.74 $ | ||||
| 13 | 13541401297 | O-ring | 0.001 kg | 5.74 €5.74 $ | ||||
| 14 | 13541401886 | Dowel | 0.001 kg | 15.33 €15.33 $ | ||||
| 15 | 07129902630 | Hex nut with plate | AM7 | 0.004 kg | 0.22 €0.22 $ | |||
| 15 | 07129905541 | Hex nut with plate | AM7 ZNNIV SI | 0.000 kg | 0.78 €0.78 $ | |||
| 16 | 12521706068 | Plug housing | 3 POL. | 0.006 kg | 9.92 €9.92 $ | |||
| 17 | 61131358603 | PROTECTION CAP | L=17,5MM | 0.004 kg | 6.42 €6.42 $ | |||
| 18 | 13541401122 | Funnel | ZYL.2/4/6 | 0.143 kg | 156.34 €156.34 $ | |||
| 18 | 13541401120 | Funnel | ZYL.1/3 | 0.147 kg | 176.25 €176.25 $ | |||
| 18 | 13541401121 | Funnel | ZYL.5 | 0.166 kg | 176.25 €176.25 $ | |||
| 18 | 13541404639 | Funnel | ZYL.2/4/6 | 0.133 kg | 176.25 €176.25 $ | |||
| 19 | 13541317845 | O-ring | 0.001 kg | 3.34 €3.34 $ | ||||
| 20 | 11121401517 | Cap nut | M6 | 0.010 kg | 7.49 €7.49 $ | |||
| 21 | 13541402653 | Cover | 0.087 kg | 15.67 €15.67 $ |
