E38 728i M52 Sedan / Engine/ Cylinder Head Vanos 2
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

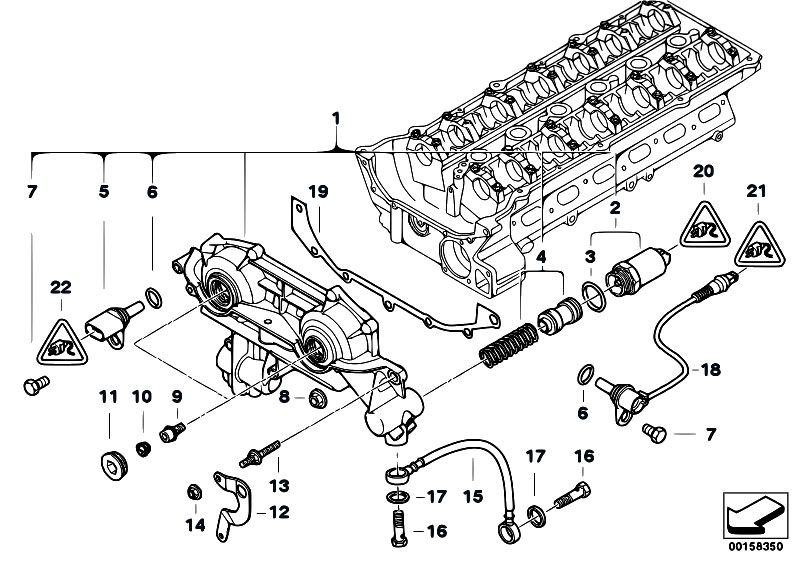

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11361440142 | AT Adjustment Unit | DOPPELVANOS | 2.490 kg | 729.28 €729.28 $ | |||
| 2 | 11361432532 | Solenoid valve (SOLV) | 0.252 kg | 594.50 €594.50 $ | ||||
| 3 | 11361703713 | O-ring | 21X2,5 | 0.001 kg | 5.69 €5.69 $ | |||
| 4 | 11361432533 | Piston | 0.019 kg | 24.37 €24.37 $ | ||||
| 4 | 11367560298 | Piston | 0.020 kg | 47.52 €47.52 $ | ||||
| 5 | 12141438082 | Pulse generator, camshaft | 0.020 kg | 81.55 €81.55 $ | ||||
| 5 | 12147518628 | Pulse generator, camshaft | 0.030 kg | 121.94 €121.94 $ | ||||
| 6 | 12141748398 | O-ring | 17X3 | 0.000 kg | 2.49 €2.49 $ | |||
| 7 | 13627545338 | Fillister head screw | M6X16ZNNIV SI | 0.010 kg | 1.11 €1.11 $ | |||
| 8 | 07129900681 | Hex nut with plate | AM6-ZNS | 0.003 kg | 0.22 €0.22 $ | |||
| 9 | 11361748745 | Fit bolt | 0.005 kg | 5.15 €5.15 $ | ||||
| 10 | 11361433513 | Blind plug | 0.000 kg | 7.41 €7.41 $ | ||||
| 11 | 11361438338 | Screw plug with gasket ring | 0.030 kg | 7.31 €7.31 $ | ||||
| 12 | 11361436071 | Bracket | 0.080 kg | 21.60 €21.60 $ | ||||
| 13 | 11361436272 | Stud bolt | 0.020 kg | 2.85 €2.85 $ | ||||
| 14 | 11361436313 | Flange nut | M7 | 0.000 kg | 1.47 €1.47 $ | |||
| 15 | 11361705532 | Oil pipe | 0.150 kg | 60.34 €60.34 $ | ||||
| 16 | 32411094908 | HOLLOW BOLT | M14X1,5X26 | 0.030 kg | 1.83 €1.83 $ | |||
| 17 | 32411093596 | Gasket ring | A14X20-CUSN | 0.002 kg | 1.39 €1.39 $ | |||
| 18 | 12141438081 | Pulse generator, camshaft | 0.050 kg | 81.55 €81.55 $ | ||||
| 18 | 12147539165 | Pulse generator, camshaft | 0.070 kg | 128.02 €128.02 $ | ||||
| 19 | 11361433817 | Gasket Steel | 0.010 kg | 21.96 €21.96 $ | ||||
| 20 | 12521427615 | Socket housing | 2 POL. | 0.006 kg | 3.37 €3.37 $ | |||
| 21 | 12521732596 | Plug housing | 3-POL | 0.008 kg | 7.69 €7.69 $ | |||
| 22 | 12521433917 | Socket housing | 3 POL. | 0.008 kg | 5.18 €5.18 $ |
