E38 728i M52 Sedan / Engine/ Lubrication System Oil Pump With Drive 2
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

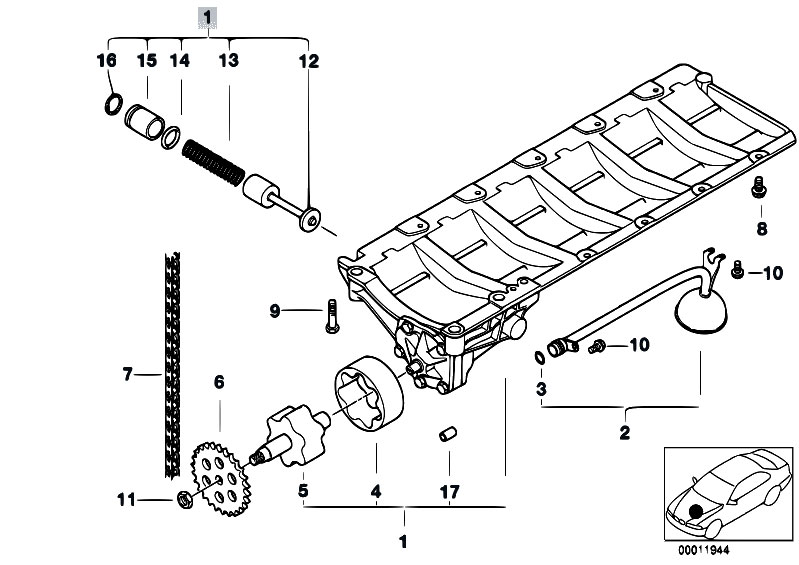

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11417507350 | Oil pump | 1.280 kg | 432.50 €432.50 $ | ||||
| 2 | 11411432735 | Suction pipe | 0.170 kg | 258.28 €258.28 $ | ||||
| 3 | 11411432727 | O-ring | 21,9X2,6 | 0.001 kg | 5.16 €5.16 $ | |||
| 4 | 11411432731 | ROTOR,OUTER | 0.196 kg | 57.16 €57.16 $ | ||||
| 5 | 11411432730 | ROTOR INNER | 0.311 kg | 89.84 €89.84 $ | ||||
| 6 | 11411432737 | Sprocket | 0.160 kg | 31.36 €31.36 $ | ||||
| 7 | 11411719936 | Chain | 0.180 kg | 23.92 €23.92 $ | ||||
| 7 | 11417576915 | Chain | 0.192 kg | 43.21 €43.21 $ | ||||
| 8 | 07119902276 | Hex Bolt with washer | M8X25-Z1 | 0.016 kg | 0.64 €0.64 $ | |||
| 9 | 07119900258 | Hex Bolt with washer | M8X55-Z1-ZNS | 0.020 kg | 0.35 €0.35 $ | |||
| 10 | 07119900250 | Hex Bolt with washer | M6X16-Z1-ZNS | 0.004 kg | 0.13 €0.13 $ | |||
| 11 | 11411735137 | Hex nut | M10X1-LH | 0.010 kg | 0.31 €0.31 $ | |||
| 11 | 07119905857 | Hex nut | M10X1-LH | 0.010 kg | 0.43 €0.43 $ | |||
| 12 | 11411716410 | CONTROL VALVE | 0.018 kg | 23.49 €23.49 $ | ||||
| 13 | 11417502774 | COIL SPRING | 0.015 kg | 26.67 €26.67 $ | ||||
| 14 | 11411722837 | O-ring | 17,0X1,8MM | 0.000 kg | 2.99 €2.99 $ | |||
| 15 | 11411703950 | Spacer bush | 0.010 kg | 6.60 €6.60 $ | ||||
| 16 | 07119934625 | Lock Ring | 21X1 | 0.000 kg | 0.99 €0.99 $ | |||
| 17 | 11411722839 | Dowel | 0.000 kg | 3.04 €3.04 $ |
