E38 728iL M52 Sedan / Engine/ Intake Manifold System
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

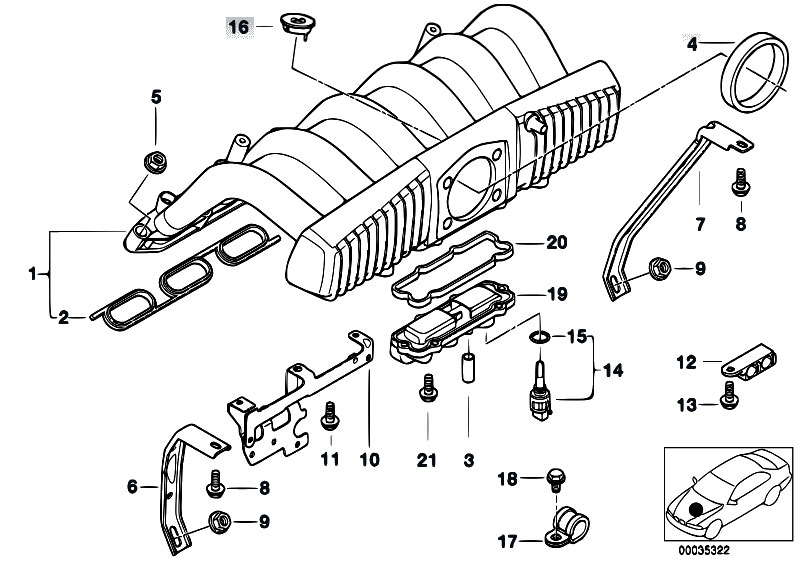

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11611707034 | Intake manifold | 2.885 kg | 617.26 €617.26 $ | ||||
| 2 | 11611740069 | Profile-gasket | 0.010 kg | 17.34 €17.34 $ | ||||
| 3 | 11611437560 | Cap | D=3,5MM | 0.000 kg | 4.19 €4.19 $ | |||
| 4 | 11611716174 | Profile-gasket | 0.012 kg | 13.71 €13.71 $ | ||||
| 5 | 07129902630 | Hex nut with plate | AM7 | 0.004 kg | 0.22 €0.22 $ | |||
| 6 | 11611407066 | FRONT INTAKE MANIFOLD SUPPORT | 0.173 kg | 20.64 €20.64 $ | ||||
| 7 | 11611427354 | REAR INTAKE MANIFOLD SUPPORT | 0.185 kg | 20.64 €20.64 $ | ||||
| 8 | 07119901787 | Hex Bolt with washer | M6X20-Z1-ZNS | 0.007 kg | 0.24 €0.24 $ | |||
| 9 | 07129900644 | Hex nut with plate | AM8-ZNS | 0.007 kg | 0.31 €0.31 $ | |||
| 9 | 07129904862 | Hex nut with plate | M8-ZNS3 | 0.010 kg | 1.56 €1.56 $ | |||
| 10 | 11611703780 | Universal holder | 0.215 kg | 20.72 €20.72 $ | ||||
| 11 | 07119900272 | Hex Bolt with washer | M6X12-Z1-ZNS | 0.005 kg | 0.15 €0.15 $ | |||
| 11 | 07119904517 | Hex Bolt with washer | M6X12-U1-8.8 | 0.010 kg | 0.40 €0.40 $ | |||
| 12 | 13311722326 | Clip | 0.005 kg | 2.53 €2.53 $ | ||||
| 13 | 11611740136 | Screw | 0.006 kg | 2.76 €2.76 $ | ||||
| 14 | 13621739510 | Temperature sensor air | 0.010 kg | 76.33 €76.33 $ | ||||
| 15 | 13621743299 | O-ring | 8X3 | 0.000 kg | 2.18 €2.18 $ | |||
| 16 | 12421433212 | COVERING BASE B+ | 0.015 kg | 13.88 €13.88 $ | ||||
| 19 | 11611703778 | Cover | 0.097 kg | 30.38 €30.38 $ | ||||
| 20 | 11611703779 | Gasket | 0.008 kg | 21.36 €21.36 $ | ||||
| 21 | 11611740136 | Screw | 0.006 kg | 2.76 €2.76 $ |
