E38 730d M57 Sedan / Engine/ Oil Pan Oil Level Indicator
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

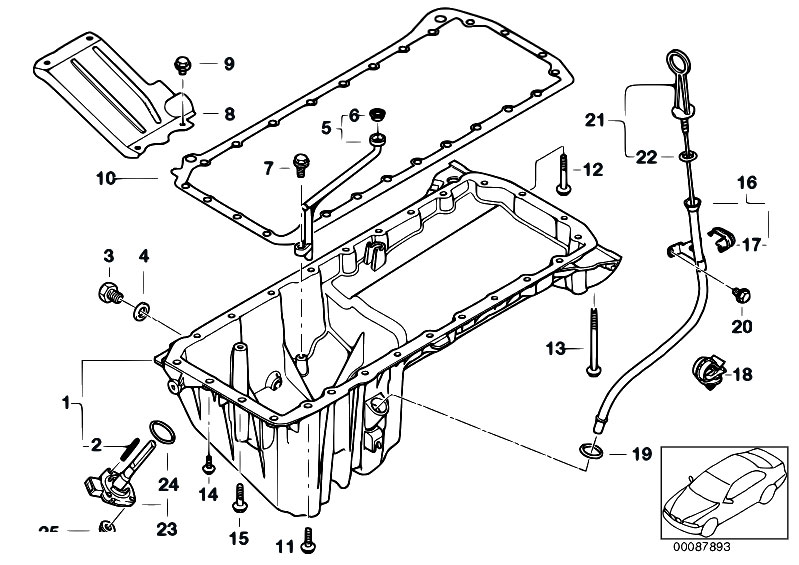

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11132246907 | Oil pan | 4.500 kg | 744.08 €744.08 $ | ||||
| 2 | 07129908102 | Stud bolt | M6X30-ZN | 0.004 kg | 0.51 €0.51 $ | |||
| 3 | 11137535106 | Screw plug | M12X16 | 0.020 kg | 5.22 €5.22 $ | |||
| 4 | 07119963151 | Gasket ring | A12X17-CU | 0.000 kg | 0.53 €0.53 $ | |||
| 5 | 11132247756 | Return pipe | 0.022 kg | 15.92 €15.92 $ | ||||
| 6 | 11132247759 | Gasket ring | 0.001 kg | 5.77 €5.77 $ | ||||
| 7 | 11721742766 | Collar screw | M6X25 | 0.005 kg | 7.74 €7.74 $ | |||
| 8 | 11132249614 | Oil deflector | 0.308 kg | 35.13 €35.13 $ | ||||
| 9 | 11731437790 | Collar screw | M6 X 16 | 0.010 kg | 0.43 €0.43 $ | |||
| 9 | 12517805605 | Collar screw | M6 X 16 | 0.010 kg | 2.35 €2.35 $ | |||
| 10 | 11130149329 | Gasket, oil pan | 0.090 kg | 49.58 €49.58 $ | ||||
| 11 | 11132246986 | Original OEM part | 0.100 kg | 0.51 €0.51 $ | ||||
| 11 | 11137800619 | Torx bolt | M6X22 | 0.010 kg | 1.19 €1.19 $ | |||
| 12 | 11132246987 | Original OEM part | 0.100 kg | 0.80 €0.80 $ | ||||
| 12 | 11137800622 | Torx bolt | M6X60 | 0.020 kg | 1.89 €1.89 $ | |||
| 13 | 11137800623 | Torx bolt | M6X100 | 0.020 kg | 2.54 €2.54 $ | |||
| 14 | 11137800621 | Torx bolt | M8X30 | 0.010 kg | 1.49 €1.49 $ | |||
| 15 | 11132246990 | Original OEM part | 0.100 kg | 1.49 €1.49 $ | ||||
| 15 | 11137800624 | Torx bolt | M8X80 | 0.030 kg | 22.87 €22.87 $ | |||
| 16 | 11432247936 | Guide tube | 0.211 kg | 75.35 €75.35 $ | ||||
| 17 | 61131269331 | Cable holder | 13,5X23,5MM | 0.000 kg | 1.19 €1.19 $ | |||
| 18 | 61138368029 | Cable clamp | 0.000 kg | 1.07 €1.07 $ | ||||
| 19 | 11437794698 | O-ring | 14X3 | 0.000 kg | 2.35 €2.35 $ | |||
| 20 | 07119905525 | Hex Bolt with washer | M6X14-U1-8.8 | 0.006 kg | 0.67 €0.67 $ | |||
| 20 | 61137786715 | Torx bolt | M6X19 | 0.008 kg | 0.91 €0.91 $ | |||
| 21 | 11437785143 | Dipstick | 0.026 kg | 37.86 €37.86 $ | ||||
| 22 | 11431717666 | O-ring | 9X2,2 | 0.000 kg | 1.04 €1.04 $ | |||
| 23 | 12617508003 | Oil levelling sensor | 0.091 kg | 290.15 €290.15 $ | ||||
| 24 | 12611744292 | Gasket ring | 0.000 kg | 6.42 €6.42 $ | ||||
| 25 | 07129905411 | Hex nut | BM6-8-ZNNIV SI | 0.000 kg | 0.82 €0.82 $ |
