E38 735i M62 Sedan / Engine/ Valve Timing Gear Cam Shaft
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

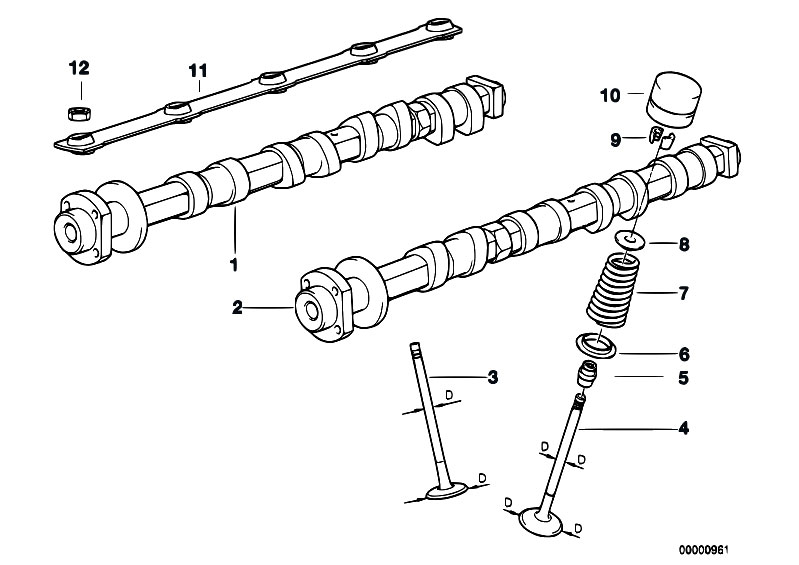

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11311742189 | Inlet camshaft | ZYL.1-4 | 2.883 kg | 535.22 €535.22 $ | |||
| 1 | 11311742189 | Inlet camshaft | ZYL.1-4 | 2.883 kg | 535.22 €535.22 $ | |||
| 1 | 11311742193 | Inlet camshaft | ZYL.5-8 | 2.883 kg | 417.41 €417.41 $ | |||
| 1 | 11311742193 | Inlet camshaft | ZYL.5-8 | 2.883 kg | 417.41 €417.41 $ | |||
| 2 | 11311742191 | Outlet camshaft | ZYL.1-4 | 2.883 kg | 417.41 €417.41 $ | |||
| 2 | 11311742191 | Outlet camshaft | ZYL.1-4 | 2.883 kg | 417.41 €417.41 $ | |||
| 2 | 11311742195 | Outlet camshaft | ZYL.5-8 | 2.883 kg | 417.41 €417.41 $ | |||
| 2 | 11311742195 | Outlet camshaft | ZYL.5-8 | 2.883 kg | 417.41 €417.41 $ | |||
| 3 | 11341435476 | Intake valve | 32,0/5,94MM | 0.043 kg | 43.32 €43.32 $ | |||
| 3 | 11341435476 | Intake valve | 32,0/5,94MM | 0.043 kg | 43.32 €43.32 $ | |||
| 3 | 11341736568 | INTAKE VALVE W.OVERSIZE VA.SYSTEM +0,1MM | 32,0/6,04MM | 0.045 kg | 26.67 €26.67 $ | |||
| 3 | 11341736568 | INTAKE VALVE W.OVERSIZE VA.SYSTEM +0,1MM | 32,0/6,04MM | 0.045 kg | 26.67 €26.67 $ | |||
| 3 | 11341736569 | INTAKE VALVE W.OVERSIZE VA.SYSTEM +0,2MM | 32,0/6,14MM | 0.047 kg | 26.67 €26.67 $ | |||
| 3 | 11341736569 | INTAKE VALVE W.OVERSIZE VA.SYSTEM +0,2MM | 32,0/6,14MM | 0.047 kg | 26.67 €26.67 $ | |||
| 4 | 11341435478 | Exhaust valve | 28,5/5,94MM | 0.045 kg | 37.86 €37.86 $ | |||
| 4 | 11341435478 | Exhaust valve | 28,5/5,94MM | 0.045 kg | 37.86 €37.86 $ | |||
| 4 | 11341736577 | EXH. VALVE W.OVERSIZE VA.SYSTEM +0,1MM | 28,5/6,04MM | 0.045 kg | 50.04 €50.04 $ | |||
| 4 | 11341736577 | EXH. VALVE W.OVERSIZE VA.SYSTEM +0,1MM | 28,5/6,04MM | 0.045 kg | 50.04 €50.04 $ | |||
| 4 | 11341736578 | EXHAUST VALVE W.OVERSIZE VA.SYSTEM+0,2MM | 28,5/6,14MM | 0.046 kg | 50.04 €50.04 $ | |||
| 4 | 11341736578 | EXHAUST VALVE W.OVERSIZE VA.SYSTEM+0,2MM | 28,5/6,14MM | 0.046 kg | 50.04 €50.04 $ | |||
| 5 | 11349063193 | Repair kit valve seal ring | 0.024 kg | 69.22 €69.22 $ | ||||
| 5 | 11349063193 | Repair kit valve seal ring | 0.024 kg | 69.22 €69.22 $ | ||||
| 6 | 11341735254 | LOWER SPRING POCKET | 0.000 kg | 7.91 €7.91 $ | ||||
| 6 | 11341735254 | LOWER SPRING POCKET | 0.000 kg | 7.91 €7.91 $ | ||||
| 7 | 11341435490 | Valve spring | 0.034 kg | 14.17 €14.17 $ | ||||
| 7 | 11341435490 | Valve spring | 0.034 kg | 14.17 €14.17 $ | ||||
| 8 | 11341432453 | Upper spring plate | 0.008 kg | 12.96 €12.96 $ | ||||
| 8 | 11341432453 | Upper spring plate | 0.008 kg | 12.96 €12.96 $ | ||||
| 9 | 11341461405 | Valve collet | D=6 | 0.000 kg | 2.32 €2.32 $ | |||
| 9 | 11341461405 | Valve collet | D=6 | 0.000 kg | 2.32 €2.32 $ | |||
| 10 | 11321440256 | Hydraulic valve lifter | 0.052 kg | 62.73 €62.73 $ | ||||
| 10 | 11321440256 | Hydraulic valve lifter | 0.052 kg | 62.73 €62.73 $ | ||||
| 11 | 11421725406 | Oil pipe | ZYL.1-4 | 0.080 kg | 51.96 €51.96 $ | |||
| 11 | 11421725406 | Oil pipe | ZYL.1-4 | 0.080 kg | 51.96 €51.96 $ | |||
| 11 | 11421725408 | Oil pipe | ZYL.5-8 | 0.085 kg | 51.96 €51.96 $ | |||
| 11 | 11421725408 | Oil pipe | ZYL.5-8 | 0.085 kg | 51.96 €51.96 $ | |||
| 12 | 07119900398 | Hex nut | M6-ZNS | 0.004 kg | 0.17 €0.17 $ | |||
| 12 | 07119900398 | Hex nut | M6-ZNS | 0.004 kg | 0.17 €0.17 $ | |||
| 12 | 07119905544 | Hex nut | M6-8-ZNNIV SI | 0.000 kg | 0.40 €0.40 $ | |||
| 12 | 07119905544 | Hex nut | M6-8-ZNNIV SI | 0.000 kg | 0.40 €0.40 $ |
