E38 735iL M62 Sedan / Engine/ Timing Timing Chain Lower P 2
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

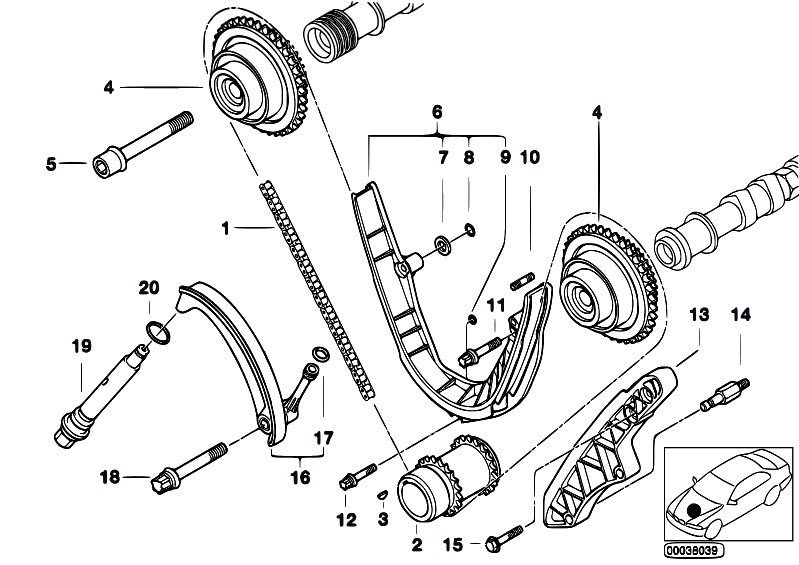

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11311741746 | TIMING CHAIN | 0.808 kg | 123.05 €123.05 $ | ||||
| 2 | 11211742435 | Sprocket | 0.539 kg | 137.61 €137.61 $ | ||||
| 3 | 07119951480 | WOODRUFF KEY | 5X6,5 | 0.002 kg | 1.37 €1.37 $ | |||
| 4 | 11361438694 | camshaft adjuster unit with pinion | 1.059 kg | 774.22 €774.22 $ | ||||
| 5 | 11361432438 | Torx bolt | M12X1,5X85 | 0.095 kg | 8.27 €8.27 $ | |||
| 6 | 11311741777 | DEFLECTION RAIL | 0.476 kg | 129.05 €129.05 $ | ||||
| 7 | 11311742468 | AIR REDUCER | 0.001 kg | 2.24 €2.24 $ | ||||
| 8 | 07119906363 | O-ring | 11,2X1,8 | 0.001 kg | 0.93 €0.93 $ | |||
| 9 | 11141736758 | Gasket ring | 8,1X3,5X7,7 | 0.000 kg | 3.15 €3.15 $ | |||
| 10 | 11151736960 | Grub screw | 0.004 kg | 6.70 €6.70 $ | ||||
| 11 | 11311741808 | Torx bolt | M7X28 | 0.012 kg | 10.07 €10.07 $ | |||
| 12 | 11311731952 | Torx bolt | M6X25 | 0.009 kg | 2.23 €2.23 $ | |||
| 13 | 11311745406 | GUIDE RAIL | 0.124 kg | 95.86 €95.86 $ | ||||
| 14 | 11311745409 | Bearing bolt | 0.030 kg | 19.81 €19.81 $ | ||||
| 15 | 07119903862 | Hex Bolt with washer | M6X50-U1-ZNS3 | 0.012 kg | 0.63 €0.63 $ | |||
| 16 | 11311741236 | CHAIN TENSIONER | 0.329 kg | 122.12 €122.12 $ | ||||
| 17 | 11421713597 | O-ring | 6,0X2,5 | 0.000 kg | 3.92 €3.92 $ | |||
| 18 | 11311741254 | Torx bolt | M10X60 | 0.043 kg | 10.07 €10.07 $ | |||
| 19 | 11317531813 | CHAIN TENSIONER | 0.120 kg | 182.91 €182.91 $ | ||||
| 20 | 07119963355 | Gasket ring | A22X27-AL | 0.000 kg | 0.43 €0.43 $ |
