E38 735iL M62 Sedan / Fuel Supply/ Metal Fuel Tank
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

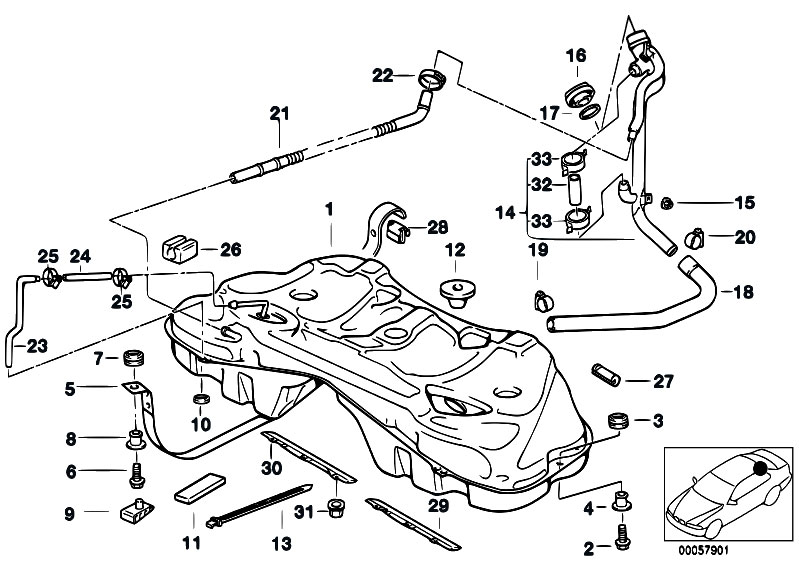

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 16111182044 | METAL FUEL TANK | 95L | 16.200 kg | 1,985.27 €1,985.27 $ | |||
| 1 | 16111181867 | METAL FUEL TANK | 85L | 16.200 kg | 2,162.41 €2,162.41 $ | |||
| 2 | 07119915117 | Hex Bolt with washer | M8X30-Z1 | 0.020 kg | 0.67 €0.67 $ | |||
| 3 | 16111182359 | Rubber grommet | 0.005 kg | 12.80 €12.80 $ | ||||
| 4 | 16111182360 | Spacer | 0.016 kg | 8.53 €8.53 $ | ||||
| 5 | 16111182451 | Holding strap | 85L | 0.460 kg | 25.68 €25.68 $ | |||
| 5 | 16111182517 | Holding strap | 95L | 0.474 kg | 25.68 €25.68 $ | |||
| 5 | 16111182451 | Holding strap | 85L | 0.460 kg | 25.68 €25.68 $ | |||
| 6 | 07119915117 | Hex Bolt with washer | M8X30-Z1 | 0.020 kg | 0.67 €0.67 $ | |||
| 7 | 16111182454 | Rubber grommet | 0.003 kg | 3.39 €3.39 $ | ||||
| 8 | 16111182545 | Spacer | 0.010 kg | 1.26 €1.26 $ | ||||
| 9 | 16111181868 | WEDGE | 0.018 kg | 7.06 €7.06 $ | ||||
| 10 | 16131152490 | Grommet | 0.000 kg | 10.81 €10.81 $ | ||||
| 11 | 16111182358 | Base | 57X24 | 0.007 kg | 16.76 €16.76 $ | |||
| 12 | 16111182944 | RUBBER BUFFER | D=50MM | 0.019 kg | 8.29 €8.29 $ | |||
| 12 | 16111183086 | RUBBER BUFFER | 0.038 kg | 8.89 €8.89 $ | ||||
| 13 | 61131367599 | Cable strap | L=200MM/B=3,6MM | 0.001 kg | 0.50 €0.50 $ | |||
| 14 | 16111184667 | PLASTIC FILLER PIPE | 0.800 kg | 243.91 €243.91 $ | ||||
| 14 | 16111184667 | PLASTIC FILLER PIPE | 0.800 kg | 243.91 €243.91 $ | ||||
| 14 | 16116752477 | PLASTIC FILLER PIPE | 0.825 kg | 285.26 €285.26 $ | ||||
| 15 | 07129946302 | Hex nut with plate | BM6 | 0.000 kg | 0.24 €0.24 $ | |||
| 15 | 07129900299 | Hex nut with plate | BM6 | 0.005 kg | 0.92 €0.92 $ | |||
| 16 | 16111184718 | FILLER CAP WITHOUT LOCK | 0.090 kg | 23.22 €23.22 $ | ||||
| 16 | 16111184664 | FILLER CAP WITHOUT LOCK | 0.090 kg | 34.15 €34.15 $ | ||||
| 17 | 16111179680 | Rubber seal | 0.004 kg | 8.38 €8.38 $ | ||||
| 18 | 16111182200 | Hose | 0.210 kg | 64.09 €64.09 $ | ||||
| 18 | 16111183331 | Hose | 0.231 kg | 148.57 €148.57 $ | ||||
| 18 | 16111182200 | Hose | 0.210 kg | 64.09 €64.09 $ | ||||
| 19 | 07129952117 | Hose clamp | L37-43 | 0.020 kg | 2.23 €2.23 $ | |||
| 20 | 07129952119 | Hose clamp | L42-48 | 0.020 kg | 3.27 €3.27 $ | |||
| 21 | 16111182278 | Vent hose | 0.114 kg | 34.13 €34.13 $ | ||||
| 21 | 16131184080 | Vent hose | 0.125 kg | 40.79 €40.79 $ | ||||
| 22 | 11631716970 | Hose clamp | 23,9-27,1 | 0.000 kg | 1.65 €1.65 $ | |||
| 23 | 16111182105 | Pipe | D=8MM | 0.037 kg | 38.53 €38.53 $ | |||
| 24 | 16121180409 | Fuel hose | 8X13MM | 0.143 kg | 40.97 €40.97 $ | |||
| 24 | 13537563456 | Fuel hose | 8X13MM | 0.100 kg | 52.44 €52.44 $ | |||
| 25 | 07129952104 | Hose clamp | L12-15 | 0.010 kg | 1.68 €1.68 $ | |||
| 26 | 16121182106 | RUBBER BUFFER | D=8MM | 0.004 kg | 8.53 €8.53 $ | |||
| 27 | 16141182579 | Edge protection | 140MM | 0.008 kg | 10.30 €10.30 $ | |||
| 28 | 16111183136 | Damper rubber | 0.000 kg | 10.91 €10.91 $ | ||||
| 32 | 16111183710 | Fuel hose | 15X21MM | 0.480 kg | 50.59 €50.59 $ | |||
| 32 | 16111183710 | Fuel hose | 15X21MM | 0.480 kg | 50.59 €50.59 $ | |||
| 32 | 16111183710 | Fuel hose | 15X21MM | 0.480 kg | 50.59 €50.59 $ | |||
| 33 | 16131178921 | Hose clamp | 0.004 kg | 2.41 €2.41 $ | ||||
| 33 | 16131178921 | Hose clamp | 0.004 kg | 2.41 €2.41 $ | ||||
| 33 | 16131178921 | Hose clamp | 0.004 kg | 2.41 €2.41 $ |
