E38 735iL M62 Sedan / Pedals/ Parking Brake Pedal
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

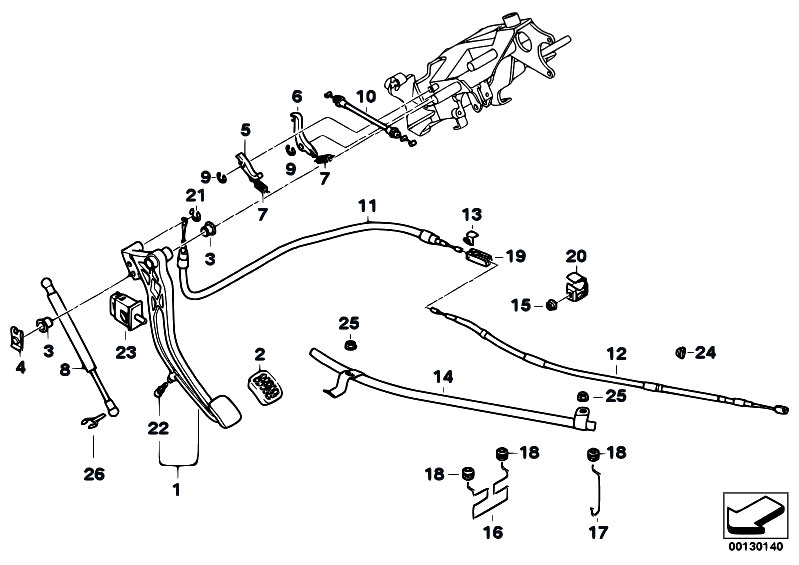

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 35511162008 | PARKING BRAKE PEDAL LEVER | 0.388 kg | 41.29 €41.29 $ | ||||
| 1 | 35511165453 | PARKING BRAKE PEDAL LEVER | 0.391 kg | 44.08 €44.08 $ | ||||
| 1 | 35511162944 | PARKING BRAKE PEDAL LEVER | 0.389 kg | 44.08 €44.08 $ | ||||
| 1 | 35511165454 | PARKING BRAKE PEDAL LEVER | 0.395 kg | 44.08 €44.08 $ | ||||
| 2 | 35511161137 | Rubber pad | 0.014 kg | 13.34 €13.34 $ | ||||
| 3 | 35211158290 | Bush bearing | 0.000 kg | 2.54 €2.54 $ | ||||
| 4 | 07129934921 | Flat fuses | B10 | 0.003 kg | 0.32 €0.32 $ | |||
| 5 | 35511161138 | RATCHED-PIN | 0.020 kg | 10.60 €10.60 $ | ||||
| 6 | 35511162558 | RELEASING LEVER | 0.006 kg | 10.29 €10.29 $ | ||||
| 7 | 35511162021 | TENSION SPRING | 0.002 kg | 2.00 €2.00 $ | ||||
| 8 | 35511165574 | Damper | D=8MM | 0.097 kg | 92.42 €92.42 $ | |||
| 8 | 35511165407 | Damper | D=10MM | 0.111 kg | 39.25 €39.25 $ | |||
| 9 | 07119932842 | Circlip | 6,0 | 0.001 kg | 0.04 €0.04 $ | |||
| 9 | 07119905695 | Circlip | 6,0-ZNS3 | 0.000 kg | 1.07 €1.07 $ | |||
| 10 | 35511161142 | BOWDEN CABLE F RELEASING MECHANISM | 0.017 kg | 15.49 €15.49 $ | ||||
| 10 | 35511161728 | BOWDEN CABLE F RELEASING MECHANISM | 0.031 kg | 17.90 €17.90 $ | ||||
| 11 | 35511161977 | PARKING BRAKE PEDAL BOWDEN CABLE | L=2210MM | 0.330 kg | 49.68 €49.68 $ | |||
| 11 | 35511161978 | PARKING BRAKE PEDAL BOWDEN CABLE | L=2180MM | 0.258 kg | 49.68 €49.68 $ | |||
| 12 | 35511161473 | LEFT PARKING BRAKE PEDAL BOWDEN CABLE | 0.478 kg | 73.68 €73.68 $ | ||||
| 12 | 35511161474 | RIGHT PARKING BRAKE PEDAL BOWDEN CABLE | 0.267 kg | 73.68 €73.68 $ | ||||
| 13 | 35511162903 | Clamp | 0.001 kg | 1.99 €1.99 $ | ||||
| 14 | 35511161475 | Pipe | 0.151 kg | 156.10 €156.10 $ | ||||
| 15 | 31331092887 | Self-locking collar nut | M8-8-ZNS | 0.007 kg | 0.49 €0.49 $ | |||
| 15 | 07119904295 | Self-locking collar nut | M8-8-ZNS3 | 0.010 kg | 0.40 €0.40 $ | |||
| 16 | 35511161792 | Support | 0.017 kg | 5.58 €5.58 $ | ||||
| 17 | 34411152228 | HOOK | 0.006 kg | 21.54 €21.54 $ | ||||
| 18 | 34411102688 | Grommet | 0.000 kg | 3.49 €3.49 $ | ||||
| 19 | 35511161500 | Connection piece | 0.013 kg | 18.87 €18.87 $ | ||||
| 20 | 35511161876 | Pipe clamp | 0.000 kg | 2.55 €2.55 $ | ||||
| 21 | 07129934208 | Circlip | D8,0 | 0.001 kg | 2.51 €2.51 $ | |||
| 22 | 13511287584 | BALL PIN | D=8MM/M5 | 0.005 kg | 3.65 €3.65 $ | |||
| 22 | 07119901557 | BALL PIN | D=10MM/M6 | 0.008 kg | 1.77 €1.77 $ | |||
| 23 | 61311388278 | Switch | 0.009 kg | 15.57 €15.57 $ | ||||
| 24 | 34411160117 | Rubber grommet | D=22MM | 0.010 kg | 2.43 €2.43 $ | |||
| 25 | 35511163112 | Self-locking hex nut | M8 | 0.009 kg | 41.97 €41.97 $ | |||
| 26 | 35501165575 | SAFETY CLIP | 0.001 kg | 4.24 €4.24 $ |
