E38 740iL M60 Sedan / Engine/ Cylinder Head
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

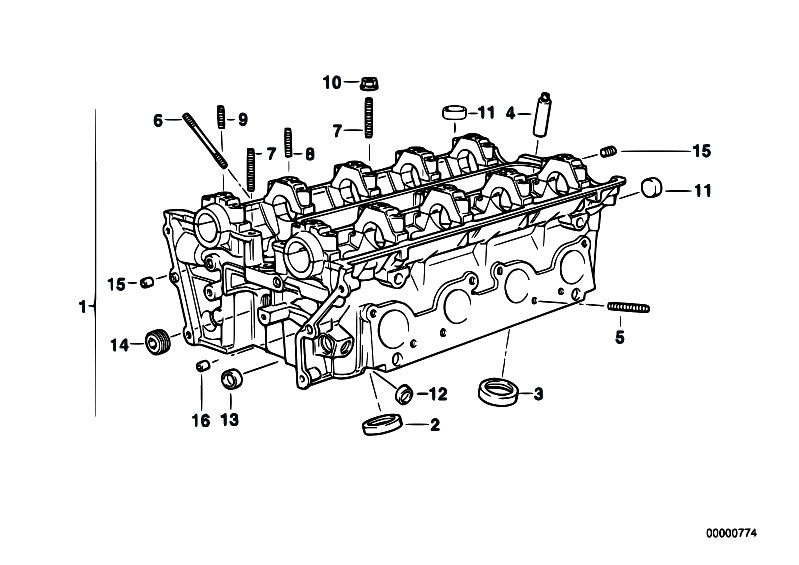

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11121731910 | Cylinder head | ZYL.1-4 | 13.180 kg | 2,985.36 €2,985.36 $ | |||
| 1 | 11121731911 | Cylinder head | ZYL.5-8 | 13.590 kg | 2,985.36 €2,985.36 $ | |||
| 2 | 11121731777 | Valve Seat Ring Intake | 36,50MM(+0,4) | 0.017 kg | 18.72 €18.72 $ | |||
| 3 | 11121721153 | Valve Seat Ring Exhaust | 32,00MM(+0,4) | 0.018 kg | 18.40 €18.40 $ | |||
| 4 | 11121735533 | Valve Guide | 12,7MM(+0,2) | 0.000 kg | 0.00 €0.00 $ | |||
| 5 | 07129908157 | Stud bolt | M8X42-10.9-PHR | 0.010 kg | 0.89 €0.89 $ | |||
| 6 | 07129908098 | Stud bolt | M7X70 | 0.017 kg | 2.35 €2.35 $ | |||
| 7 | 07129908191 | Stud bolt | M7X50-10.9-PHR | 0.010 kg | 2.23 €2.23 $ | |||
| 8 | 07129908102 | Stud bolt | M6X30-ZN | 0.004 kg | 0.51 €0.51 $ | |||
| 9 | 07129908100 | Stud bolt | M6X25-ZN | 0.000 kg | 1.68 €1.68 $ | |||
| 10 | 11617573839 | Flange nut | M7 | 0.000 kg | 3.08 €3.08 $ | |||
| 11 | 11121733403 | Cover lid | 22,0MM | 0.010 kg | 5.47 €5.47 $ | |||
| 12 | 11121736330 | Cover lid | 12,0MM | 0.002 kg | 3.95 €3.95 $ | |||
| 13 | 11121736875 | Cover lid | 17,8MM | 0.000 kg | 3.53 €3.53 $ | |||
| 13 | 11121704949 | Cover lid | 14,0MM | 0.002 kg | 1.59 €1.59 $ | |||
| 14 | 07119919033 | Screw plug | M26X1,5 | 0.038 kg | 2.06 €2.06 $ | |||
| 15 | 11127539543 | Screw plug | M10X1 | 0.000 kg | 17.45 €17.45 $ | |||
| 15 | 11127539543 | Screw plug | M10X1 | 0.000 kg | 17.45 €17.45 $ | |||
| 16 | 11121726242 | Dowel | D=8,5X9MM | 0.000 kg | 1.04 €1.04 $ |
