E39 520d M47 Sedan / Engine/ Intake Manifold Supercharg Air Duct
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

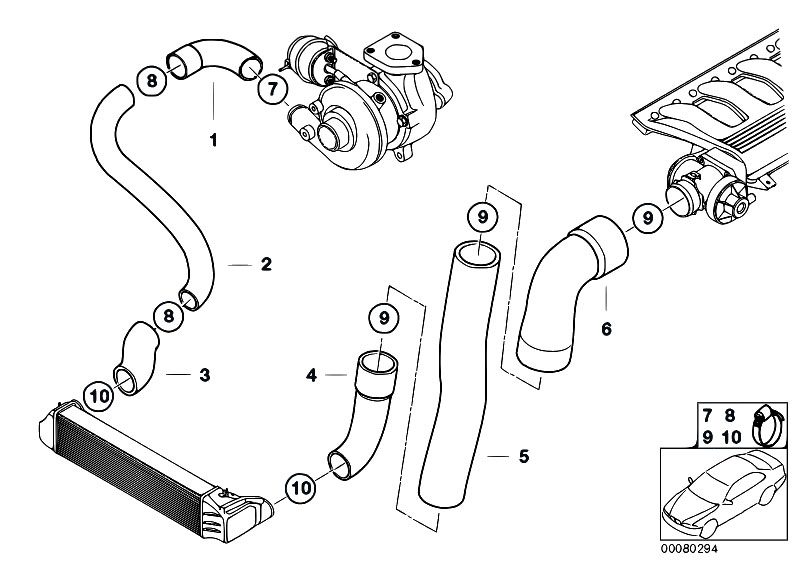

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11617785250 | Pressure hose assy | 0.179 kg | 94.25 €94.25 $ | ||||
| 1 | 11617787888 | Pressure hose assy | 0.222 kg | 82.79 €82.79 $ | ||||
| 2 | 11617785249 | Pressure pipe | 0.138 kg | 70.23 €70.23 $ | ||||
| 3 | 11617785248 | Pressure hose assy | 0.300 kg | 86.89 €86.89 $ | ||||
| 3 | 11617787889 | Pressure hose assy | 0.305 kg | 82.79 €82.79 $ | ||||
| 4 | 11617785396 | Pressure hose assy | 0.310 kg | 85.99 €85.99 $ | ||||
| 5 | 11612247323 | Charge air tube | 0.311 kg | 181.76 €181.76 $ | ||||
| 6 | 11617799391 | Pressure hose assy | 0.177 kg | 154.50 €154.50 $ | ||||
| 7 | 11617786524 | Hose clamp | D= 32-50MM | 0.000 kg | 5.85 €5.85 $ | |||
| 8 | 11617786526 | Hose clamp | D=53-60MM | 0.038 kg | 8.97 €8.97 $ | |||
| 9 | 11617786527 | Hose clamp | D= 59-68MM | 0.040 kg | 9.10 €9.10 $ | |||
| 10 | 11617786528 | Hose clamp | D= 65-72MM | 0.040 kg | 9.07 €9.07 $ |
