E39 520d M47 Touring / Engine/ Vacum Control Engine Turbo Charger
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

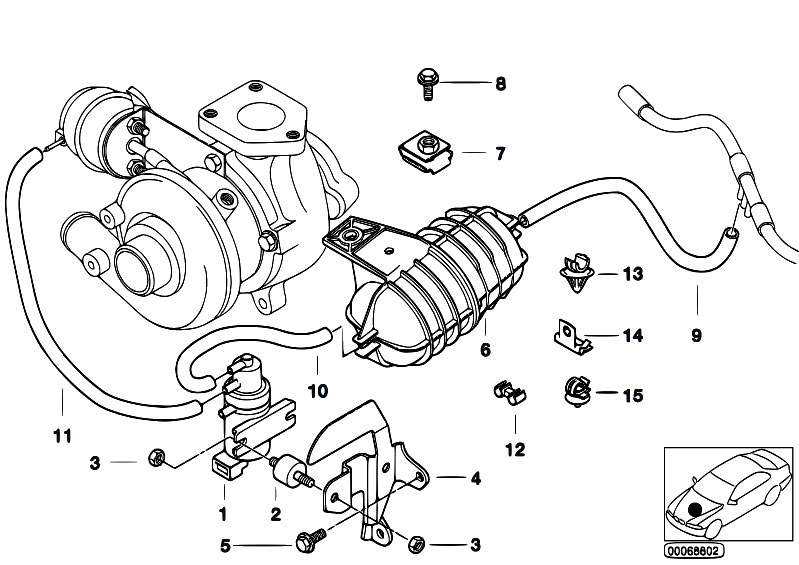

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11747796634 | PRESSURE CONVERTER | 0.210 kg | 168.65 €168.65 $ | ||||
| 2 | 11652247721 | Rubber mounting | 0.020 kg | 6.57 €6.57 $ | ||||
| 3 | 07129905411 | Hex nut | BM6-8-ZNNIV SI | 0.000 kg | 0.82 €0.82 $ | |||
| 4 | 11657786241 | Bracket | 0.090 kg | 26.87 €26.87 $ | ||||
| 5 | 07119900272 | Hex Bolt with washer | M6X12-Z1-ZNS | 0.005 kg | 0.15 €0.15 $ | |||
| 6 | 11652247620 | Vacuum tank | 0.120 kg | 34.70 €34.70 $ | ||||
| 7 | 11657785151 | Bracket, vacuum reservoir | 0.024 kg | 16.37 €16.37 $ | ||||
| 8 | 07119915164 | Hex Bolt with washer | M8X22-Z1 | 0.015 kg | 0.67 €0.67 $ | |||
| 9 | 11727545323 | VACUUM HOSE BLACK | 3,5X1,8 | 0.044 kg | 46.72 €46.72 $ | |||
| 10 | 11747797129 | Vacuum hose | 3,5X2,0 | 0.038 kg | 46.72 €46.72 $ | |||
| 11 | 11657796879 | VACUUM HOSE BLUE | 3,5X2,0 | 0.040 kg | 46.72 €46.72 $ | |||
| 12 | 13532354031 | Damper, injector pipe | 0.010 kg | 4.60 €4.60 $ | ||||
| 13 | 13311738201 | Clip | D=8MM | 0.000 kg | 2.04 €2.04 $ | |||
| 14 | 12521285014 | Clamp | 0.000 kg | 2.09 €2.09 $ | ||||
| 15 | 61138368029 | Cable clamp | 0.000 kg | 1.05 €1.05 $ |
