E39 525d M57 Touring / Bodywork/ Trunk Lid Rear Window
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

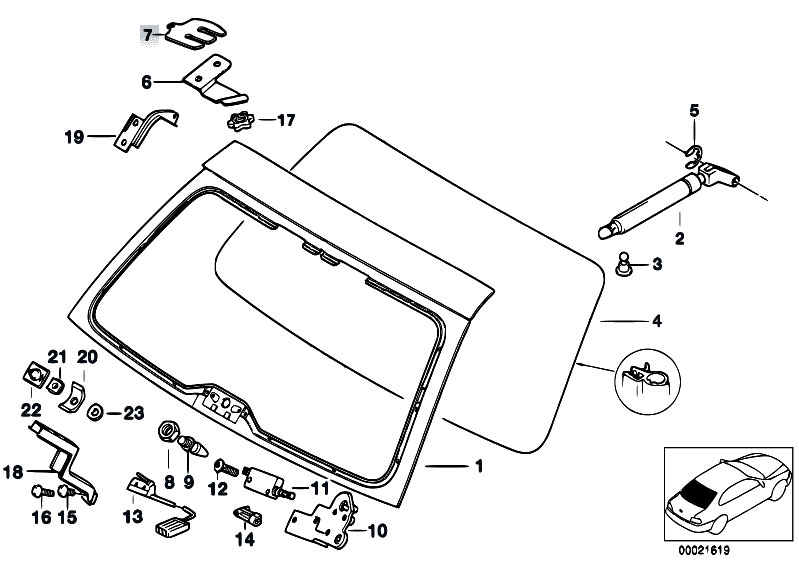

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 41628220962 | Rear window frame | 6.518 kg | 728.05 €728.05 $ | ||||
| 2 | 51248190688 | Gas pressurized spring | 560N | 0.140 kg | 62.58 €62.58 $ | |||
| 3 | 41328194670 | BALL HEAD BOLT | M16X1.5 | 0.030 kg | 9.20 €9.20 $ | |||
| 4 | 51718190689 | WEATHERSTRIP | 0.570 kg | 103.64 €103.64 $ | ||||
| 5 | 07119901421 | Circlip | 6,0 | 0.001 kg | 0.64 €0.64 $ | |||
| 6 | 51318371307 | Tubing support, left | 0.016 kg | 8.56 €8.56 $ | ||||
| 6 | 51318371308 | Tubing support, right | 0.016 kg | 8.56 €8.56 $ | ||||
| 7 | 51248219000 | Spacer | 1.0MM | 0.017 kg | 4.05 €4.05 $ | |||
| 8 | 07119901301 | Hex nut | M10X1 | 0.005 kg | 0.81 €0.81 $ | |||
| 9 | 51248238470 | Catch bracket | M10X1 | 0.035 kg | 64.15 €64.15 $ | |||
| 10 | 51248238469 | REAR WINDOW LOCK | 0.497 kg | 73.80 €73.80 $ | ||||
| 11 | 67118384069 | ACTUATOR F REAR WINDOW | 0.097 kg | 141.32 €141.32 $ | ||||
| 12 | 07129925820 | Screw for thermoplastic plastics | TS 5X12 | 0.002 kg | 0.47 €0.47 $ | |||
| 13 | 61318355127 | MICRO SWITCH REAR WINDOW LOCK | 0.016 kg | 36.93 €36.93 $ | ||||
| 14 | 51248172157 | Connection piece | 0.002 kg | 7.72 €7.72 $ | ||||
| 15 | 51238165044 | Torx-bolt with washer | ISA M6X9 | 0.010 kg | 0.35 €0.35 $ | |||
| 16 | 51238165044 | Torx-bolt with washer | ISA M6X9 | 0.010 kg | 0.35 €0.35 $ | |||
| 17 | 41628208439 | STAR-SHAPED NUT | ASA M8 | 0.010 kg | 9.22 €9.22 $ | |||
| 18 | 51248212052 | LOWER SUPPORT | 0.069 kg | 14.08 €14.08 $ | ||||
| 19 | 51248149380 | UPPER SUPPORT | 0.048 kg | 18.18 €18.18 $ | ||||
| 20 | 51248238804 | Bow | 0.034 kg | 11.68 €11.68 $ | ||||
| 21 | 51248238803 | Nut | M10X1 | 0.010 kg | 9.27 €9.27 $ | |||
| 22 | 51248239123 | Cover | 0.002 kg | 12.19 €12.19 $ |
