E39 525d M57 Touring / Engine/ Intake Manifold System Agr
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

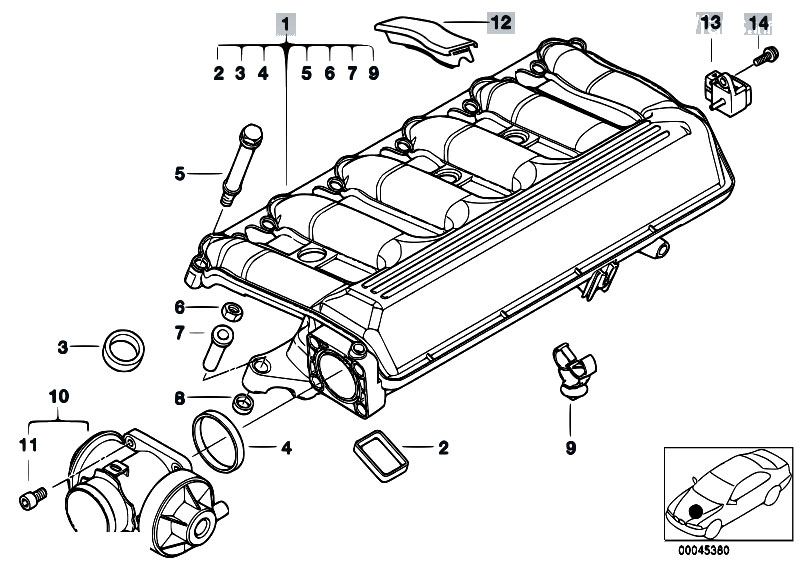

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11617792019 | Intake manifold | 3.830 kg | 1,220.52 €1,220.52 $ | ||||
| 2 | 11617790198 | Profile-gasket | 0.010 kg | 8.15 €8.15 $ | ||||
| 3 | 11612246945 | Profile-gasket | 0.000 kg | 8.15 €8.15 $ | ||||
| 4 | 11612245439 | Rubber seal | 0.010 kg | 2.95 €2.95 $ | ||||
| 5 | 11612246948 | Fastening elements | M6X42 | 0.020 kg | 8.97 €8.97 $ | |||
| 6 | 11617545279 | Flange nut | M7 | 0.010 kg | 1.11 €1.11 $ | |||
| 7 | 11612246947 | Rubber mounting | 0.010 kg | 11.62 €11.62 $ | ||||
| 8 | 11612246949 | backup ring | 0.000 kg | 10.38 €10.38 $ | ||||
| 9 | 61138380213 | Tubing support | 0.000 kg | 2.12 €2.12 $ | ||||
| 10 | 11717804378 | EGR-VALVE | 0.500 kg | 244.99 €244.99 $ | ||||
| 11 | 07119900249 | Hex Bolt with washer | M6X25-Z1-ZNS | 0.008 kg | 0.42 €0.42 $ | |||
| 12 | 11142248838 | Cover | ZYL. 1-5 | 0.019 kg | 7.62 €7.62 $ | |||
| 12 | 11142248839 | Cover | ZYL. 5-6 | 0.039 kg | 16.15 €16.15 $ | |||
| 13 | 13622246977 | FUEL INJECTION SYSTEM-RESSURE SENSOR | 240KPA | 0.030 kg | 89.69 €89.69 $ | |||
| 14 | 07119905525 | Hex Bolt with washer | M6X14-U1-8.8 | 0.006 kg | 0.67 €0.67 $ |
