E39 525d M57 Touring / Front Axle/ Front Axle Support Wishbone
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

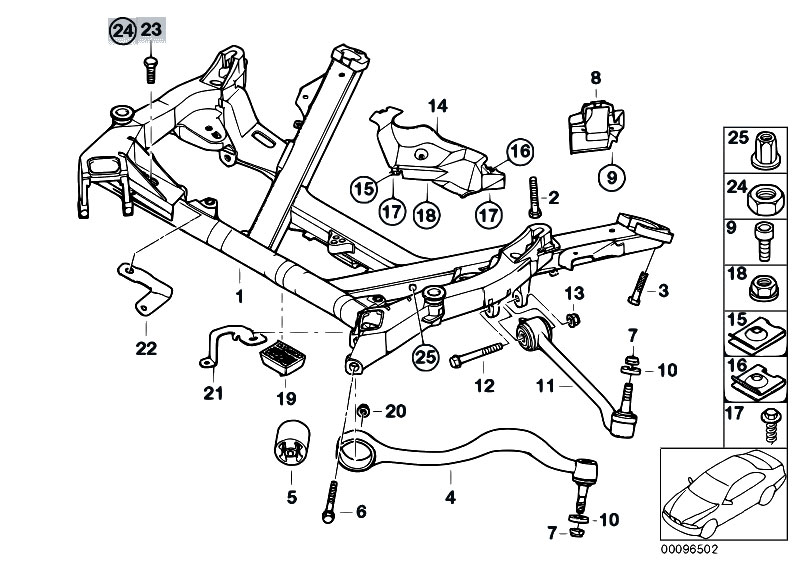

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 31111095884 | Front axle support | 10.120 kg | 1,054.82 €1,054.82 $ | ||||
| 2 | 31121092166 | Hex Bolt with washer | M12X1,5X75-8.8 | 0.080 kg | 6.07 €6.07 $ | |||
| 3 | 31121092165 | Hex Bolt with washer | M12X1,5X50-8.8 | 0.060 kg | 8.35 €8.35 $ | |||
| 4 | 31121141717 | Left tension strut without rubb.mounting | 1.070 kg | 254.79 €254.79 $ | ||||
| 4 | 31121141718 | Rght tension strut without rubb.mounting | 1.070 kg | 254.79 €254.79 $ | ||||
| 5 | 31129068753 | Set rubber mounting f pull rod | 0.557 kg | 93.63 €93.63 $ | ||||
| 6 | 31121093465 | Hex Bolt with washer | M12X1,5X120 | 0.110 kg | 2.43 €2.43 $ | |||
| 6 | 31106769441 | Hex Bolt with washer | M12X1,5X120 | 0.110 kg | 12.06 €12.06 $ | |||
| 7 | 31106769443 | Self-locking hex nut | M14X1,5 05 ZNS3 | 0.020 kg | 2.08 €2.08 $ | |||
| 8 | 31121097202 | Covering right | 0.085 kg | 12.65 €12.65 $ | ||||
| 8 | 31141093275 | Covering left | 0.085 kg | 12.65 €12.65 $ | ||||
| 9 | 34211163951 | SELF-LOCKING HEX BOLT | M6X12 | 0.010 kg | 0.65 €0.65 $ | |||
| 9 | 07119904511 | Hex Bolt with washer | M6X12-U1 | 0.010 kg | 0.47 €0.47 $ | |||
| 10 | 31121092099 | Original OEM part | 0.100 kg | 5.19 €5.19 $ | ||||
| 10 | 31106779382 | Washer | ZNS3 | 0.050 kg | 10.26 €10.26 $ | |||
| 11 | 31121094233 | Wishbone, left | 0.865 kg | 209.18 €209.18 $ | ||||
| 11 | 31121094234 | Right wishbone | 0.865 kg | 209.18 €209.18 $ | ||||
| 12 | 31121094298 | Original OEM part | 0.100 kg | 1.58 €1.58 $ | ||||
| 12 | 31306779823 | Collar screw | M12X1,5X95-10.9 | 0.100 kg | 8.18 €8.18 $ | |||
| 13 | 33326760668 | Self-locking collar nut | M12X1,5-10 ZNS3 | 0.020 kg | 1.91 €1.91 $ | |||
| 19 | 31111093712 | JACK FIXTURE | 0.067 kg | 7.54 €7.54 $ | ||||
| 20 | 33326760668 | Self-locking collar nut | M12X1,5-10 ZNS3 | 0.020 kg | 1.91 €1.91 $ |
Click on any disabled (gray) menu to maximize it.
Choose your subcategory
- Front axle suspension
- Front Axle Support Wishbone
- Front Coil Spring
