E39 525d M57 Touring / Seats/ Through Loading Facility Single Parts
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

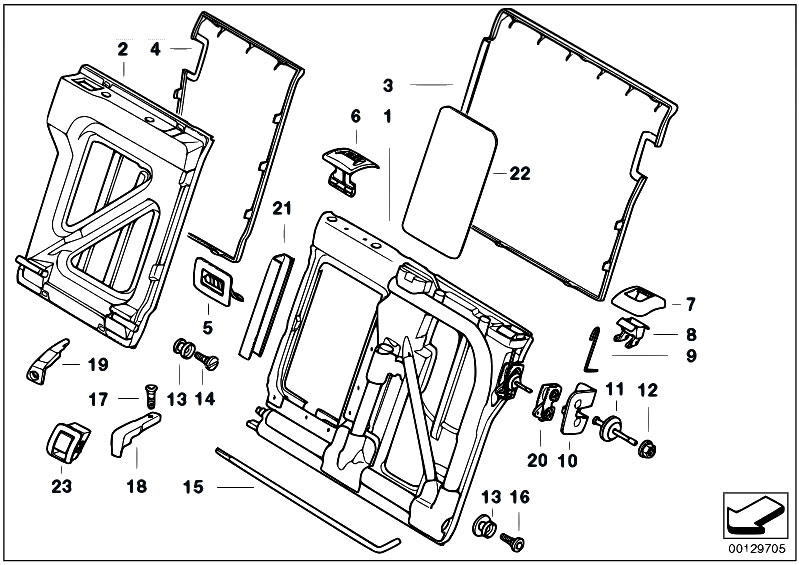

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 52208220569 | Backrest frame with belt reel, left | ANTHRAZIT,SCHW. | 10.690 kg | 337.06 €337.06 $ | |||
| 1 | 52207049211 | Backrest frame with belt reel, left | ANTHRAZIT,SCHW. | 10.540 kg | 441.65 €441.65 $ | |||
| 1 | 52208220571 | Backrest frame with belt reel, left | GRAU | 10.770 kg | 0.00 €0.00 $ | |||
| 1 | 52207049213 | Backrest frame with belt reel, left | GRAU | 10.450 kg | 326.63 €326.63 $ | |||
| 1 | 52208221193 | Backrest frame with belt reel, left | SANDBEIGE | 10.680 kg | 0.00 €0.00 $ | |||
| 1 | 52207049215 | Backrest frame with belt reel, left | SANDBEIGE | 10.540 kg | 326.63 €326.63 $ | |||
| 2 | 52208193274 | Backrest frame wihout belt reel, right | 4.585 kg | 305.76 €305.76 $ | ||||
| 3 | 52207047717 | TRIM PANEL LEFT | MARINEBLAU | 1.698 kg | 97.15 €97.15 $ | |||
| 3 | 52207047719 | TRIM PANEL LEFT | ENGLISCHGRUEN | 1.698 kg | 122.27 €122.27 $ | |||
| 3 | 52207047721 | TRIM PANEL LEFT | SANDBEIGE | 1.698 kg | 122.27 €122.27 $ | |||
| 3 | 52208216245 | TRIM PANEL LEFT | SCHWARZ | 1.698 kg | 99.79 €99.79 $ | |||
| 3 | 52207047713 | TRIM PANEL LEFT | SCHWARZ | 1.698 kg | 107.76 €107.76 $ | |||
| 3 | 52208216247 | TRIM PANEL LEFT | GRAU | 1.698 kg | 97.25 €97.25 $ | |||
| 3 | 52207047715 | TRIM PANEL LEFT | GRAU | 1.698 kg | 128.93 €128.93 $ | |||
| 3 | 52207047735 | TRIM PANEL LEFT | MARINEBLAU | 1.685 kg | 155.89 €155.89 $ | |||
| 3 | 52208216297 | TRIM PANEL LEFT | SCHWARZ | 1.685 kg | 159.71 €159.71 $ | |||
| 3 | 52207047725 | TRIM PANEL LEFT | SCHWARZ | 1.685 kg | 172.91 €172.91 $ | |||
| 3 | 52208216299 | TRIM PANEL LEFT | GRAU | 1.685 kg | 159.71 €159.71 $ | |||
| 3 | 52207047733 | TRIM PANEL LEFT | GRAU | 1.685 kg | 182.60 €182.60 $ | |||
| 3 | 52208216303 | TRIM PANEL LEFT | DKL.GRUEN | 1.685 kg | 159.71 €159.71 $ | |||
| 3 | 52207047737 | TRIM PANEL LEFT | ENGLISCHGRUEN | 1.685 kg | 196.18 €196.18 $ | |||
| 3 | 52208216305 | TRIM PANEL LEFT | SANDBEIGE | 1.685 kg | 0.00 €0.00 $ | |||
| 3 | 52207047739 | TRIM PANEL LEFT | SANDBEIGE | 1.698 kg | 155.89 €155.89 $ | |||
| 4 | 52207047714 | Trim panel, right | SCHWARZ | 0.925 kg | 102.88 €102.88 $ | |||
| 4 | 52207047716 | Trim panel, right | GRAU | 0.925 kg | 97.59 €97.59 $ | |||
| 4 | 52207047718 | Trim panel, right | MARINEBLAU | 0.000 kg | 77.53 €77.53 $ | |||
| 4 | 52207047720 | Trim panel, right | ENGLISCHGRUEN | 0.827 kg | 97.59 €97.59 $ | |||
| 4 | 52207047722 | Trim panel, right | SANDBEIGE | 0.925 kg | 77.53 €77.53 $ | |||
| 5 | 52208219756 | SKI BAG LOCKING MECHANISM | SCHWARZ | 0.018 kg | 6.47 €6.47 $ | |||
| 5 | 52208219762 | SKI BAG LOCKING MECHANISM | GRAU | 0.018 kg | 5.62 €5.62 $ | |||
| 5 | 52208219763 | SKI BAG LOCKING MECHANISM | MARINEBLAU | 0.018 kg | 5.76 €5.76 $ | |||
| 5 | 52208219764 | SKI BAG LOCKING MECHANISM | DUNKELGRUEN | 0.018 kg | 5.76 €5.76 $ | |||
| 5 | 52208219768 | SKI BAG LOCKING MECHANISM | SANDBEIGE | 0.018 kg | 6.15 €6.15 $ | |||
| 6 | 52208216275 | Cover, belt outlet | SCHWARZ | 0.050 kg | 95.76 €95.76 $ | |||
| 6 | 52208216276 | Cover, belt outlet | GRAU | 0.050 kg | 52.58 €52.58 $ | |||
| 6 | 52208216277 | Cover, belt outlet | MARINEBLAU | 0.045 kg | 5.76 €5.76 $ | |||
| 6 | 52208216278 | Cover, belt outlet | DUNKELGRUEN | 0.045 kg | 6.07 €6.07 $ | |||
| 6 | 52208216279 | Cover, belt outlet | SANDBEIGE | 0.045 kg | 6.88 €6.88 $ | |||
| 7 | 52208216265 | Covering outer left | SCHWARZ | 0.027 kg | 36.66 €36.66 $ | |||
| 7 | 52208216266 | Covering outer right | SCHWARZ | 0.027 kg | 36.66 €36.66 $ | |||
| 7 | 52208216267 | Covering outer left | GRAU | 0.027 kg | 38.03 €38.03 $ | |||
| 7 | 52208216268 | Covering outer right | GRAU | 0.027 kg | 38.03 €38.03 $ | |||
| 7 | 52208216269 | Covering outer left | MARINEBLAU | 0.027 kg | 4.35 €4.35 $ | |||
| 7 | 52208216270 | Covering outer right | MARINEBLAU | 0.027 kg | 3.93 €3.93 $ | |||
| 7 | 52208216271 | Covering outer left | DUNKELGRUEN | 0.027 kg | 4.35 €4.35 $ | |||
| 7 | 52208216272 | Covering outer right | DUNKELGRUEN | 0.027 kg | 4.35 €4.35 $ | |||
| 7 | 52208216273 | Covering outer left | SANDBEIGE | 0.027 kg | 38.03 €38.03 $ | |||
| 7 | 52208216274 | Covering outer right | SANDBEIGE | 0.027 kg | 38.03 €38.03 $ | |||
| 8 | 52208221531 | Unlocking unit | SCHWARZ | 0.060 kg | 40.80 €40.80 $ | |||
| 9 | 52208221533 | OPERATING ROD | 0.009 kg | 15.41 €15.41 $ | ||||
| 10 | 52208216255 | Lock panel, left | SCHWARZ | 0.033 kg | 36.66 €36.66 $ | |||
| 10 | 52208216256 | Lock panel, right | SCHWARZ | 0.033 kg | 36.66 €36.66 $ | |||
| 10 | 52208216257 | Lock panel, left | GRAU | 0.033 kg | 36.66 €36.66 $ | |||
| 10 | 52208216258 | Lock panel, right | GRAU | 0.033 kg | 16.83 €16.83 $ | |||
| 10 | 52208216259 | Lock panel, left | MARINEBLAU | 0.033 kg | 4.66 €4.66 $ | |||
| 10 | 52208216260 | Lock panel, right | MARINEBLAU | 0.033 kg | 4.66 €4.66 $ | |||
| 10 | 52208216261 | Lock panel, left | DUNKELGRUEN | 0.033 kg | 4.66 €4.66 $ | |||
| 10 | 52208216262 | Lock panel, right | DUNKELGRUEN | 0.033 kg | 4.35 €4.35 $ | |||
| 10 | 52208216263 | Lock panel, left | SANDBEIGE | 0.033 kg | 31.86 €31.86 $ | |||
| 10 | 52208216264 | Lock panel, right | SANDBEIGE | 0.033 kg | 31.86 €31.86 $ | |||
| 11 | 52208202674 | Screw plug | 0.248 kg | 10.20 €10.20 $ | ||||
| 12 | 07129904864 | Hex nut | AM10-8-ZNS3 | 0.010 kg | 1.59 €1.59 $ | |||
| 13 | 52208193312 | Bush bearing | 0.003 kg | 2.61 €2.61 $ | ||||
| 14 | 52208193309 | Fillister head screw | M12 | 0.055 kg | 29.53 €29.53 $ | |||
| 15 | 52208220002 | TORSION SPRING | 0.098 kg | 9.56 €9.56 $ | ||||
| 16 | 52208220767 | Fillister head screw | 0.034 kg | 2.70 €2.70 $ | ||||
| 17 | 54318103110 | Torx bolt | ISA M6X16 | 0.003 kg | 2.08 €2.08 $ | |||
| 18 | 51718200699 | Covering center | 0.115 kg | 19.94 €19.94 $ | ||||
| 19 | 51717038095 | Locking bar left | 0.033 kg | 15.53 €15.53 $ | ||||
| 19 | 51717038096 | Locking bar right | 0.033 kg | 12.88 €12.88 $ | ||||
| 20 | 52208221535 | Lock left | 0.260 kg | 78.70 €78.70 $ | ||||
| 20 | 52208221536 | Lock right | 0.219 kg | 75.31 €75.31 $ | ||||
| 21 | 52208244210 | Cover strip, rear | GRAU | 0.040 kg | 11.54 €11.54 $ | |||
| 21 | 52208244211 | Cover strip, rear | SCHWARZ | 0.040 kg | 15.31 €15.31 $ | |||
| 21 | 52208244212 | Cover strip, rear | SANDBEIGE | 0.040 kg | 11.54 €11.54 $ | |||
| 22 | 52208208418 | Covering center | SCHWARZ | 0.193 kg | 35.66 €35.66 $ | |||
| 23 | 52207053140 | Cover isofix | SCHWARZ | 0.024 kg | 19.48 €19.48 $ | |||
| 23 | 52207053141 | Cover isofix | GRAU | 0.024 kg | 19.48 €19.48 $ | |||
| 23 | 52207053142 | Cover isofix | SANDBEIGE | 0.020 kg | 19.48 €19.48 $ |
