E39 525td M51 Sedan / Engine/ Intake Manifold Supercharg Air Duct Agr
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

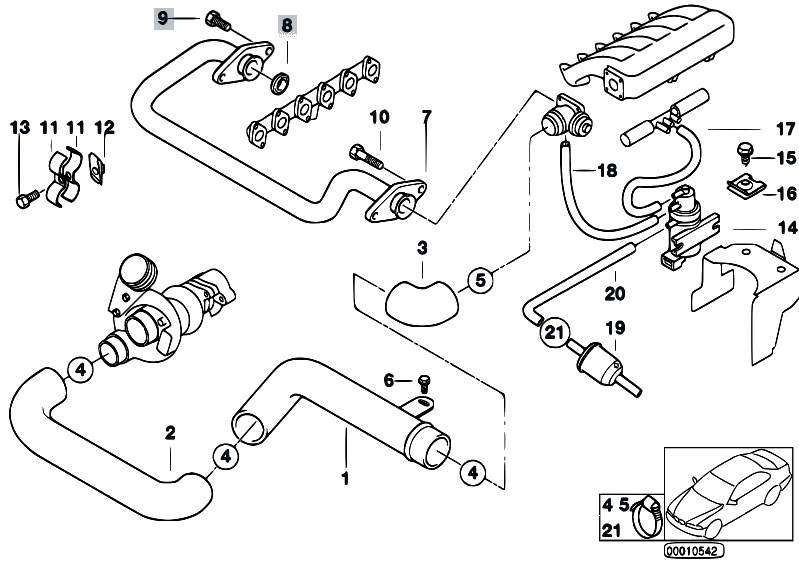

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11612246720 | Pressure pipe | 0.602 kg | 75.32 €75.32 $ | ||||
| 2 | 11612246721 | Pressure hose assy | 0.174 kg | 38.24 €38.24 $ | ||||
| 3 | 11617801549 | Pressure hose assy | 0.203 kg | 122.40 €122.40 $ | ||||
| 4 | 07129952123 | Hose clamp | L=53-60MM | 0.019 kg | 2.54 €2.54 $ | |||
| 5 | 07129952125 | Hose clamp | L59-66 | 0.020 kg | 2.76 €2.76 $ | |||
| 6 | 07119913215 | Hex Bolt with washer | M6X18-Z1 | 0.007 kg | 0.35 €0.35 $ | |||
| 7 | 11712245273 | Pipe | 0.616 kg | 148.05 €148.05 $ | ||||
| 8 | 11712246728 | AIR REDUCER | 0.016 kg | 8.12 €8.12 $ | ||||
| 9 | 11712244540 | Hex Bolt | 0.014 kg | 5.28 €5.28 $ | ||||
| 10 | 07119915117 | Hex Bolt with washer | M8X30-Z1 | 0.020 kg | 0.67 €0.67 $ | |||
| 11 | 11712245845 | Clamp | 0.036 kg | 5.87 €5.87 $ | ||||
| 12 | 11142244519 | NUT HOLDER | M6 | 0.005 kg | 3.99 €3.99 $ | |||
| 13 | 07119913215 | Hex Bolt with washer | M6X18-Z1 | 0.007 kg | 0.35 €0.35 $ | |||
| 14 | 11742246175 | PRESSURE CONVERTER | 0.210 kg | 156.49 €156.49 $ | ||||
| 15 | 07119916941 | Original OEM part | 0.100 kg | 0.11 €0.11 $ | ||||
| 16 | 07129925715 | Body nut | ST4,8-13 | 0.002 kg | 0.08 €0.08 $ | |||
| 17 | 11727545323 | VACUUM HOSE BLACK | 3,5X1,8 | 0.044 kg | 47.75 €47.75 $ | |||
| 18 | 11747797082 | VACUUM HOSE BLUE | 3,3X1,8 | 0.042 kg | 28.90 €28.90 $ | |||
| 19 | 11742246020 | AIR CLEANER | 0.010 kg | 9.77 €9.77 $ | ||||
| 20 | 11742247371 | Hose elbow | 0.006 kg | 9.88 €9.88 $ | ||||
| 21 | 16141183085 | Hose clamp | 9,4 - 11,9MM | 0.000 kg | 1.45 €1.45 $ |
