E39 540iP M62 Sedan / Rear Axle/ Rear Axle Support Wheel Suspension
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

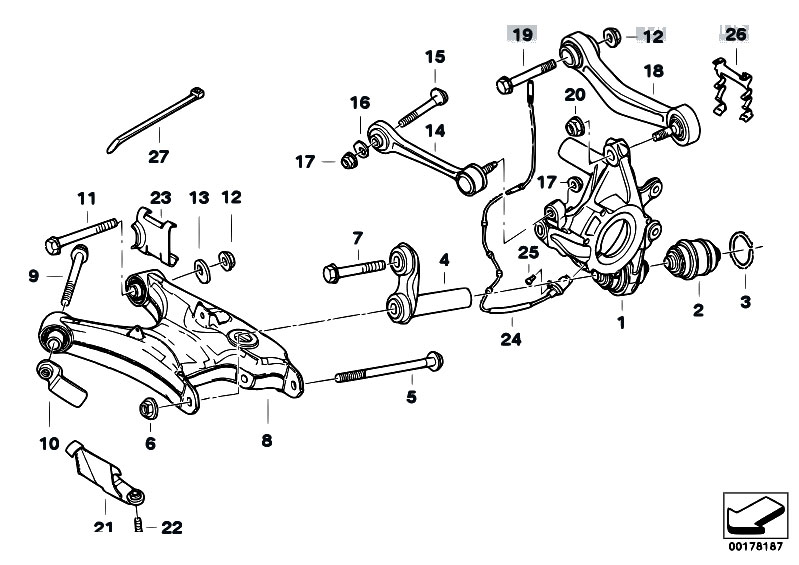

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 33321091335 | Wheel carrier, rear left | 2.400 kg | 712.21 €712.21 $ | ||||
| 1 | 33321091336 | Wheel carrier, rear right | 2.400 kg | 712.21 €712.21 $ | ||||
| 1 | 33326757315 | Wheel carrier, rear left | 2.546 kg | 712.21 €712.21 $ | ||||
| 1 | 33326757316 | Wheel carrier, rear right | 2.433 kg | 712.21 €712.21 $ | ||||
| 2 | 33326767748 | Ball joint | 0.540 kg | 87.99 €87.99 $ | ||||
| 3 | 33321091687 | Snap ring | 0.010 kg | 5.12 €5.12 $ | ||||
| 4 | 33326770749 | INTEGRAL LINK | 0.670 kg | 165.76 €165.76 $ | ||||
| 5 | 33321092870 | Hex Bolt | M16X1,5X263 | 0.413 kg | 32.59 €32.59 $ | |||
| 6 | 33326760383 | Self-locking collar nut | M16X1,5-10 ZNS3 | 0.060 kg | 10.46 €10.46 $ | |||
| 7 | 33321091583 | Hex Bolt with washer | M12X1,5X67 ZNS | 0.080 kg | 2.15 €2.15 $ | |||
| 7 | 33326763463 | Hex Bolt with washer | M12X1,5X67 ZNS3 | 0.080 kg | 8.60 €8.60 $ | |||
| 8 | 33321093713 | LEFT SWING PART | 2.900 kg | 312.52 €312.52 $ | ||||
| 8 | 33326755471 | LEFT SWING PART | 3.260 kg | 757.73 €757.73 $ | ||||
| 8 | 33321093714 | RIGHT SWING PART | 2.900 kg | 312.52 €312.52 $ | ||||
| 8 | 33326755472 | RIGHT SWING PART | 3.260 kg | 757.73 €757.73 $ | ||||
| 9 | 33321090875 | Hex Bolt with washer | M10X100 | 0.070 kg | 6.74 €6.74 $ | |||
| 10 | 33321091707 | LOCKING NUT | 0.044 kg | 11.16 €11.16 $ | ||||
| 11 | 33321095102 | ECCENTRIC BOLT | M12X1,5X98 | 0.123 kg | 19.29 €19.29 $ | |||
| 12 | 33326760668 | Self-locking collar nut | M12X1,5-10 ZNS3 | 0.020 kg | 1.91 €1.91 $ | |||
| 13 | 33321092310 | Eccentric flat washer | 0.030 kg | 2.38 €2.38 $ | ||||
| 14 | 33326768791 | Guiding suspension link | 0.360 kg | 325.86 €325.86 $ | ||||
| 14 | 33326777424 | Guiding suspension link w rubber mount | 0.360 kg | 214.00 €214.00 $ | ||||
| 15 | 33321093456 | Original OEM part | 0.100 kg | 3.73 €3.73 $ | ||||
| 15 | 33306760591 | ECCENTRIC BOLT | M10X66 ZNS3 | 0.060 kg | 12.42 €12.42 $ | |||
| 16 | 33321093455 | Original OEM part | 0.100 kg | 1.12 €1.12 $ | ||||
| 16 | 33306760592 | Eccentric flat washer | 0.010 kg | 5.03 €5.03 $ | ||||
| 17 | 33306760587 | Hex nut with flange | M10-10 ZNS3 | 0.010 kg | 1.89 €1.89 $ | |||
| 18 | 33326767831 | Wishbone, left | 0.837 kg | 434.46 €434.46 $ | ||||
| 18 | 33326767832 | Right wishbone | 0.837 kg | 434.46 €434.46 $ | ||||
| 19 | 33321091058 | Collar screw | M12X1,5X90 | 0.088 kg | 7.85 €7.85 $ | |||
| 20 | 33321092384 | Original OEM part | 0.100 kg | 2.30 €2.30 $ | ||||
| 20 | 33326760380 | Combination nut | M14X1,5-10ZNS3 | 0.040 kg | 7.33 €7.33 $ | |||
| 23 | 33321094081 | STONE-CHIP GUARD LEFT REAR | 0.044 kg | 18.21 €18.21 $ | ||||
| 23 | 33321094082 | STONE-CHIP GUARD RIGHT REAR | 0.044 kg | 18.21 €18.21 $ | ||||
| 24 | 34521182160 | Pulse generator, ABS | 0.072 kg | 345.27 €345.27 $ | ||||
| 24 | 34526756376 | Pulse generator, ABS | 0.062 kg | 345.27 €345.27 $ | ||||
| 24 | 34526756376 | Pulse generator, ABS | 0.062 kg | 345.27 €345.27 $ | ||||
| 25 | 07119901438 | Fillister head screw | M6X16-ZNS | 0.005 kg | 0.29 €0.29 $ | |||
| 26 | 33181182957 | LEFT BRACKET F PULSE GENERATOR ABS | 0.020 kg | 9.72 €9.72 $ | ||||
| 26 | 33181182958 | RIGHT BRACKET F PULSE GENERATOR ABS | 0.020 kg | 9.72 €9.72 $ | ||||
| 27 | 61131377134 | Cable strap | L=292MM/B=4,8MM | 0.000 kg | 1.15 €1.15 $ |
