E39 M5 S62 Sedan / Engine/ Timing Timing Chain Lower P
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

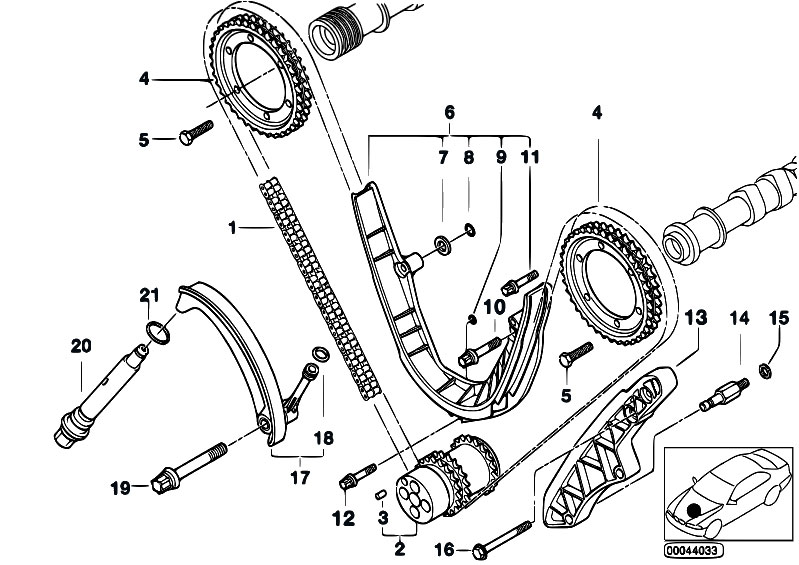

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11311407052 | TIMING CHAIN | 1.400 kg | 172.88 €172.88 $ | ||||
| 2 | 11211406201 | Sprocket | 0.898 kg | 281.23 €281.23 $ | ||||
| 3 | 11231263911 | Pin | 0.000 kg | 3.24 €3.24 $ | ||||
| 4 | 11361407581 | Sprocket | 0.370 kg | 196.28 €196.28 $ | ||||
| 5 | 07119913589 | Hex Bolt | M6X25 | 0.010 kg | 0.89 €0.89 $ | |||
| 6 | 11311406366 | DEFLECTION RAIL | 0.565 kg | 331.71 €331.71 $ | ||||
| 7 | 11311742468 | AIR REDUCER | 0.001 kg | 2.24 €2.24 $ | ||||
| 8 | 07119906363 | O-ring | 11,2X1,8 | 0.001 kg | 0.93 €0.93 $ | |||
| 9 | 11141736758 | Gasket ring | 8,1X3,5X7,7 | 0.000 kg | 3.15 €3.15 $ | |||
| 10 | 11311741808 | Torx bolt | M7X28 | 0.012 kg | 10.07 €10.07 $ | |||
| 11 | 11311731952 | Torx bolt | M6X25 | 0.009 kg | 2.23 €2.23 $ | |||
| 12 | 11311731951 | Torx bolt | M6X15 | 0.008 kg | 2.23 €2.23 $ | |||
| 13 | 11311406280 | GUIDE RAIL | 0.142 kg | 95.86 €95.86 $ | ||||
| 14 | 11311745409 | Bearing bolt | 0.030 kg | 19.81 €19.81 $ | ||||
| 15 | 07119901446 | Washer | A7,4-ZNS | 0.002 kg | 0.70 €0.70 $ | |||
| 16 | 07119913339 | Hex Bolt with washer | M6X50-Z1-ZN | 0.012 kg | 0.58 €0.58 $ | |||
| 17 | 11311407337 | CHAIN TENSIONER | 0.432 kg | 374.84 €374.84 $ | ||||
| 18 | 11421713597 | O-ring | 6,0X2,5 | 0.000 kg | 3.92 €3.92 $ | |||
| 19 | 11311741254 | Torx bolt | M10X60 | 0.043 kg | 10.07 €10.07 $ | |||
| 20 | 11311406261 | CHAIN TENSIONER | 0.124 kg | 182.91 €182.91 $ | ||||
| 21 | 07119963355 | Gasket ring | A22X27-AL | 0.000 kg | 0.43 €0.43 $ |
