E39 M5 S62 Sedan / Engine/ Vanos Cylinder Head Mounting Parts 2
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

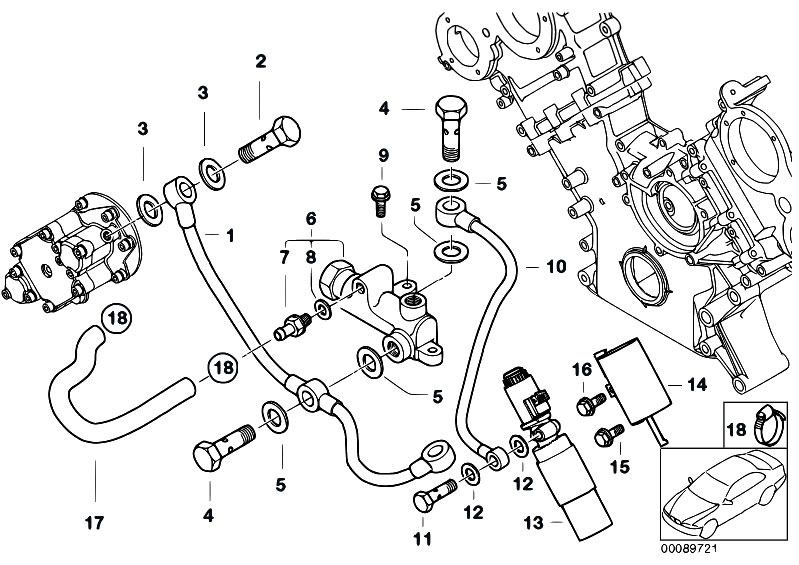

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11361407472 | Connecting line | 0.123 kg | 174.29 €174.29 $ | ||||
| 2 | 11611406703 | HOLLOW BOLT | 0.020 kg | 4.95 €4.95 $ | ||||
| 3 | 07119963072 | Gasket ring | A10X13,5-CU | 0.000 kg | 0.32 €0.32 $ | |||
| 4 | 11361407716 | HOLLOW BOLT | 0.024 kg | 12.41 €12.41 $ | ||||
| 5 | 07119963129 | Gasket ring | A12X15-CU | 0.000 kg | 0.47 €0.47 $ | |||
| 6 | 11361407486 | DISTRIBUTION PIECE | 0.250 kg | 295.26 €295.26 $ | ||||
| 7 | 11367830148 | Connector | 0.012 kg | 25.84 €25.84 $ | ||||
| 8 | 07119963042 | Gasket ring | A08X11,5-CU | 0.000 kg | 0.32 €0.32 $ | |||
| 9 | 07119901566 | Hex Bolt with washer | M6X22-Z1-ZNS | 0.007 kg | 0.43 €0.43 $ | |||
| 10 | 11367832174 | Connecting line | 0.066 kg | 74.42 €74.42 $ | ||||
| 11 | 11367832139 | HOLLOW BOLT | 0.017 kg | 13.91 €13.91 $ | ||||
| 12 | 07119963072 | Gasket ring | A10X13,5-CU | 0.000 kg | 0.32 €0.32 $ | |||
| 13 | 11367832189 | PRESSURE ACCUMULATOR | 1.332 kg | 260.37 €260.37 $ | ||||
| 14 | 11367832158 | Bracket | 0.168 kg | 22.88 €22.88 $ | ||||
| 15 | 07119900249 | Hex Bolt with washer | M6X25-Z1-ZNS | 0.008 kg | 0.42 €0.42 $ | |||
| 15 | 07119905400 | Hex Bolt with washer | M6X25-ZNNIV SI | 0.008 kg | 0.67 €0.67 $ | |||
| 16 | 07119905525 | Hex Bolt with washer | M6X14-U1-8.8 | 0.006 kg | 0.67 €0.67 $ | |||
| 17 | 11367830147 | Hose elbow | 0.030 kg | 28.03 €28.03 $ | ||||
| 18 | 07129952104 | Hose clamp | L12-15 | 0.010 kg | 1.68 €1.68 $ |
