E39 M5 S62 Sedan / Fuel Preparation System/ Throttle Housing Assembly
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

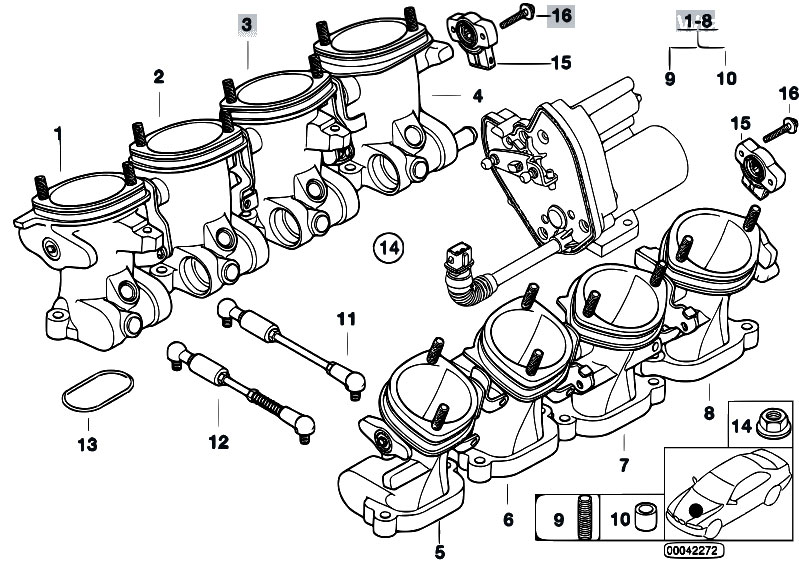

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 13547831594 | Throttle housing Assy | 0.560 kg | 647.16 €647.16 $ | ||||
| 2 | 13541407166 | Throttle housing Assy | 0.533 kg | 647.16 €647.16 $ | ||||
| 3 | 13541407167 | Throttle housing Assy | 0.565 kg | 647.16 €647.16 $ | ||||
| 4 | 13541407168 | Throttle housing Assy | 0.624 kg | 344.05 €344.05 $ | ||||
| 4 | 13547831445 | Throttle housing Assy | 0.637 kg | 647.16 €647.16 $ | ||||
| 4 | 13547831445 | Throttle housing Assy | 0.637 kg | 647.16 €647.16 $ | ||||
| 5 | 13541407169 | Throttle housing Assy | 0.542 kg | 647.16 €647.16 $ | ||||
| 6 | 13541407170 | Throttle housing Assy | 0.558 kg | 647.16 €647.16 $ | ||||
| 7 | 13541407171 | Throttle housing Assy | 0.536 kg | 647.16 €647.16 $ | ||||
| 8 | 13541407172 | Throttle housing Assy | 0.638 kg | 344.05 €344.05 $ | ||||
| 8 | 13547831595 | Throttle housing Assy | 0.646 kg | 647.16 €647.16 $ | ||||
| 8 | 13547831595 | Throttle housing Assy | 0.646 kg | 647.16 €647.16 $ | ||||
| 9 | 13541402062 | Stud bolt | M5X23 | 0.003 kg | 9.83 €9.83 $ | |||
| 10 | 11121713264 | Dowel | D=9,5MM | 0.000 kg | 10.47 €10.47 $ | |||
| 11 | 13541407960 | PULL ROD | 0.027 kg | 39.35 €39.35 $ | ||||
| 12 | 13541407396 | Pull rod adjustable | 0.028 kg | 71.66 €71.66 $ | ||||
| 13 | 13541406352 | O-ring | 0.001 kg | 4.81 €4.81 $ | ||||
| 14 | 07129902630 | Hex nut with plate | AM7 | 0.004 kg | 0.22 €0.22 $ | |||
| 14 | 07129905541 | Hex nut with plate | AM7 ZNNIV SI | 0.000 kg | 0.78 €0.78 $ | |||
| 15 | 13631402143 | THROTTLE VALVE SWITCH | 4 KOHM | 0.030 kg | 94.46 €94.46 $ | |||
| 15 | 13631402143 | THROTTLE VALVE SWITCH | 4 KOHM | 0.030 kg | 94.46 €94.46 $ | |||
| 15 | 13637840383 | THROTTLE VALVE SWITCH | 4 KOHM | 0.030 kg | 140.49 €140.49 $ | |||
| 16 | 13541726918 | Fillister head screw | M4X2,5 | 0.003 kg | 6.30 €6.30 $ |
