E39 M5 S62 Sedan / Steering/ Hydro Steering Oil Pipes
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

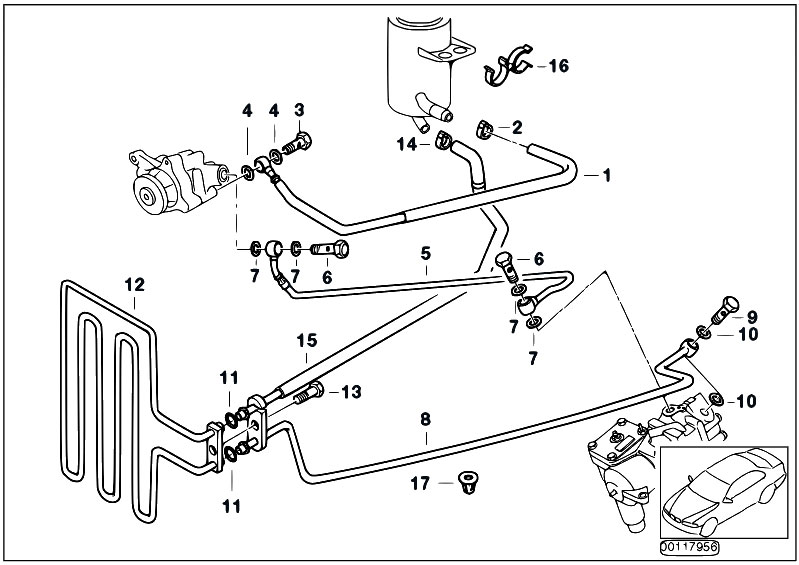

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 32412228873 | SUCTION HOSE | 0.194 kg | 170.48 €170.48 $ | ||||
| 2 | 32111131345 | Hose clamp | D=20,9-24,1 | 0.000 kg | 1.76 €1.76 $ | |||
| 5 | 32412228867 | Pressure hose assy | 0.573 kg | 284.38 €284.38 $ | ||||
| 5 | 32412229217 | Pressure hose assy | RHD | 0.570 kg | 284.38 €284.38 $ | |||
| 6 | 32411094908 | HOLLOW BOLT | M14X1,5X26 | 0.030 kg | 1.83 €1.83 $ | |||
| 6 | 32416783886 | HOLLOW BOLT | M14X1,5X26 | 0.030 kg | 5.74 €5.74 $ | |||
| 6 | 32411117182 | HOLLOW BOLT | M16X28 | 0.045 kg | 3.00 €3.00 $ | |||
| 7 | 32411093596 | Gasket ring | A14X20-CUSN | 0.002 kg | 1.39 €1.39 $ | |||
| 7 | 32411093597 | Gasket ring | A16X22-CUSN | 0.002 kg | 1.27 €1.27 $ | |||
| 8 | 32411094205 | Return pipe | 0.330 kg | 193.83 €193.83 $ | ||||
| 8 | 32412229218 | Return pipe | RHD | 0.540 kg | 297.19 €297.19 $ | |||
| 9 | 32411117182 | HOLLOW BOLT | M16X28 | 0.045 kg | 3.00 €3.00 $ | |||
| 10 | 32411093597 | Gasket ring | A16X22-CUSN | 0.002 kg | 1.27 €1.27 $ | |||
| 11 | 17211742636 | O-ring | 10,82X1,78/FPM | 0.000 kg | 1.49 €1.49 $ | |||
| 12 | 17111141819 | COOLING COIL | 0.346 kg | 127.04 €127.04 $ | ||||
| 13 | 17221703210 | Original OEM part | 0.100 kg | 0.55 €0.55 $ | ||||
| 13 | 17227555715 | LOCKING SCREW | M8X28-Z3 | 0.020 kg | 1.65 €1.65 $ | |||
| 13 | 07119915085 | Hex Bolt with washer | M8X30-Z3 | 0.014 kg | 1.06 €1.06 $ | |||
| 14 | 16121180242 | Hose clamp | D=16,6-20MM | 0.004 kg | 2.80 €2.80 $ | |||
| 15 | 32412228868 | Return pipe | 0.170 kg | 181.44 €181.44 $ | ||||
| 16 | 11722241129 | Hose clamp | 0.010 kg | 7.51 €7.51 $ | ||||
| 17 | 52531451393 | Expanding nut | 0.001 kg | 1.53 €1.53 $ |
