E46 316ti N42 Compact / Engine/ Valve Timing Gear Camshaft Inlet
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

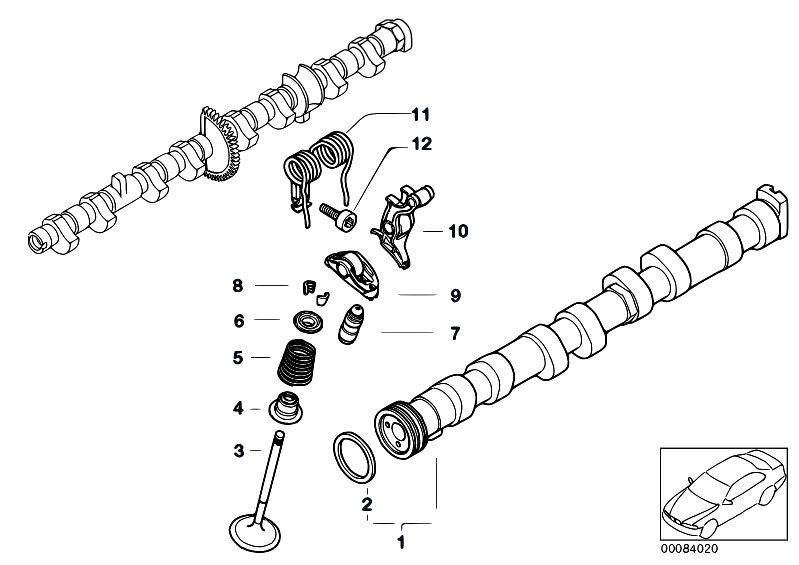

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11317507998 | Inlet camshaft | 1.540 kg | 494.32 €494.32 $ | ||||
| 1 | 11317566992 | Inlet camshaft | 1.300 kg | 1,000.78 €1,000.78 $ | ||||
| 2 | 11311705512 | Rectangring | 0.000 kg | 9.62 €9.62 $ | ||||
| 3 | 11341440304 | Intake valve | 32,0/5,975MM | 0.040 kg | 37.93 €37.93 $ | |||
| 4 | 11340029751 | Repair kit valve seal ring | 0.106 kg | 68.03 €68.03 $ | ||||
| 5 | 11347508371 | Valve spring | 0.020 kg | 18.91 €18.91 $ | ||||
| 5 | 11347556439 | Valve spring | 0.030 kg | 19.81 €19.81 $ | ||||
| 6 | 11347504271 | Upper spring plate | 0.010 kg | 9.49 €9.49 $ | ||||
| 7 | 11337512116 | Hydr.valve pushrod | 0.020 kg | 28.28 €28.28 $ | ||||
| 8 | 11341461405 | Valve collet | D=6 | 0.000 kg | 2.32 €2.32 $ | |||
| 9 | 11337509756 | Roller drag lever | "1" | 0.038 kg | 23.23 €23.23 $ | |||
| 9 | 11337548278 | Set of roller drag levers | "2B" | 0.339 kg | 177.05 €177.05 $ | |||
| 9 | 11337509757 | Roller drag lever | "2" | 0.038 kg | 0.00 €0.00 $ | |||
| 9 | 11337548278 | Set of roller drag levers | "2B" | 0.339 kg | 177.05 €177.05 $ | |||
| 9 | 11337509758 | Roller drag lever | "3" | 0.038 kg | 23.23 €23.23 $ | |||
| 9 | 11337548277 | Set of roller drag levers | "2A" | 0.339 kg | 177.32 €177.32 $ | |||
| 9 | 11337509759 | Roller drag lever | "4" | 0.038 kg | 23.84 €23.84 $ | |||
| 9 | 11337548277 | Set of roller drag levers | "2A" | 0.339 kg | 177.32 €177.32 $ | |||
| 10 | 11377516895 | Intermediate lever | "1" | 0.050 kg | 65.07 €65.07 $ | |||
| 10 | 11377514012 | Intermediate lever | "2" | 0.050 kg | 65.07 €65.07 $ | |||
| 10 | 11377514013 | Intermediate lever | "3" | 0.050 kg | 65.07 €65.07 $ | |||
| 10 | 11377514014 | Intermediate lever | "4" | 0.050 kg | 65.07 €65.07 $ | |||
| 10 | 11377514015 | Intermediate lever | "5" | 0.050 kg | 65.07 €65.07 $ | |||
| 11 | 11377513873 | RETAINER SPRING | 0.050 kg | 21.34 €21.34 $ | ||||
| 12 | 11377513874 | Isa screw | M6X16 | 0.000 kg | 0.89 €0.89 $ |
