E46 316ti N45 Compact / Engine/ Oil Pump And Compensating Shaft Unit
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

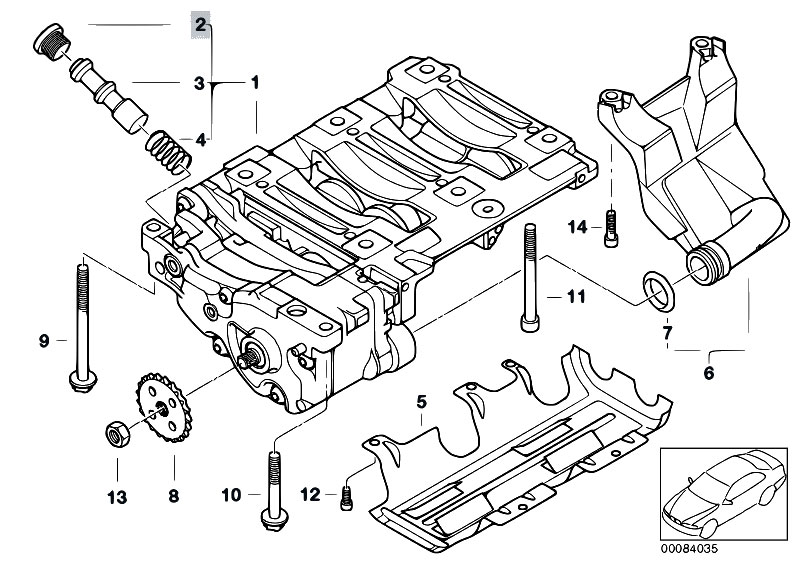

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11417559948 | Oil pump and compensating shaft unit | 6.895 kg | 876.96 €876.96 $ | ||||
| 1 | 11277594471 | Oil pump and compensating shaft unit | 6.900 kg | 1,262.03 €1,262.03 $ | ||||
| 1 | 11277536191 | Oil pump and compensating shaft unit | 6.400 kg | 847.74 €847.74 $ | ||||
| 2 | 11417507650 | Screw plug | 0.040 kg | 22.49 €22.49 $ | ||||
| 3 | 11417507648 | CONTROL VALVE | 0.016 kg | 23.68 €23.68 $ | ||||
| 4 | 11417507755 | COIL SPRING | 0.010 kg | 14.03 €14.03 $ | ||||
| 6 | 11417500328 | Suction pipe | 0.170 kg | 66.66 €66.66 $ | ||||
| 7 | 11417507756 | O-ring | 22,2X3,15 | 0.001 kg | 4.92 €4.92 $ | |||
| 8 | 11317507551 | Sprocket | 0.060 kg | 28.92 €28.92 $ | ||||
| 9 | 11277505696 | Torx bolt | M8X100 | 0.040 kg | 6.57 €6.57 $ | |||
| 10 | 11277505697 | Torx bolt | M8X55 | 0.020 kg | 3.49 €3.49 $ | |||
| 11 | 11277504379 | Torx bolt | M8X83 | 0.030 kg | 3.15 €3.15 $ | |||
| 13 | 11417506378 | Hex nut | M10X1-LH | 0.010 kg | 1.80 €1.80 $ | |||
| 14 | 11277510115 | Inner hex bolt | M6X22 | 0.008 kg | 0.35 €0.35 $ | |||
| 14 | 07129905061 | Isa screw | M6X20-U1-8.8 PH | 0.006 kg | 1.40 €1.40 $ |
