E46 320d M47 Touring / Rear Axle/ Rear Axle Carrier
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

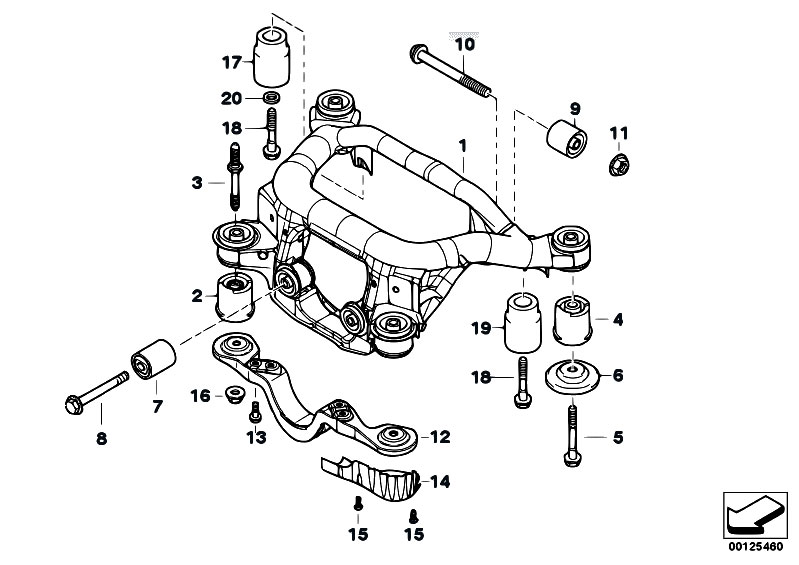

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 33316770830 | REAR AXLE CARRIER | 13.750 kg | 889.30 €889.30 $ | ||||
| 2 | 33316770783 | RUBBER MOUNTING front left | 0.310 kg | 46.79 €46.79 $ | ||||
| 2 | 33316770784 | RUBBER MOUNTING front right | 0.300 kg | 46.79 €46.79 $ | ||||
| 3 | 33311094383 | Original OEM part | 0.100 kg | 3.31 €3.31 $ | ||||
| 3 | 33326760360 | Threaded bolt | M12X1,5 ZNS3 | 0.010 kg | 11.02 €11.02 $ | |||
| 4 | 33316770781 | RUBBER MOUNTING rear | 0.310 kg | 56.34 €56.34 $ | ||||
| 5 | 33321094476 | REDUCED-SHAFT BOLT | M12X1,5X116-8.8 | 0.110 kg | 1.96 €1.96 $ | |||
| 5 | 33326760361 | REDUCED-SHAFT BOLT | M12X1,5X116-8.8 | 0.110 kg | 9.46 €9.46 $ | |||
| 6 | 33316751426 | Stopper, rear | 0.100 kg | 1.20 €1.20 $ | ||||
| 6 | 33306779486 | Stopper, rear | 0.110 kg | 19.86 €19.86 $ | ||||
| 7 | 33176770768 | Rubber mounting front | 0.100 kg | 23.06 €23.06 $ | ||||
| 7 | 33176770788 | Rubber mounting front | 0.100 kg | 23.06 €23.06 $ | ||||
| 8 | 33176750780 | Hex Bolt with washer | M12X1,5X80 ZNS | 0.090 kg | 1.27 €1.27 $ | |||
| 8 | 33176760337 | Hex Bolt with washer | M12X1,5X80 ZNS3 | 0.080 kg | 7.47 €7.47 $ | |||
| 9 | 33176751808 | RUBBER MOUNTING rear | 0.450 kg | 65.89 €65.89 $ | ||||
| 10 | 33171094392 | Hex Bolt with washer | M14X1,5X133 ZNS | 0.210 kg | 16.45 €16.45 $ | |||
| 10 | 33176760336 | Hex Bolt with washer | M14X1,5X133ZNS3 | 0.210 kg | 14.62 €14.62 $ | |||
| 11 | 33306760349 | Self-locking collar nut | M14X1,5-10 ZNS3 | 0.040 kg | 3.84 €3.84 $ | |||
| 12 | 33321095990 | PUSH ROD | 1.047 kg | 33.52 €33.52 $ | ||||
| 13 | 33311093957 | Hex Bolt with washer | M8X20,5-8.8 | 0.020 kg | 0.50 €0.50 $ | |||
| 13 | 33326760345 | Hex Bolt with washer | M8X20,5-8.8ZNS3 | 0.020 kg | 8.62 €8.62 $ | |||
| 14 | 33311094399 | Heat resistant plate | 0.064 kg | 9.56 €9.56 $ | ||||
| 15 | 33316760589 | Screw, self tapping | M6X13 ZNS3 | 0.000 kg | 1.70 €1.70 $ | |||
| 16 | 33321093103 | Original OEM part | 0.100 kg | 1.37 €1.37 $ | ||||
| 16 | 33326760374 | Self-locking collar nut | M12X1,5-10 ZNS3 | 0.030 kg | 5.92 €5.92 $ | |||
| 17 | 33311092256 | Vibration absorber | BLAU | 1.610 kg | 123.46 €123.46 $ | |||
| 18 | 33321094603 | Original OEM part | 0.100 kg | 1.50 €1.50 $ | ||||
| 18 | 33326760389 | Collar screw | M12X1,5X70-10.9 | 0.080 kg | 9.99 €9.99 $ | |||
| 19 | 33107513902 | Vibration absorber | 1.316 kg | 123.46 €123.46 $ |
