E46 320i M54 Touring / Rear Axle/ Differential Drive Output
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

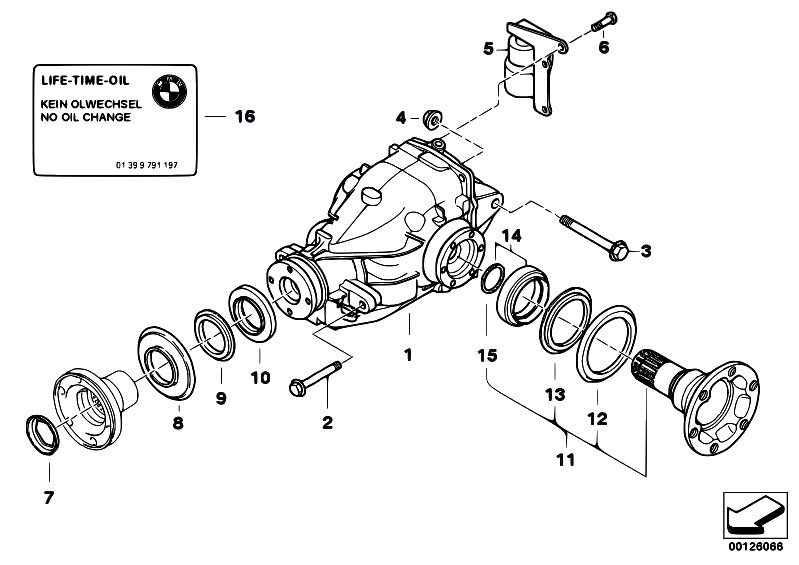

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 33107509780 | Rmfd final drive | I=3,38 | 30.700 kg | 2,273.85 €2,273.85 $ | |||
| 1 | 33107559330 | Rmfd final drive | I=3,38 | 25.290 kg | 2,012.26 €2,012.26 $ | |||
| 1 | 33107533140 | Rmfd final drive | I=3,91 | 26.290 kg | 2,248.16 €2,248.16 $ | |||
| 2 | 33176750780 | Hex Bolt with washer | M12X1,5X80 ZNS | 0.090 kg | 1.27 €1.27 $ | |||
| 2 | 33176760337 | Hex Bolt with washer | M12X1,5X80 ZNS3 | 0.080 kg | 7.47 €7.47 $ | |||
| 3 | 33171094392 | Hex Bolt with washer | M14X1,5X133 ZNS | 0.210 kg | 16.45 €16.45 $ | |||
| 3 | 33176760336 | Hex Bolt with washer | M14X1,5X133ZNS3 | 0.210 kg | 14.62 €14.62 $ | |||
| 4 | 31121092110 | Original OEM part | 0.100 kg | 0.82 €0.82 $ | ||||
| 4 | 33306760349 | Self-locking collar nut | M14X1,5-10 ZNS3 | 0.040 kg | 3.84 €3.84 $ | |||
| 5 | 33107513896 | Vibration absorber with bracket | 1.539 kg | 123.46 €123.46 $ | ||||
| 6 | 07119902902 | Hex Bolt | M10X30-8.8-ZNS3 | 0.025 kg | 1.03 €1.03 $ | |||
| 7 | 23211490120 | Securing plate | 0.010 kg | 3.61 €3.61 $ | ||||
| 8 | 33121213903 | Dustcover plate | 0.040 kg | 6.89 €6.89 $ | ||||
| 8 | 33127523289 | dustcover plate, large | 0.040 kg | 31.56 €31.56 $ | ||||
| 9 | 33121428159 | dustcover plate, small | 0.020 kg | 13.88 €13.88 $ | ||||
| 10 | 33101214099 | Shaft seal | 45X75X10 | 0.040 kg | 12.02 €12.02 $ | |||
| 10 | 33121214080 | Shaft seal | 45X65X10 | 0.020 kg | 27.16 €27.16 $ | |||
| 11 | 33131428249 | Drive flange output | LK=80MM/M8 | 0.970 kg | 102.67 €102.67 $ | |||
| 11 | 33131428269 | Drive flange output | LK=80MM/M8 | 0.970 kg | 79.50 €79.50 $ | |||
| 12 | 33131428097 | dustcover plate, large | 0.040 kg | 44.06 €44.06 $ | ||||
| 12 | 33131428161 | dustcover plate, large | 0.050 kg | 13.66 €13.66 $ | ||||
| 13 | 33131214298 | dustcover plate, small | 0.030 kg | 13.88 €13.88 $ | ||||
| 13 | 33131428162 | dustcover plate, small | 0.030 kg | 13.88 €13.88 $ | ||||
| 14 | 33107505604 | Shaft seal with lock ring | 90X44X10 | 0.063 kg | 16.06 €16.06 $ | |||
| 14 | 33107505603 | Shaft seal with lock ring | 78X44X10 | 0.044 kg | 15.61 €15.61 $ | |||
| 15 | 33131214961 | Lock Ring | 168K/L 188K/L | 0.000 kg | 1.30 €1.30 $ | |||
| 16 | 01399791197 | Stick-on label | DE, EN | 0.009 kg | 3.62 €3.62 $ |
