E46 320td M47N Compact / Engine/ Intake Manifold Supercharg Air Duct
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

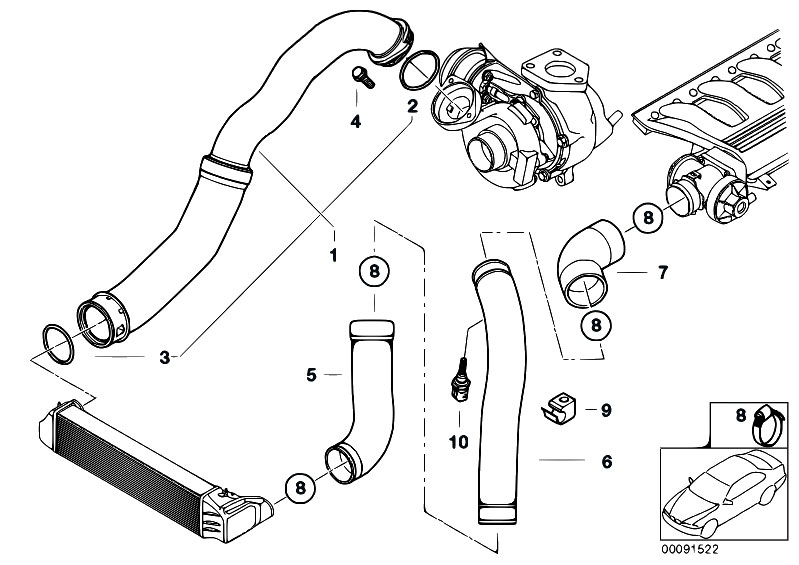

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11617786865 | Charge air line | 0.660 kg | 209.02 €209.02 $ | ||||
| 2 | 11617801206 | Pre-formed seal | 0.030 kg | 13.43 €13.43 $ | ||||
| 3 | 11617788415 | Preformed seal | 0.000 kg | 21.50 €21.50 $ | ||||
| 4 | 07119900251 | Hex Bolt with washer | M6X18-Z1-ZNS | 0.006 kg | 0.20 €0.20 $ | |||
| 4 | 11617788358 | Fillister head screw | M6X16 | 0.010 kg | 3.95 €3.95 $ | |||
| 5 | 11617799394 | Pressure hose assy | 0.295 kg | 154.50 €154.50 $ | ||||
| 6 | 11617788307 | Charge air tube | 0.357 kg | 206.90 €206.90 $ | ||||
| 7 | 11617799393 | Pressure hose assy | 0.198 kg | 154.50 €154.50 $ | ||||
| 8 | 11617786527 | Hose clamp | D= 59-68MM | 0.040 kg | 9.10 €9.10 $ | |||
| 9 | 11617788406 | Cable holder | 0.000 kg | 5.96 €5.96 $ | ||||
| 10 | 11613449116 | Temperature sensor air | 0.020 kg | 87.92 €87.92 $ |
