E46 330Ci M54 Cabrio / Bodywork/ Folding Top Compartment Lid
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

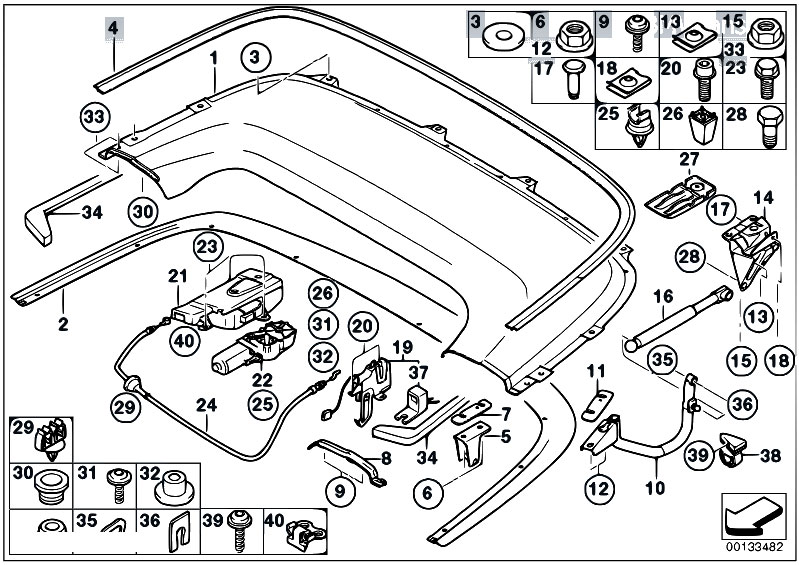

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 51178227297 | Folding top compartment lid | SCHWARZ | 5.230 kg | 745.56 €745.56 $ | |||
| 1 | 51178227298 | Folding top compartment lid | TITANGRAU | 5.230 kg | 745.56 €745.56 $ | |||
| 1 | 51178227299 | Folding top compartment lid | HELLBEIGE 2 | 5.230 kg | 745.56 €745.56 $ | |||
| 2 | 51177025698 | Cover, folding top comp.lid, aerial | GRUNDIERT | 1.450 kg | 367.18 €367.18 $ | |||
| 2 | 51170009771 | Cover, folding top comp.lid, aerial | CODE- UNI/MET. | 0.000 kg | 431.74 €431.74 $ | |||
| 3 | 11411280950 | Stopper | 0.001 kg | 2.24 €2.24 $ | ||||
| 3 | 51177003230 | Washer | CHROM | 0.000 kg | 8.96 €8.96 $ | |||
| 3 | 51177029277 | Spacer bush | 0.001 kg | 3.31 €3.31 $ | ||||
| 4 | 51177010325 | Moulding, folding top lid | CHROM | 0.600 kg | 403.30 €403.30 $ | |||
| 4 | 51177894361 | Moulding, folding top lid | HOCHGLANZ SW | 0.610 kg | 428.73 €428.73 $ | |||
| 4 | 51178244277 | Moulding, folding top lid | SCHWARZ | 0.620 kg | 163.87 €163.87 $ | |||
| 5 | 51258244281 | Striker boot lid, bottom | 0.110 kg | 36.94 €36.94 $ | ||||
| 6 | 07129900644 | Hex nut with plate | AM8-ZNS | 0.007 kg | 0.31 €0.31 $ | |||
| 6 | 07129904862 | Hex nut with plate | M8-ZNS3 | 0.010 kg | 1.56 €1.56 $ | |||
| 7 | 51178260239 | Base | D=1MM | 0.004 kg | 2.72 €2.72 $ | |||
| 8 | 51178233303 | Cover, folding top flap, left | SCHWARZ | 0.022 kg | 29.05 €29.05 $ | |||
| 8 | 51178233304 | Cover, folding top flap, right | SCHWARZ | 0.022 kg | 31.63 €31.63 $ | |||
| 8 | 51178245853 | Cover, folding top flap, left | TITANGRAU | 0.022 kg | 85.75 €85.75 $ | |||
| 8 | 51178245854 | Cover, folding top flap, right | TITANGRAU | 0.022 kg | 112.94 €112.94 $ | |||
| 8 | 51178245855 | Cover, folding top flap, left | HELLBEIGE | 0.022 kg | 22.90 €22.90 $ | |||
| 8 | 51178245856 | Cover, folding top flap, right | HELLBEIGE | 0.022 kg | 22.90 €22.90 $ | |||
| 9 | 51177016393 | Torx bolt for aluminium | ST 5X12 | 0.004 kg | 3.22 €3.22 $ | |||
| 10 | 41638244279 | LEFT FOLDING TOP FLAP HINGE | 0.660 kg | 73.30 €73.30 $ | ||||
| 10 | 41638244280 | RIGHT FOLDING TOP FLAP HINGE | 0.608 kg | 58.38 €58.38 $ | ||||
| 11 | 51177000813 | Pad, hinge | D=1MM | 0.007 kg | 8.16 €8.16 $ | |||
| 12 | 07129900644 | Hex nut with plate | AM8-ZNS | 0.007 kg | 0.31 €0.31 $ | |||
| 12 | 07129904862 | Hex nut with plate | M8-ZNS3 | 0.010 kg | 1.56 €1.56 $ | |||
| 13 | 07129934925 | Clamp | A12 | 0.003 kg | 2.51 €2.51 $ | |||
| 14 | 51178239239 | Bracket, hydraulic cylinder, left | 0.648 kg | 74.80 €74.80 $ | ||||
| 14 | 51178239240 | Bracket, hydraulic cylinder, right | 0.652 kg | 74.80 €74.80 $ | ||||
| 15 | 07129900644 | Hex nut with plate | AM8-ZNS | 0.007 kg | 0.31 €0.31 $ | |||
| 15 | 07129904862 | Hex nut with plate | M8-ZNS3 | 0.010 kg | 1.56 €1.56 $ | |||
| 16 | 51258227897 | Gas pressurized spring | 320N | 0.162 kg | 65.81 €65.81 $ | |||
| 17 | 51178236957 | Mount, hydraulic zylinder | 0.016 kg | 8.14 €8.14 $ | ||||
| 18 | 51231864963 | Securing plate | 0.002 kg | 1.15 €1.15 $ | ||||
| 19 | 51258248313 | Lock f folding top flap left | 0.440 kg | 128.88 €128.88 $ | ||||
| 19 | 51258248314 | Lock f folding top flap right | 0.440 kg | 128.32 €128.32 $ | ||||
| 20 | 07119901913 | Fillister head with washer | M6X16-Z1 SW | 0.006 kg | 0.89 €0.89 $ | |||
| 21 | 51258248308 | Drive unit, folding top flap | 1.583 kg | 484.56 €484.56 $ | ||||
| 22 | 67618380036 | FOLDING TOP FLAP DRIVE | 0.429 kg | 572.92 €572.92 $ | ||||
| 23 | 07119900251 | Hex Bolt with washer | M6X18-Z1-ZNS | 0.006 kg | 0.20 €0.20 $ | |||
| 24 | 51258227907 | Bowden cable, folding top flap | 0.130 kg | 44.82 €44.82 $ | ||||
| 25 | 62212306608 | Clip | 0.001 kg | 1.73 €1.73 $ | ||||
| 26 | 51178242624 | Stop buffer | 0.036 kg | 14.33 €14.33 $ | ||||
| 27 | 51178262458 | Covering cap | 0.008 kg | 6.95 €6.95 $ | ||||
| 28 | 61331372671 | Hex Bolt | M8X16 | 0.016 kg | 1.92 €1.92 $ | |||
| 29 | 33181181218 | Cable holder | 0.000 kg | 4.18 €4.18 $ | ||||
| 30 | 51177002801 | Stop buffer | 0.000 kg | 2.72 €2.72 $ | ||||
| 31 | 51177016394 | Torx bolt for aluminium | ST 8X20 | 0.010 kg | 4.70 €4.70 $ | |||
| 32 | 51177016945 | Bump stop | 0.012 kg | 11.50 €11.50 $ | ||||
| 33 | 51177020492 | Hex nut with plate | M6 | 0.000 kg | 2.70 €2.70 $ | |||
| 34 | 51718227910 | Sealing, folding top flap | 0.680 kg | 241.88 €241.88 $ | ||||
| 35 | 24511421929 | WAVE WASHER | 0.000 kg | 2.53 €2.53 $ | ||||
| 36 | 07129934925 | Clamp | A12 | 0.003 kg | 2.51 €2.51 $ | |||
| 37 | 61318378940 | Switch | 0.008 kg | 40.82 €40.82 $ | ||||
| 38 | 51177020048 | Stop buffer | 0.028 kg | 12.08 €12.08 $ | ||||
| 39 | 16136750648 | screw for plastic | TS5X12-ZNS | 0.000 kg | 0.42 €0.42 $ | |||
| 40 | 51257134550 | Clip f Bowden cable | 0.001 kg | 2.11 €2.11 $ |
